The modern hoffman kiln for clay brick has the following advantages:
1.low investment,low influence to environment,high capacity.
2.We can put adobes or green bricks directly into the hoffman kiln
so that we do not need to invest on the tunnel kiln.
3.The brick production will not be influenced by weather condition any more.
A Hoffman kiln consists of a main fire passage surrounded on each side by several small rooms. Each room contains a pallet of bricks. In the main fire passage there is a fire wagon that holds a fire that burns continuously. Each room is fired for a specific time, until the bricks are vitrified properly, and thereafter the fire wagon is rolled to the next room to be fired.
Each room is connected to the next room by a passageway carrying hot gases from the fire. In this way, the hottest gases are directed into the room that is currently being fired. Then the gases pass into the adjacent room that is scheduled to be fired next. There the gases preheat the brick. As the gases pass through the kiln circuit, they gradually cool as they transfer heat to the brick as it is preheated and dried. This is essentially a counter-current heat exchanger, which makes for a very efficient use of heat and fuel.

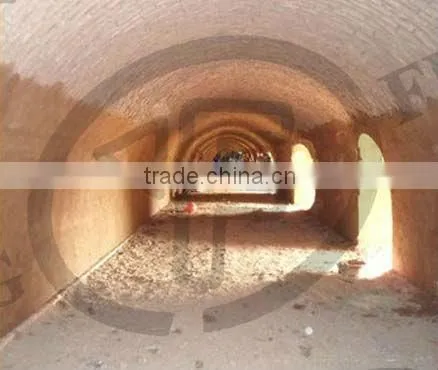

Inside of Hoffman kiln
Outside of hoffman kiln
Our Running brick production video link
JZ300 Non-vacuum clay brick producing line:
http://youtu.be/sjg7GsfcYfk
JKR30 Vacuum clay brick production line with brick separator:
http://youtu.be/TBgEnsWOGyM
JKRL35 Vacuum brick production line with unloader and brick loading cars:
http://youtu.be/IQtzh_pjcxA
JKR40 Vacuum Clay block making machine:
http://youtu.be/jZmoW49xtF8 http://youtu.be/qOCe79N43ns
JKRL45 Vacuum Clay brick production line with auto brick loading cars:
http://youtu.be/3DCR2rR_wYA
JZK50 Vacuum Clay brick producing line with dryer and hoffman kiln:
http://youtu.be/h-m4Vnq8v3c
JKY60 Auto brick production line with tunnel kiln and dryer:
http://youtu.be/8R_XzKkDySU
Contact us:
China Mobile Number ( Whatsapp, Wechat ,Viber): 0086 18638712391
or 008615039963315
Email: kai(at) skype: fanchen588
Web:
How to visit us or check clay brick making machine quality
If you want to visit our Chinese factory, please note our city name, Zhengzhou city.
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
You can also visit our brick plant in your local places
