Deublin Rotating Union TC/C 2"-12 Machined RH 555-033-399144

Deublin Rotating Union TC/C 2"-12 Machined RH 555-033-399144 thumbnail-1
Deublin Rotating Union TC/C 2"-12 Machined RH 555-033-399144 photo-1
US$ 135 - 165 MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Alloy
Technics:
Casting
Type:
Coupling
Contact Supplier Request Quote Chat Now
Suzhou Benign Intelligent Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Alloy
Technics Casting
Type Coupling
Place of Origin American Samoa
Model Number 555-033-399144
Brand Name DEUBLIN
Connection Male
Shape Equal
Head Code Hexagon
Product Description



Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power.



Rotary Joints and Rotary Unions allow the feed through of water, glycol, air, hydraulic, coolant, MQL, hot oil, steam, vacuum and a variety of other media. Rotary Joints and Rotary Unions that can be configured for installation at the end of a shaft or around-the-shaft.

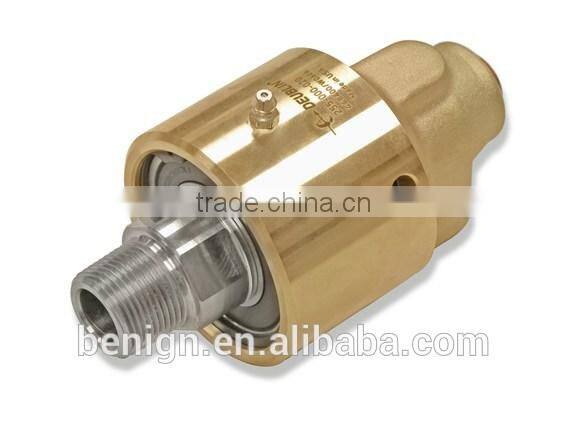

Deublin Rotating Union TC/C 2"-12 Machined RH 555-033-399144

Deublin Rotating Union TC/C 2"-12 Machined RH 555-033-399144
Item #: 555-033-399144
Rotor: 2"-12 Machined RH
  • Duoflow design
  • Self-supported rotating union
  • Radial housing connection
  • Balanced mechanical seal
  • 3 vent holes
  • Forged brass housing
  • Stainless steel rotor
  • Special options: threaded vent holes, low torque design

    Seal Combinations
  • Carbon Graphite/Bronze for water - Standard
  • Carbon Graphite/Ceramic for hot oil, hot water and saturated steam - Optional
  • Multi-purpose applications Seal Combination - E.L.S.: Tungsten Carbide/Ceramic for severe conditions (poor water quality), max. temperature 200°F
Specifications



Duo Flow Elbow Type   Rotating Supply Pipe
Duoflow Elbow Pipe Dia   1
Duoflow Elbow Pipe Size   0.75
Elbow Hose Thread Size O   3/4"
Hose Connection   NPT
Housing Connection   Radial
Housing Hose Thread Size B   1 1/2"
Media   Hot Oil, Water, Water Glycol
Passages   Two Passages
Rotor Description   2"-12 Machined RH
Rotor Thread Direction   RH
Rotor Thread Size A   2"-12
Rotor Type   Threaded
Seal Combination   Unfiltered Media Seals (E.L.S.)
Union Size   1 1/2"

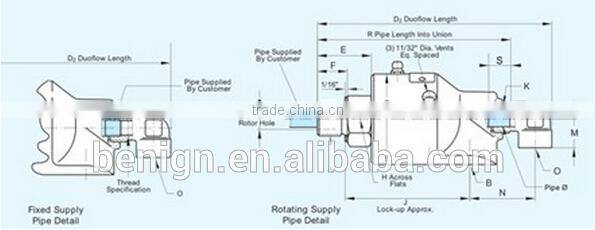

Dimensions

Deublin Rotating Union TC/C 2"-12 Machined RH 555-033-399144



A Rotor Thread   2"-12
B Port   1 1/2"
C   108 MM
D2   272 MM
E   71 MM
F   29 MM
G   38 MM
H   54 MM
J   148 MM
K-NPT   11/4"
M   38 MM
N   78 MM
O Port   3/4"
R   236 MM
S   44 MM



Operating Data



Hot Oil Pressure   7 BAR
Hot Oil Temp   121 C
Max Speed   2500 /MIN
Steam Pressure   1 BAR
Steam Temp   121 C
Torque Rating   3.39 Nm
Water Glycol Pressure   52 BAR
Water Glycol Temp   121 C
Water Pressure   52 BAR
Water Temp   121 C



Company Information



Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.

Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)

Website: http://benign.en.china.cn



Contact Mr. Benign Chen

Department: Director/CEO/General Manager

Job Title: General Manager

Telephone: 86-0512-62890289

Mobile Phone: 18020285375

Fax: 86-0512-62890289

Zip: 215000

Packaging & Shipping



Thick Carton Box

Small Size(2-4 pcs per box)

35mm*20mm*20mm

Medium Size( 5-10 pcs per box)

45mm*30mm*25mm

Large Size( more than 10pcs per box)

60mm*40mm*25mm



Shipping

EMS, TNT, UPS, FEDEX Courier for small quantity.

Ocean transport for large quantity.

Our Services



Warranty: 1 year from the day of shipment.
