Curtis AC induction motor controllers provide OEMs with an unbeatable combination of power, performance and functionality. They are very reliable and well proven in counterbalance trucks, warehouse trucks, tow tractors and many different types of electric vehicle worldwide.

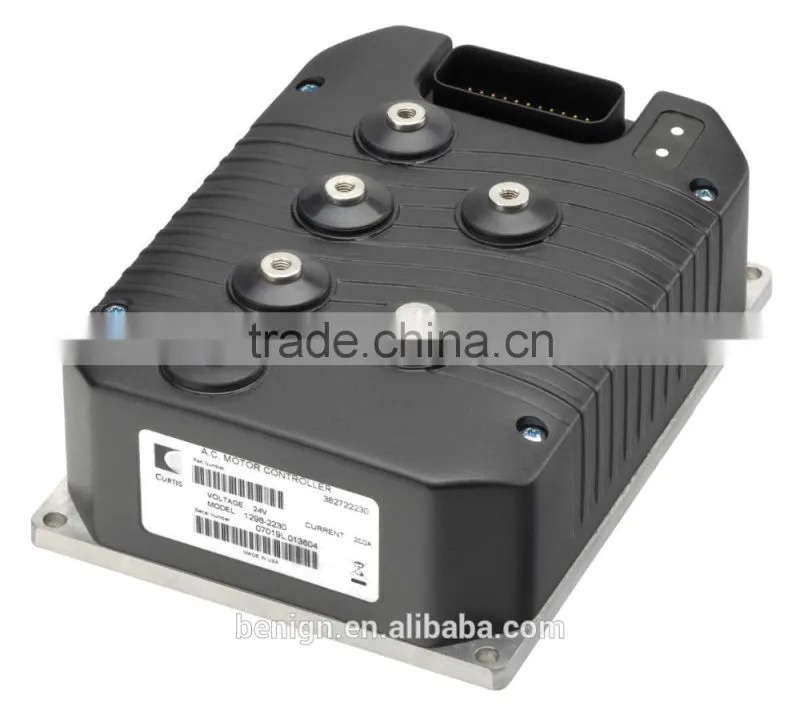

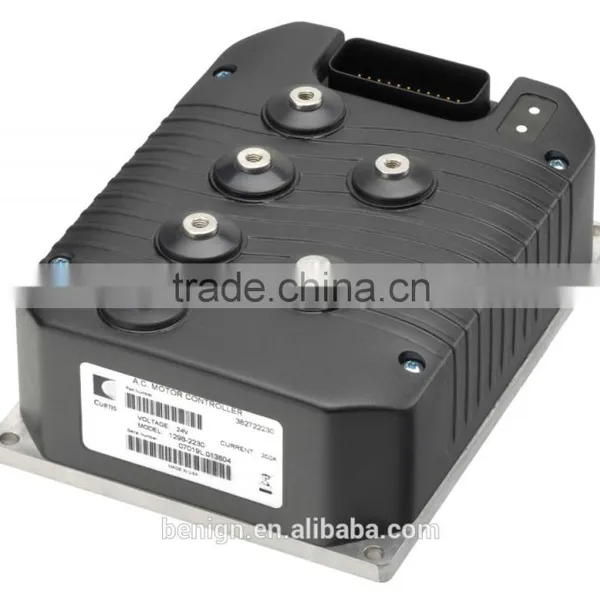

The Curtis Model 1298 combines advanced control of AC induction traction motors with solid state DC hydraulic pump and proportional valve control. It offers vehicle developers a highly cost-effective combination of power and functionality in a very compact integrated package.
Designed primarily for use on medium to large materialhandling vehicles such as counterbalance or warehouse trucks. The Model 1236E is equally suitable for industrial utility vehicles. The larger Model 1238E is also intended for use on all heavy-duty applications such as Tow Tractors and Airport Ground Support Equipment (GSE).
1298
| Application | Combined AC traction and DC pump |
| Nom. Volt. Range [VDC] | 24 - 24 |
| Current (2 min) [A] | 250 - 300 |
| Control Type | Speed or Torque |
| Control Method | IFO vector |
| VCL | Yes |
| CANbus | Yes |
| Auto Tuning | Yes |
| Dual Drive | Yes |
| IP Rating | IP 65 |

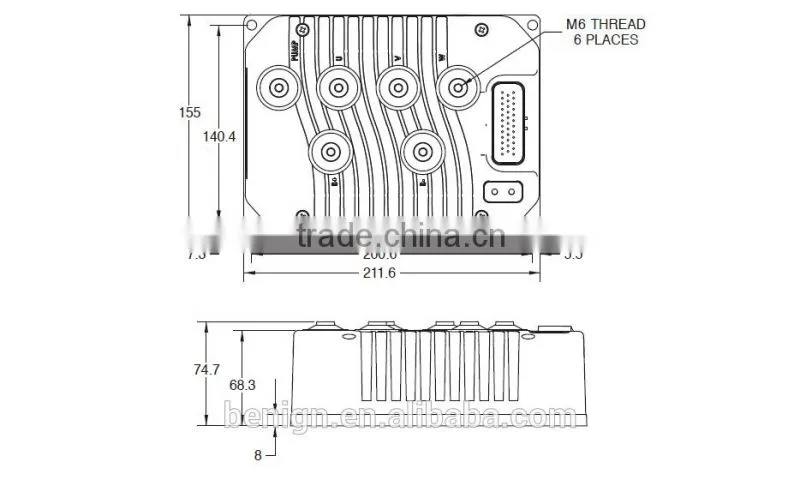

Unit: mm
Model |
Battery Voltage (V) |
2 Min RMS Current Rating (A) |
2 Min RMS Traction Power Rating (kVA) |
2 Min Pump Current Rating (A DC) |
1298-22XX |
24 |
250 |
7.2 |
300 |
1298-23XX |
24 |
300 |
8.6 |
350 |

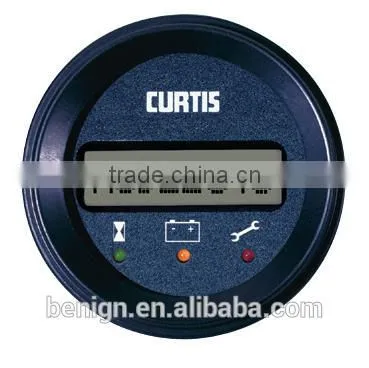

The Curtis Model 840 LCD Multifunction display contains 8 large, easy to read characters to provide display of battery discharge (BDI), hour meter and error messages. Built-in backlight is also available.

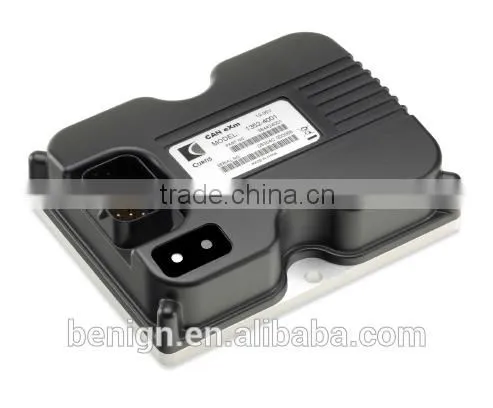

The Curtis model 1352 CANbus I/O expansion module features 9 I/O pins, including 6 proportional valve drivers. This module can be used to further expand the I/O capability of Curtis AC motor controllers using VCL.
The Curtis Model 1313 Handheld Programmer is ideal for setting parameters and performing diagnostic functions.
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website: https://img13.fr-trading.com
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Warranty: Two year limited warranty from time of delivery.
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity. Ocean transport for large quantity.
