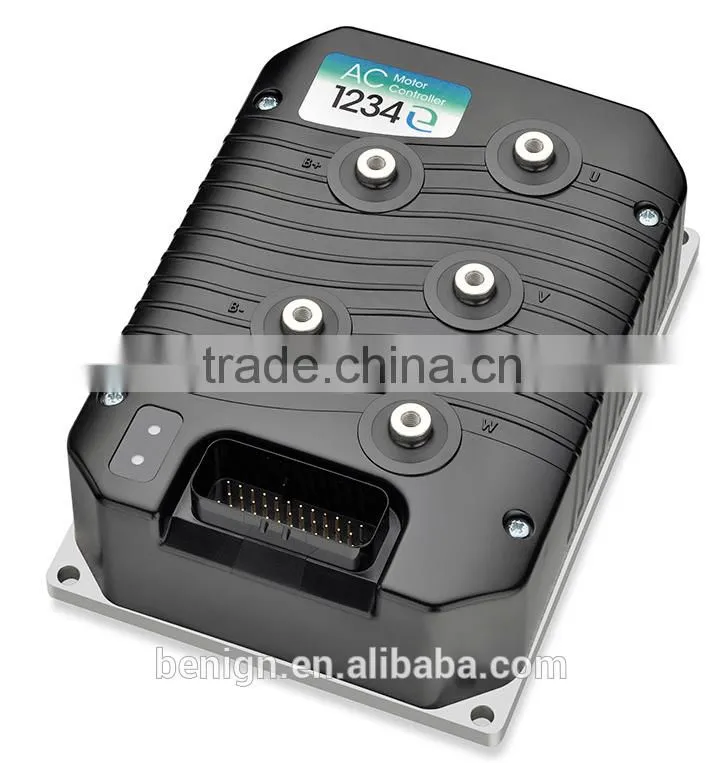

Help CenterCurtis AC Motor Controller Model 1234E Series for Handling Vehicles Warehouse Trucks and Other Industrial Vehicles
Related Products
-
Curtis AC Motor Controller Model 1232E Series for Material Handling 'walkies' and Other Small Industrial TrucksMotor ControllerUS$ 50 - 100MOQ: 1 Piece -
Curtis AC Induction Motor Controller 1222 for Reach Trucks Order Pickers Stackers 'man Up' Warehouse TrucksUS$ 50 - 100MOQ: 1 Piece
-
Low Lifts, Stackers, Personnel Carriers With Curtis PMC Model 1244 Programmable SepEx Motor ControllersUS$ 50 - 90MOQ: 1 Piece
-
Low Lifts, Stackers, Personnel Carriers With Curtis PMC Model 1243 Programmable SepEx Motor ControllersUS$ 50 - 90MOQ: 1 Piece
-
Heavy-duty Golf/utility Vehicles With Curtis PMC Model 1268 Programmable SepEx Motor ControllersUS$ 50 - 90MOQ: 1 Piece
Curtis AC induction motor controllers provide OEMs with an unbeatable combination of power, performance and functionality. They are very reliable and well proven in counterbalance trucks, warehouse trucks, tow tractors and many different types of electric vehicle worldwide.
The Curtis model 1234E provides advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties, and offers the highest levels of functional safety.
The Curtis Model 1234E is intended for use as the traction or hydraulic pump motor controller on a wide variety of material handling vehicles, warehouse trucks and other industrial vehicles.
1234E
| Application | Traction or pump |
| Nom. Volt. Range [VDC] | 24 - 80 |
| Current (2 min) [A] | 250 - 350 |
| Control Type | Speed or Torque |
| Control Method | IFO vector |
| VCL | Yes |
| CANbus | Yes |
| Auto Tuning | Yes |
| Dual Drive | Yes |
| IP Rating | IP 65 |

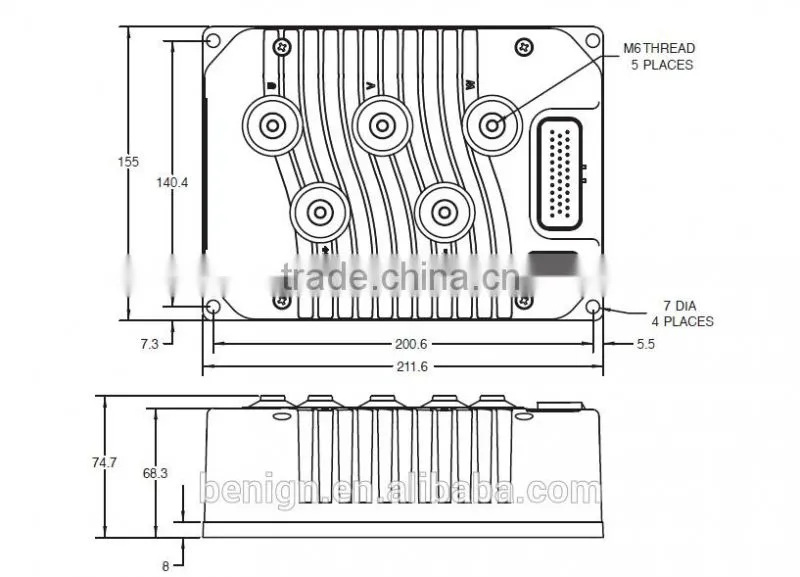

Unit: mm
Model |
Nominal Battery Voltage (V) |
2 Min RMS Current Rating (A) |
S2–60 Min RMS Current Rating (A) |
1234E-23XX |
24 |
350 |
175 |
1234E-52XX |
36-48 |
275 |
140 |
1234E-53XX |
36-48 |
350 |
175 |
1234E-62XX |
48-80 |
250 |
110 |
A significant enhancement to the Curtis AC family, the ‘E’ models utilize a powerful dual-microprocessor logic architecture to cross-check critical circuits, I/O logic and software functions. The ‘E’ models ensure the highest possible functional safety performance level is achieved and provide full compliance with the relevant requirements of EN1175-1:1998+A1:2010 and EN (ISO) 13849-1:2009.
Other new features of the ‘E’ models include:
- Enhanced 64MHz microprocessors improve motor control capabilities and provides 2-3 times the VCL execution speed.
- Additional FLASH memory doubles the available VCL code space
- Six additional VCL-configurable CAN 'mailboxes' significantly increases CAN master capabilities.
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website: https://img13.fr-trading.com
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Warranty: Two year limited warranty from time of delivery.
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity. Ocean transport for large quantity.
