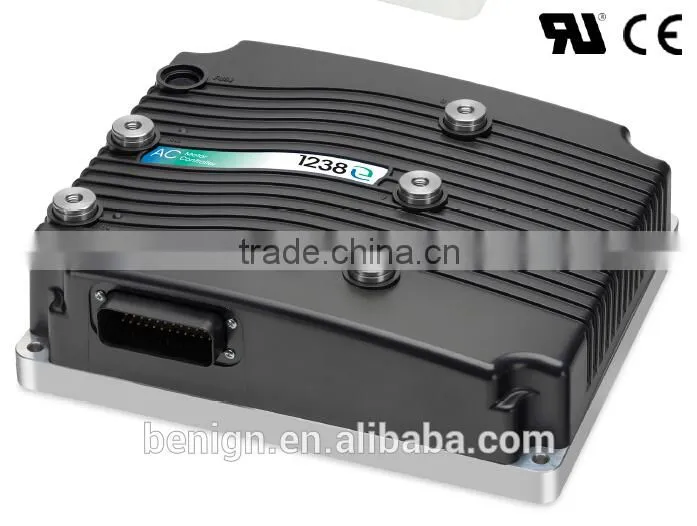

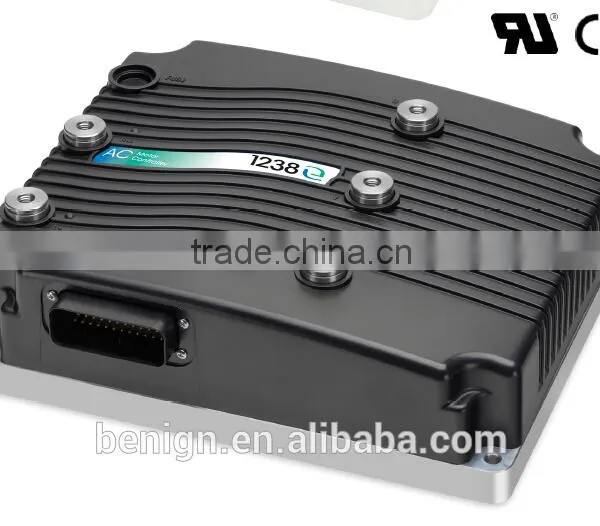

Help CenterCurtis AC Motor Controller Model 1238E Series for Counterbalance or Warehouse Trucks Tow Tractors Motor Controller
Related Products
-
Curtis AC Motor Controller Model 1236E Series for Medium to Large Material Handling Vehicles New Motor ControllerUS$ 50 - 100MOQ: 1 Piece -
Curtis AC Motor Controller Model 1234E Series for Handling Vehicles Warehouse Trucks and Other Industrial VehiclesUS$ 50 - 100MOQ: 1 Piece
-
Curtis AC Motor Controller Model 1232E Series for Material Handling 'walkies' and Other Small Industrial TrucksMotor ControllerUS$ 50 - 100MOQ: 1 Piece
-
Curtis AC Induction Motor Controller 1222 for Reach Trucks Order Pickers Stackers 'man Up' Warehouse TrucksUS$ 50 - 100MOQ: 1 Piece
-
Low Lifts, Stackers, Personnel Carriers With Curtis PMC Model 1244 Programmable SepEx Motor ControllersUS$ 50 - 90MOQ: 1 Piece
Curtis AC induction motor controllers provide OEMs with an unbeatable combination of power, performance and functionality. They are very reliable and well proven in counterbalance trucks, warehouse trucks, tow tractors and many different types of electric vehicle worldwide.
Curtis Models 1238E provide advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties. They offer vehicle developers a highly cost-effective combination of power, performance and functionality.
Designed primarily for use on medium to large materialhandling vehicles such as counterbalance or warehouse trucks. The Model 1236E is equally suitable for industrial utility vehicles. The larger Model 1238E is also intended for use on all heavy-duty applications such as Tow Tractors and Airport Ground Support Equipment (GSE).
1238E
| Application | Traction or pump |
| Nom. Volt. Range [VDC] | 24 - 96 |
| Current (2 min) [A] | 550 - 800 |
| Control Type | Speed or Torque |
| Control Method | IFO vector |
| VCL | Yes |
| CANbus | Yes |
| Auto Tuning | Yes |
| Dual Drive | Yes |
| IP Rating | IP 65 |

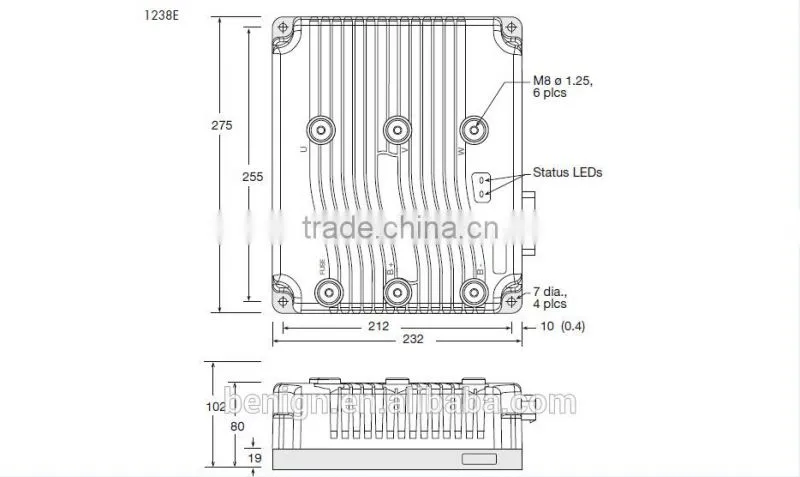

Unit: mm
Model |
Nominal Battery Voltage (V) |
2 Min RMS Current Rating (A) |
S2–60 Min RMS Current Rating (A) |
1238E-46XX |
24–36 |
650 |
300 |
1238E-48XX |
24–36 |
800 |
355 |
1238E-56XX |
36–48 |
650 |
295 |
1238E-64XX |
48–80 |
450 |
155 |
1238E-65XX |
48–80 |
550 |
190 |
1238E-66XX |
48–80 |
650 (1min) |
195 |
1238E-75XX |
72–96 |
550 |
175 |
1238E-76XX |
72–96 |
650 |
200 |
Curtis/Albright offers a full line of UL recognized DC contactors engineered for outstanding performance and durability on in-vehicle applications.
The Curtis Model 1222 is an AC induction motor controller for ‘steer by wire’ electric power steering systems and is the ideal partner for the 1236E/1238E on vehicles such as reach trucks, order pickers, stackers and other similar industrial vehicles.
The Curtis Acuity Battery Monitoring system is a device that mounts directly to the vehicle battery. It measures, records and transmits battery performance data over the vehicle’s CAN network throughout the battery’s life.
Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.
Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)
Website: https://img13.fr-trading.com
Contact Mr. Benign Chen
Department: Director/CEO/General Manager
Job Title: General Manager
Telephone: 86-0512-62890289
Mobile Phone: 18020285375
Fax: 86-0512-62890289
Zip: 215000
Warranty: Two year limited warranty from time of delivery.
Shipping
EMS, TNT, UPS, FEDEX Courier for small quantity. Ocean transport for large quantity.
