Curtis Series Controllers are available in a wide range of models, from simple analog controllers to sophisticated, microprocessor based controllers with CANbus communications and comprehensive diagnostics.
The Curtis Model 1216 is a highly cost-effective hydraulic pump controller for use with series wound DC motors. It provides exceptional value for on-vehicle hydraulic pump motor applications such as scissor lifts and other types of mobile elevating work platforms.
The Curtis Model 1216 provides exceptional value for on-vehicle hydraulic pump motor applications such as scissor lifts and other types of mobile elevating work platforms.
1216
| Vehicle Type | Mobile Elevated Work Platforms |
| Application | Hydraulic Pump |
| Max Voltage [VDC] | 24 |
| Armature Current (2 min) [A] | 300 - 360 |
| Plug Braking | No |
| Programmable Parameters | Yes |
| Line Contactor Driver | No |
| CANbus | No |
| IP Rating | IP 65 |

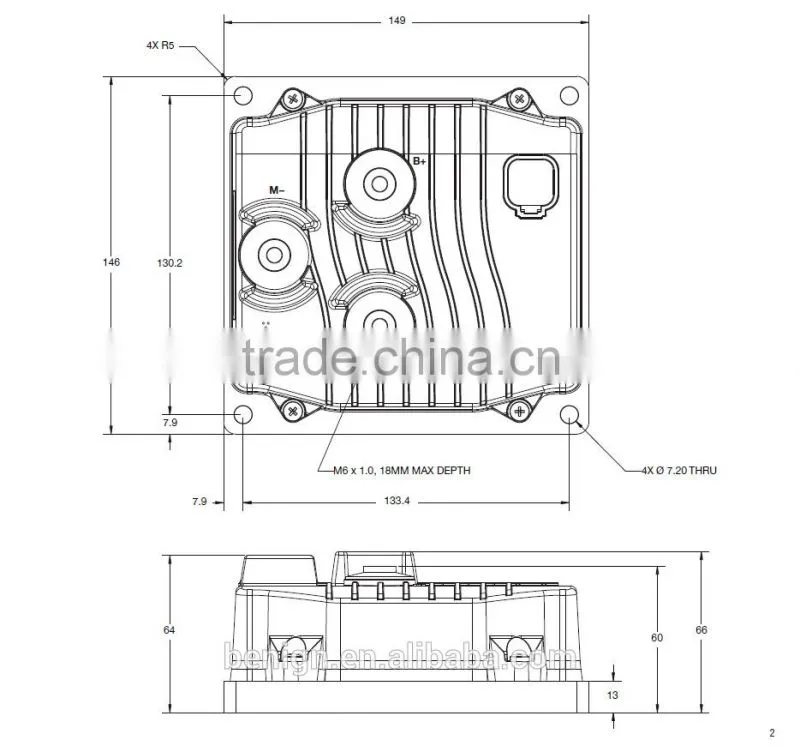

Unit: mm
Model |
Battery Voltage (V) |
2 Min Current (A) |
1 Hour Current (A) |
1216-2351 |
24 |
300 |
200 |
1216-2356 |
24 |
360 |
250 |
––Nominal voltage: 24V (current cutback below 12V).
–– Throttle active range: 0.6V to 4.5V (fault condition above 6V).
–– Throttle dead-band: 0V to 0.6V.
–– Throttle input impedance: 14.3k Ω.
–– KSI active range: 12V to 32V (under-over voltage faults).
–– KSI input impedance: 1.2k Ω.
––One minute timer for maximum current.
–– Current cutback above 85 C.
The Curtis enGage® II is a dual function, microprocessor based instrument that can be factory or user defined to monitor various functions including fuel, temperature, pressure, voltage, battery state of charge and maintenance/status.
Curtis Albright DC contactors and emergency disconnects are available in a wide range of ratings to suit most industrial electric vehicle applications.
Curtis Model SB beacons are a range of highly reliable multivoltage LED and xenon warning beacons that are suitable for wide
variety of industrial applications.
