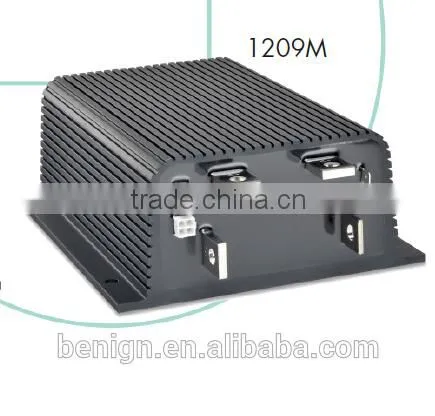

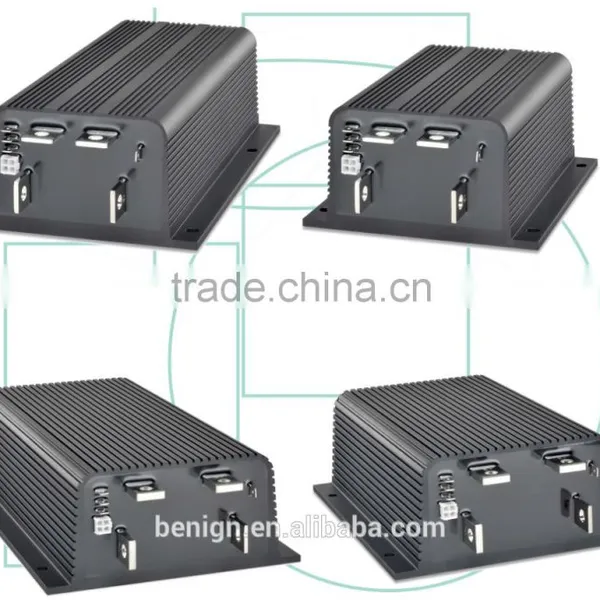

Help CenterCurtis Model 1209M Programmable Controllers 36V/48V/72V for Industrial Trucks, Golf and Utility Vehicles Series Motor Controller
Related Products
-
Curtis Model 1205M Programmable Controllers 36V/48V/60V for Industrial Trucks, Golf and Utility Vehicles Series Motor ControllerUS$ 50 - 90MOQ: 1 Piece -
Curtis Model 1204M Programmable Controllers 24V/36V/48V for Industrial Trucks, Golf and Utility Vehicles Series Motor ControllerUS$ 50 - 90MOQ: 1 Piece
-
Curtis PMC Model 1268 Programmable Controllers for Heavy-duty Golf/utility Vehicles SepEx Motor ControllerUS$ 50 - 90MOQ: 1 Piece
-
Curtis Model 1266 A/R Programmable Controllers for Golf, Utility, or Light On-road Vehicles SepEx Motor ControllerUS$ 50 - 90MOQ: 1 Piece
-
Curtis PMC Model 1244 Programmable Controllers for Low Lifts, Stackers, Personnel Carriers SepEx Motor ControllerUS$ 50 - 90MOQ: 1 Piece
Curtis Series Controllers are available in a wide range of models, from simple analog controllers to sophisticated, microprocessor based controllers with CANbus communications and comprehensive diagnostics.
Curtis Models 1209M provide fully programmable control of DC series motors performing on-vehicle traction or pump duties. These microprocessor-based MOSFET controllers add flexibility and versatility to the time-proven Curtis series motor controller family.
Primarily designed for battery-powered vehicle applications using either electric or hydrostatic traction. These include industrial trucks, personnel carriers, mobile elevating work platforms, and golf and utility vehicles.
1209M
| Vehicle Type | Utility |
| Application | Traction or Pump |
| Max Voltage [VDC] | 72 |
| Armature Current (2 min) [A] | 275 - 450 |
| Plug Braking | Option |
| Programmable Parameters | Yes |
| Line Contactor Driver | Option |
| CANbus | No |
| IP Rating | IP 65 |

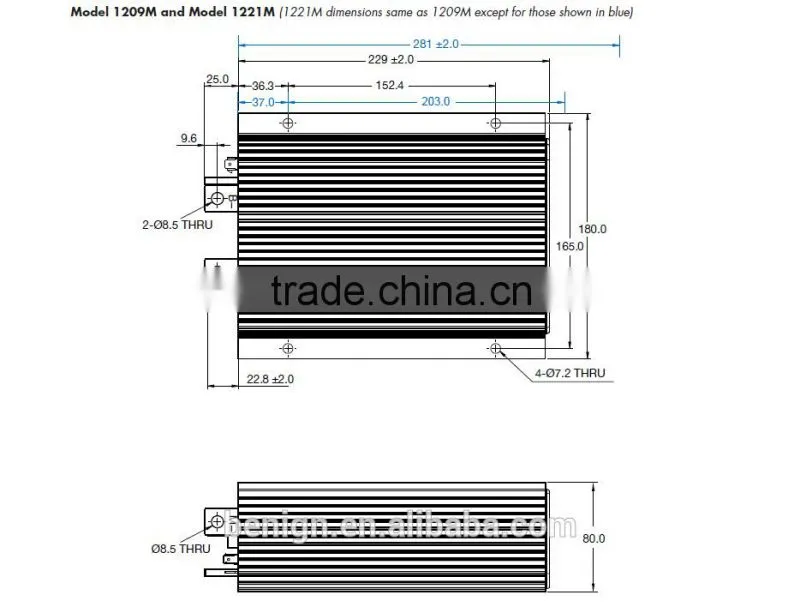

Unit: mm
Model |
Voltage (V) |
Current Limit(A) 5 Sec Boost 2 Min 1 Hour |
||
1209M-55XX |
36/48 |
495 |
450 |
200 |
1209M-64XX |
48/72 |
440 |
400 |
175 |
