Curtis Series Controllers are available in a wide range of models, from simple analog controllers to sophisticated, microprocessor based controllers with CANbus communications and comprehensive diagnostics.

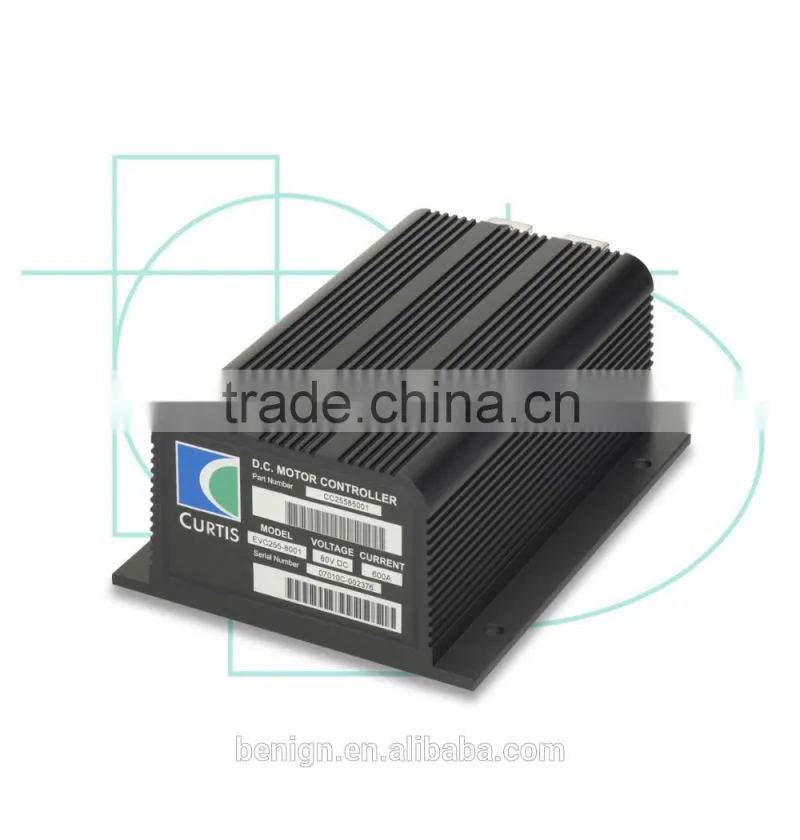

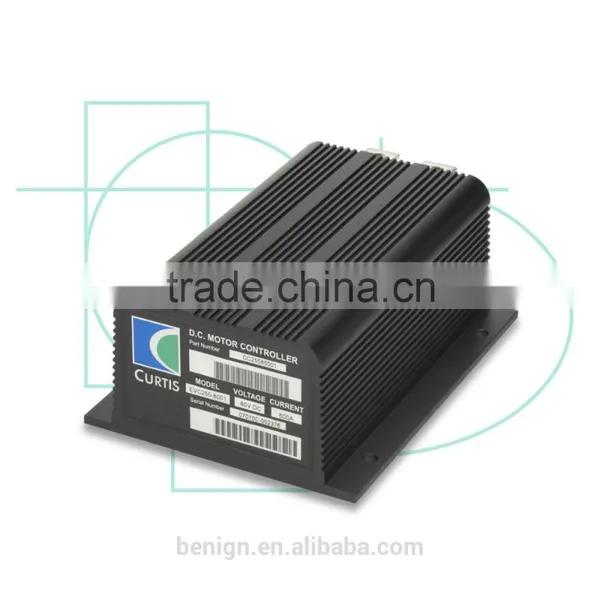

Model 1253 is a high-power hydraulic pump controller which provides both digital input and analog throttle based control of DC series wound motors. It features microprocessor based logic with programmable parameters and offers maximum flexibility for minimum cost.
The Curtis 1253 Series Motor Speed Controller is designed as an affordable solution for solid-state control of DC motor driven hydraulic pumps. Systems integration features are designed primarily for Class I and Class II material handling vehicles.
1253
| Vehicle Type | Material Handling |
| Application | Pump |
| Max Voltage [VDC] | 80 |
| Armature Current (2 min) [A] | 600 |
| Plug Braking | No |
| Programmable Parameters | Yes |
| Line Contactor Driver | Yes |
| CANbus | No |
| IP Rating | IP 54 |
Model |
Nominal Voltage (V) |
Current Rating 2 Minutes (Amperes) |
1253-48XX |
48 |
600 |
1253-80XX |
80 |
600 |
