Curtis CAN & Serial Instrumentation - Programmable model 840 for use in material handling vehicles

CAN and Serial Communication instruments from Curtis display vehicle data and fault information. These gauges connect directly to Curtis controllers and I/O modules, easily, seamlessly and conveniently.

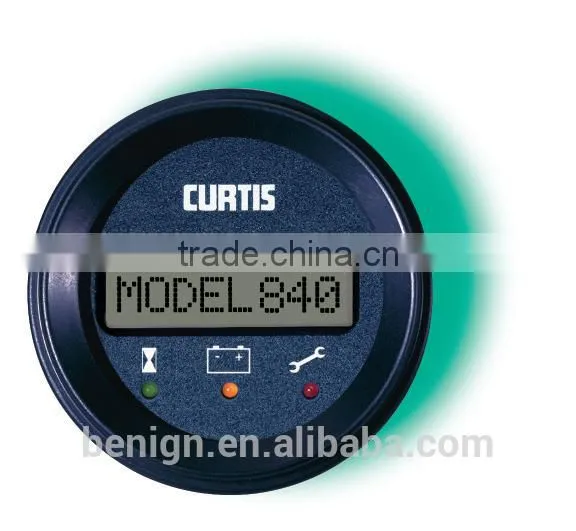

Curtis model 840 displays various system parameters, such as battery state-of charge, operating hours or maintenance status from a Curtis motor controller or other serial communication source.

840

Curtis Model 840 is ideal for use in material handling vehicles such as pallet trucks, walkies, stackers and order pickers.

• Available with “Spy” or CANopen communication protocols allows use with broad range of controllers.

• Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle.

• Two display versions available:

Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that battery state-ofcharge is being displayed; and Red to indicate that a fault has occurred.
Six LEDs: 3 Green, 1 Yellow and 1 Red to indicate battery state-of-charge; and 1 Red to indicate that a fault has occurred.

• Standard models display information from Curtis motor controllers including hours of use, battery state of charge and error/diagnostic messages.

• Interfaces directly to Curtis motor controllers and displays various system parameters.
• Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation.
• Front sealed (IP65) for use in harsh environments.

Options
• Heater version available for freezer applications (heater needs to be powered by +24 or +36 VDC).
• Backlighting for reading in low-lit environments.
• 6 o’clock or 12 o’clock viewing angles.

• Display:

8-character, alphanumeric, dot-matrix LCD with optional backlighting.
• Operating Voltage Range:
015R = 12.0 to 15.0 VDC
024R = 18.0 to 30.0 VDC
• Operating Temp. Range:
–10°C to +70°C (Standard Model)
–40°C to +70°C (Freezer Model)
• Storage Temp. Range:
–40°C to +70°C

• Shock & Vibration:
Meets SAE J 1378 (Jul 98)
• Enclosure Protection:
IP65 (Face), IP40 (Rear)
• Molex 8-pin Mating Information:
Connector: 39-01-2085
Terminal (18–24 AWG): 39-00-0039
Terminal (16 AWG): 39-00-0078
• Regulatory Approvals:
UL, CE, RoHs

Company Name: Suzhou Benign Intelligent Equipment Co., Ltd.

Operational Address: 204A, Bldg. A, Founder Tech Park, No. 188, Suhong East Road, Suzhou, Jiangsu, China (Mainland)

Website:

Website on :http://benign.en.

Contact Mr. Benign Chen

Department: Director/CEO/General Manager

Job Title: General Manager

Telephone: 86-0512-62890289

Mobile Phone: 18020285375

Fax: 86-0512-62890289

Zip: 215000

Warranty:  Two year limited warranty from time of delivery.
