Curtis offers the widest range of Battery State-of-Charge (BSOC) instruments in the industry and continues to develop new algorithms to improve accuracy as well methods of measuring the state-of-charge of other battery chemistries and alternative fuel sources.

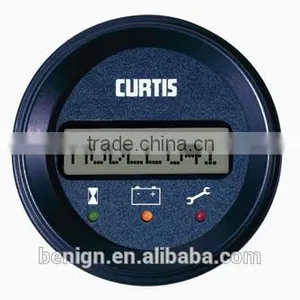

Curtis Model 841 displays various system parameters, such as battery state-ofcharge, operating hours or maintenance status from a Curtis motor speed controller or other vehicle controller.
841
| Function | BDI / Hour Meter / Codes. |
| Lift Lockout | Yes |
| Display | 8-character Dot Matrix LCD |
| Hour Meter | Yes |
| Output | 1 Amp Relay |
| Mounting | U-bracket |
| Interconnect | Molex Connector |
| Low "Fuel" Warning | Amber LED 20% Red LED 10% |
| Adjustable | No |
| Housing | 52 mm round |
| Keyswitch Input | Yes |
| BDI Reset Method | CTR, OCR |
| Operating Voltage [VDC] | 24 - 80 |
The Curtis Model 841 is ideal for use in material handling vehicles such as pallet trucks, walkies, stackers and order pickers as well as other equipment with a need to display battery state of charge, operating hours and controller fault codes.
• Attractive, easy-to-read, 8 character dot matrix Liquid Crystal
Display enhances the look of any vehicle.
• Standard models display hours of use, battery state-of-charge
and fault code messages from a Curtis motor speed controller.
• 3 LED’s:
• Green to indicate that hour meter is active.
• Amber to warn of battery state-of-charge lower than 20%
remaining.
• Red to warn that controller fault has occurred or battery stateof-
charge lower than 10% remaining.
• Interfaces directly with Curtis Model EVC255, 1244, 1254
motor controllers and displays various fault codes.
• Relay lift lockout to prevent deep discharging of batteries.
• Can be programmed to work with a variety of Curtis motor
speed controller models as well as controllers of other
manufacturers.
• Molded-in rear Molex style connector provides a low-cost, fast
and reliable installation.
• Front sealed (IP65) for use in harsh environments.
Options
• Heater available for freezer applications.
• Backlighting for reading in low lit environments.
• Module design for efficient, lower cost panel mounting.
• Display:
8-character, alphanumeric, dot-matrix LCD.
• Operating Voltage Range:
80V nominal: 60 - 100 VDC
48V nominal: 36 - 60 VDC
36V nominal: 27 - 45 VDC
24V nominal: 18 - 30 VDC
• Operating Temp. Range:
-40°C to +70°C
• Storage Temp. Range:
-40°C to +80°C
• Shock & Vibration:
Meets SAE J 1378 (Jul 98))
• Enclosure Protection:
IP65 (Face), IP40 (Rear)
• Mating Connector:
Molex 8 pin, 39-01-2085
