CAN and Serial Communication instruments from Curtis display vehicle data and fault information. These gauges connect directly to Curtis controllers and I/O modules, easily, seamlessly and conveniently.
Can Color Instrument

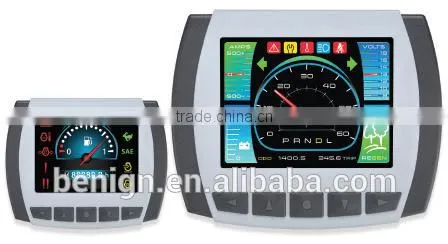

The Curtis enGage® VI & VII display is a microprocessor based, programmable, CAN compatible instrument with full Input/Output capability and can be used to display information in a wide variety of on- and off-road electric vehicle applications, including material handling, industrial, utility, and recreational. The Curtis enGage™ VI and VII color displays differentiate your industrial vehicle by providing meaningful system information in vibrant color when you need it. With the ability to display video from cameras and controller data, diagnostics and error codes, the enGage™ VI and VII are the easy-to-integrate, reliable and highly functional solution to your vehicle needs.
enGage® VI
| LCD Style | Dot Matrix / Color. |
| Housing | Rectangular |
| Display | 3.5" in. LCD, n VGA, color |
| Serial | Yes |
| CANbus | CANopen, J1939 |
| Analog In | 4 |
| Digital In | 8 |
| Outputs (MOSFET) | 2 - 2.0 AMP |
| VCL | Yes |
| LEDs | 0 |
| Push-Buttons | 5 |
| Video-Input | Yes |
| Audible Alarm | true |
| Real-Time-Clock | Yes |
| Connector | Deutsch DTM |
| Programmer Emulation | Yes |

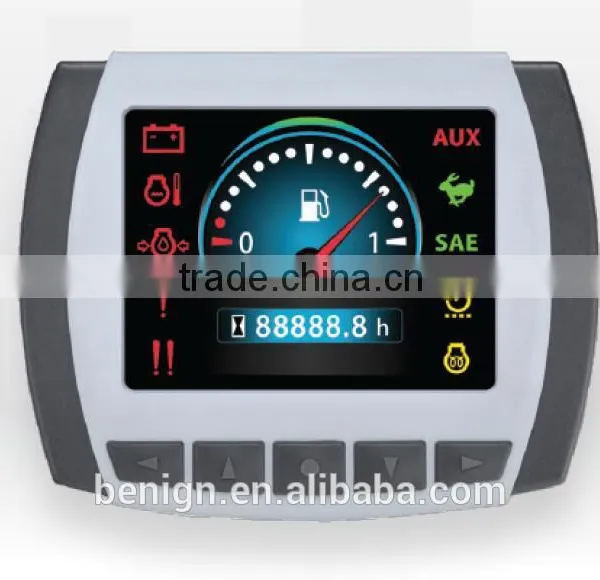

Curtis Model enGage® VI is used to display information in a wide variety of on- and off-road electric vehicle applications, including material handling, industrial, utility, and recreational.
Exceptional LCD
* Large and sharp, easy-to-read, high-resolution LCD screen for
optimum viewing.
* Integrates comprehensive panel functionality into a single display to
differentiate and enhance vehicle aesthetics.
* Rich, vivid colors, sharp imagery, strong contrast and high-color vibrancy
allow the perfect palette for designing virtually any custom screen
according to your application and requirements.
* Allows state-of-the-art design flexibility and progressive appearance.
* Instrument designers benefit from a beautiful and effective array of
graphic capabilities, colors, shapes and lines.
* Screen customization flexibility is virtually limitless.
* Transflective LCD for clear viewing even in bright sunlight.
* Clear, crisp color LCD — 1/4 VGA, 320 x 240 (3.5” for Model 3601, 5.7”
for Model 3701).
* Two color video inputs, both of which accept NTSC or PAL format.
* Message center, display menu system, password security options provide
flexible and varied options to vehicle panel designers.
Universal CAN Compatibility
* Seamlessly integrates with Curtis AC vehicle speed controllers and input
devices without requiring additional code to be written.
* Fully CAN compatible—CANopen.
* Interacts with any CAN node on your vehicle network.
* Options include isolated CANbus interface and an affordable CAN-only
version, without the I/O feature.
Wide Ranging I/O
* Powerful I/O capability allows for easy system integration.
* Non-CAN based digital and analog device signals in your distributed network can
be converted to CAN.
* Significantly reduces the wiring requirements through the use of CANopen.
* Independent, open-drain MOSFET outputs rated 2A continuous (2 for Model 3601,
4 for Model 3701).
Powerful Customization & Programmability
* The enGage® VI & VII is a blank palette that allows the vehicle OEM to design a
unique, special and fully customized panel fully suited to the application, with
complete flexibility to match the instrument to the vehicle’s display requirements..
* One single screen displays many functions and instrument readings based on
OEM defined functional and operational system parameters and thresholds.
* Changing display parameters (i.e. maintenance parameters, time of day, etc.) and
providing input (i.e. password, check list information) can be accomplished
through button inputs.
* The enGage® VI & VII can be programmed with the proprietary Curtis Vehicle
Control Language (VCL) from a Curtis AC controller.
Cased Unit Features
* Efficient, minimally intrusive case design for optimal use of available panel space.
* Easy “snap fit” hardware free mounting allows low installation cost and eliminates
loose hardware.
* Integrated front panel gasket provides sealing between the instrument and panel,
preventing moisture/dust through the panel opening.
* IP67 rated front and rear effective for a wide variety of environmental conditions.
* Rugged, heavy duty Deutsch connectors (sealed DTM series) provide reliable
connections in harsh environments.
* Anti-fog/anti-glare treated, scratch-resistant, chemically strengthened glass
(plastic optional) lens provides superior viewing in all environmental conditions.
Additional Advantages
* Real time clock can be used to provide data logging and real-time event
time stamping.
* Greatly reduces secondary displays, circuits, systems, installation and support
electronics costs.
* LCD heater option allows operation in cold climates to –40°C (normal operation
to –20°C without heater).
* Wide voltage range, 12–48VDC or 60–144VDC.
* Integral audible alarm output.
* Available with the newest Curtis battery discharge algorithm for highly accurate
battery state of charge information.
Environmental
Temperature Range
Operating: –40°C to +70°C
Storage: –40°C to +85°C
Cycling: Per SAE J1455 section 4.1.3.1
Shock: Per SAE J1455 section 4.1.3.2
NOTE: Deviation from SAE J1455 Aug. 95, section 5.2.1.1 maximum temperature of
+85°C due to LCD module limitations. At temperatures below 0°C, the LCD
heating element turns on to prevent slow display response times.
Humidity
Applicable to enclosed units only: 95% RH (non-condensing) at +38°C as per SAE
J1455 Aug. 94, section 4.2.3.
Water / Dust Ingress
Applicable to enclosed units only: sealed front and rear to IP67. For models that
include video option, video connector must be installed to achieve IP67 rating on
rear of unit.
Anti-fog Lens
Applicable to enclosed units only.
Lens Scratch Resistance
Applicable to eenclosed units only: standard is Chemically Strengthen Glass w/Anti-
Glare and Anti-Fog coatings. Optional Hard-Coated Polycarbonate Lens available,
which meets the Bayer and Steel wool abrasion tests.
Salt Spray Resistant Lens (Fog)
Applicable to enclosed units only.
Shock
Applicable to enclosed units only: meets SAE J1378 July 98: Amplitude 44–55g,
half sine, 9–13 ms duration.
Vibration
Applicable to enclosed units only: Meets SAE J1378 July 98. Double amplitude
of 1.53 mm, with frequency sweep from 10-80-10 Hz (20g max.) at intervals of
1 minute.
EMC Specifications
Emissions
Designed to meet EN61000-6-4:2007.
Immunity
Designed to meet the following:
* SAE J1455 section 4.11.2.2.1 & 4.11.2.2.2
* EN61000-6-2:2005, EN61000-4-2:1995
* EN61000-4-3:2006, EN61000-4-4:2004, EN61000-4-5:2006
* EN61000-6-4:2007
Safety
Meets EN 61010-1: 2001 Part 1: General safety requirements for measurement,
control and laboratory use.
Regulatory Approvals
* RoHS Compliant
* CE Mark (pending)
Tested to meet the Low Voltage Directive (LVD) 2006/95/EC and EMC Directive
2004/108/EC. Product specification will be updated upon completion of testing.
* UL Mark (pending)
Product specification will be updated upon completion of testing.
