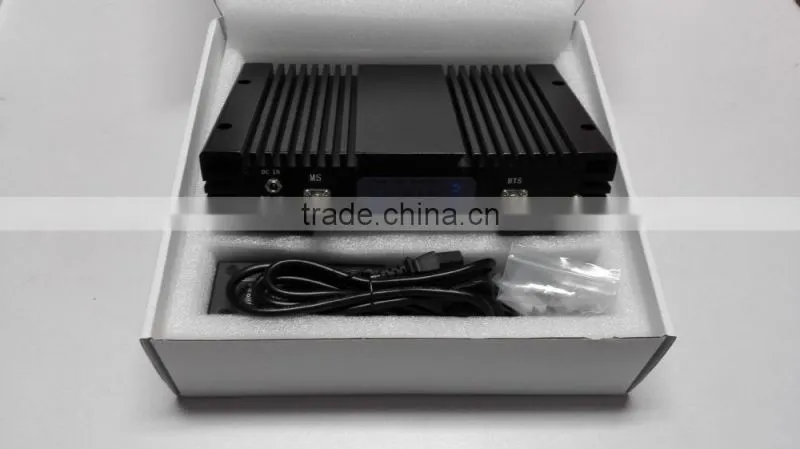

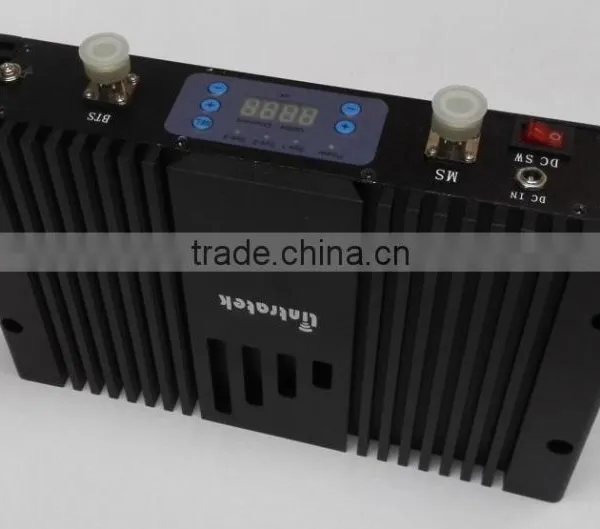

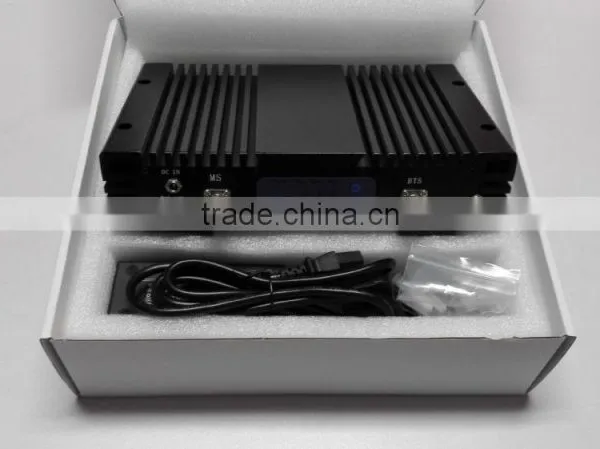

Help CenterDual Band GSM WCDMA Signal Repeater,2g 3g Cellphone Signal Booster With AGC/MGC Function
Related Products
-
Lintratek 3G 4G Cdma Pcs 850/1900mhz Dual Band Mobile Phone 3G 4G Signal Amplifier Supplier's ChoiceUS$ 60 - 88MOQ: 5 Pieces -
Coverage 2500sqm Gsm 900/1800 Dual Band Booster GSM DCS High Gain, Dual Band Mobile Phone Signal BoosterNegotiableMOQ: 50 Pieces
-
High End Dual Band Repeater 2g 3g Manual Gain Control High Quality Mgc Signal RepeaterUS$ 200 - 350MOQ: 10 Pieces
-
Dual Band Mobile Signal Repeater,2g 3g Signal Repeater With Lcd DisplayUS$ 1 - 120MOQ: 10 Pieces
-
Factory Price Dual Band GSM WCDMA Mobile Signal Repeater,2g 3g Cell Phone Signal BoosterUS$ 1 - 120MOQ: 10 Pieces
Our product:
Why do you need to buy repeater/booster ?
Unfortunately,there are still no signal in some places,for example:
-Parking lots,tunnels
-Big store
-Car,boats,office building
-House in remote area
How can repeater bring your mobile phone better signal?
| Model No | KW27F-GW | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | DCS | 890-915/1920-1980 Mhz | 935-960/2110-2170 Mhz |
| Output Power | 24±2dBm | 27 ±2dBm | |
| Gain | 70 ±2 dB | 75±2dB | |
| Bandwidth | Wide Band | ||
| Ripple in Band | GSM≤5dB,DCS≤6dB,WCDMA≤5dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, DC+12V/3A | ||
| Power Comsumption | < 6W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Dimensions (D*W*H ) | 270*170*60 (mm) | ||
| weight | 3.8Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
Install step:
How should you install repeater (very easy and simple):
Step 1: Use your mobile photo to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater
step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor ANT (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
After sale service
We have two years quality warranty for all customers,you can return goods to us when you receive defective repeater,but freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
