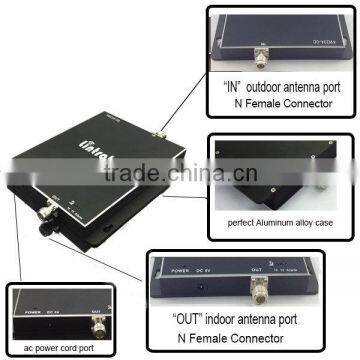

LINTRATEK Dual Band Repeater,GSM 1800 Mobile Signal Booster Gain 70db Cellphone Signal Repeater
US$ 1 - 120
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Lintratek
Model Number:
KW23A-GD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Repution Mobile Signal Repeater,900MHz/1800MHz GSM DCS Signal Repeater to Enhance Home SignalUS$ 1 - 120MOQ: 10 Pieces -
2G Mobile Signal Repeater,dual Band Signal Booster ,cell Phone Signal Amplifier With CE CertificateUS$ 1 - 120MOQ: 10 Pieces
-
Home Use Gsm Dcs Signal Booster Mobile Network Solution, Dual Band Cell Phone Signal BoosterUS$ 1 - 120MOQ: 50 Pieces
-
Brand LINTRATEK Dual Band Cdma Pcs Repeater Umts 3g 850 1900, Mobile Network Signal RepeaterUS$ 1 - 120MOQ: 50 Pieces
-
Brand Lintratek 70dB Dual Band EGSM 3G Repeater With AGC MGC 3g Egsm Repeater 900 2100NegotiableMOQ: 20 Pieces
Place of Origin
Guangdong, China
Brand Name
Lintratek
Model Number
KW23A-GD
Product Description
Why do you need to buy repeater/booster ?
Unfortunately,there are still no signal in some places,for example:
-Parking lots,tunnels
-Big store
-Car,boats,office building
-House in remote area
How can repeater bring your mobile phone better signal?
Specification shall care about:
| Model No | KW23A-GD | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 890-915/1710-1785MHz | 935-960/1805-1880MHz | |
| Output Power | 20 ±2dBm | 23 ±2dBm | |
| Gain | 65±2dB | 70±2 dB | |
| Bandwidth | Wide Band | ||
| Automatic Gain Control | ≤ 20 | ||
| Ripple in Band | ≤4dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -35 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤2 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:90~265V, 50/ 60Hz;DC:12V 3A | ||
| Power Comsumption | < 10W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 220*170*25(mm) | ||
| Weight | 1.7KG | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
Packaging & Shipping
Our Services
Install step:
Company Information
FAQ
After sale service
We have two years quality warranty for all customers,you can return goods to us when you receive defective repeater,but freight charges should be responsible by buyer.
