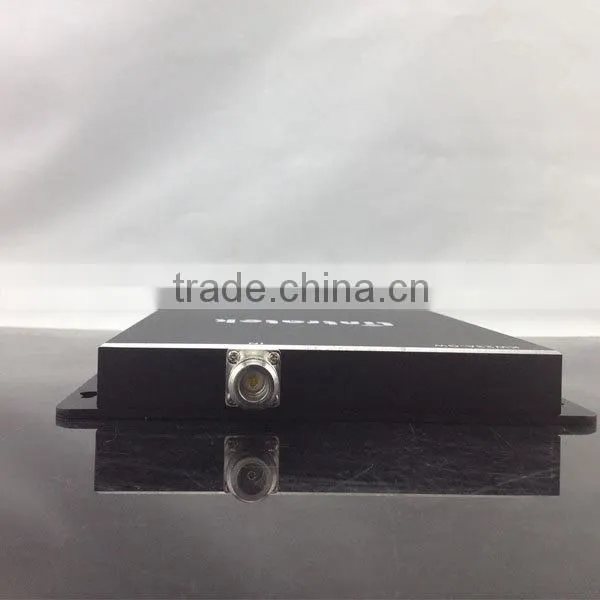

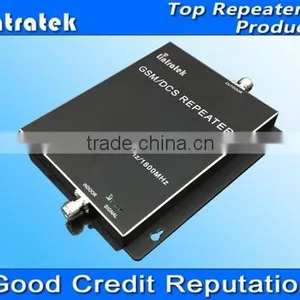

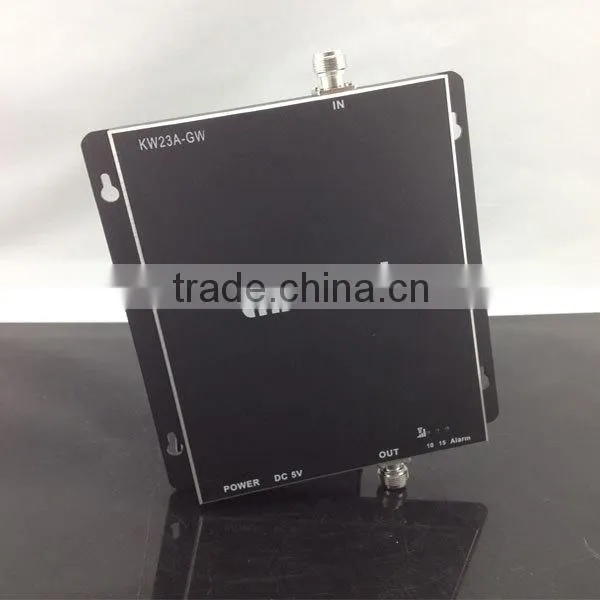

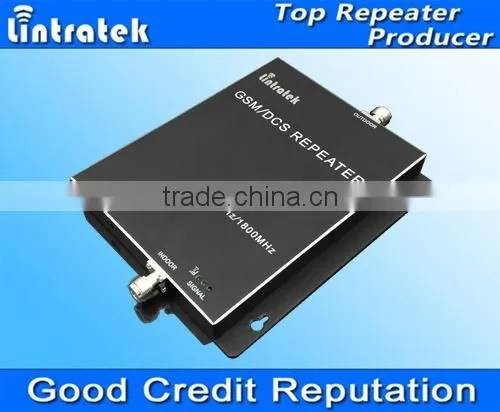

2G Mobile Signal Repeater,dual Band Signal Booster ,cell Phone Signal Amplifier With CE Certificate

Name: 2G Mobile Signal Repeater,dual Band Signal Booster ,cell Phone Signal Amplifier With CE Certificate
Brand: Lintratek
SKU: 102568449

US$ 1 - 120 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Lintratek

Model Number:

KW23A-GD

Shenzhen Lintratek Communication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Lintratek

Model Number KW23A-GD

Product Description

Why do you need to buy repeater/booster ?

Unfortunately,there are still no signal in some places,for example:

-Parking lots,tunnels

-Big store

-Car,boats,office building

-House in remote area

How can repeater bring your mobile phone better signal?

Specification shall care about:

Model No		KW23A-GD
Parameter data		Uplink	Downlink
Frequency Range		890-915/1710-1785MHz	935-960/1805-1880MHz
Output Power		20 ±2dBm	23 ±2dBm
Gain		65±2dB	70±2 dB
Bandwidth		Wide Band
Automatic Gain Control		≤ 20
Ripple in Band		≤4dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Spurious Emission	9KHz~1GHz	≤ -35 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 6 dB
VSWR		≤2
MTBF		>50000 hours
Power Supply		AC:90~265V, 50/ 60Hz;DC:12V 3A
Power Comsumption		< 10W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female N
Cooling		Heatsink Convection cooling
Dimensions (D x W xH )		22017025(mm)
Weight		1.7KG
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10℃ ~ 55℃
