200m VGA Extender with Audio over cat 5e/6 Ethernet

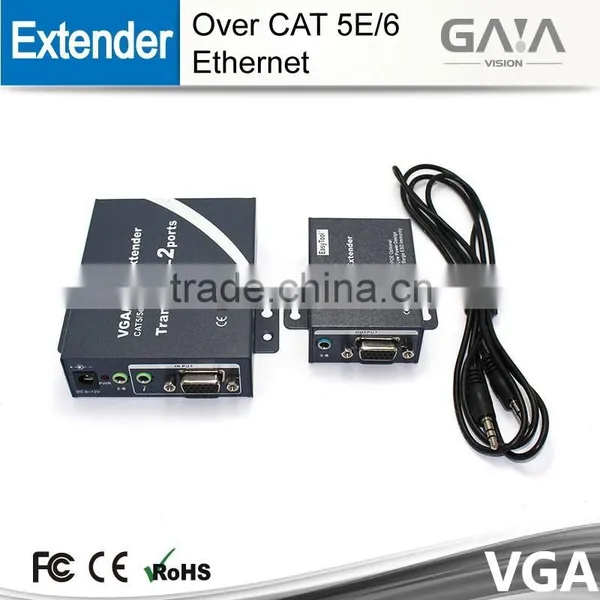

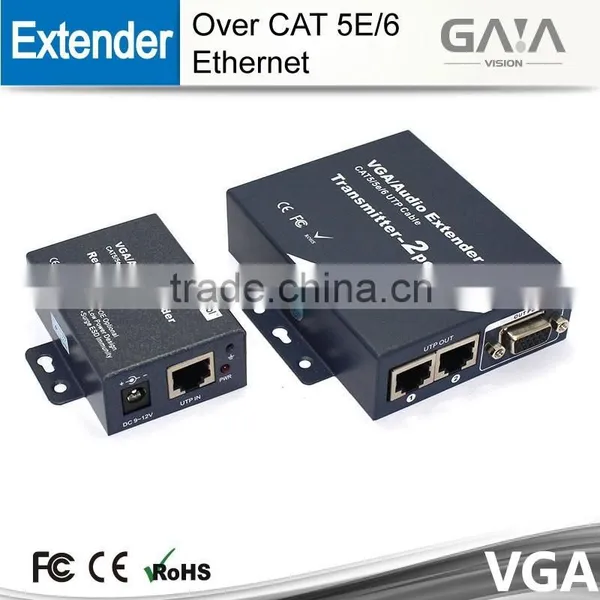

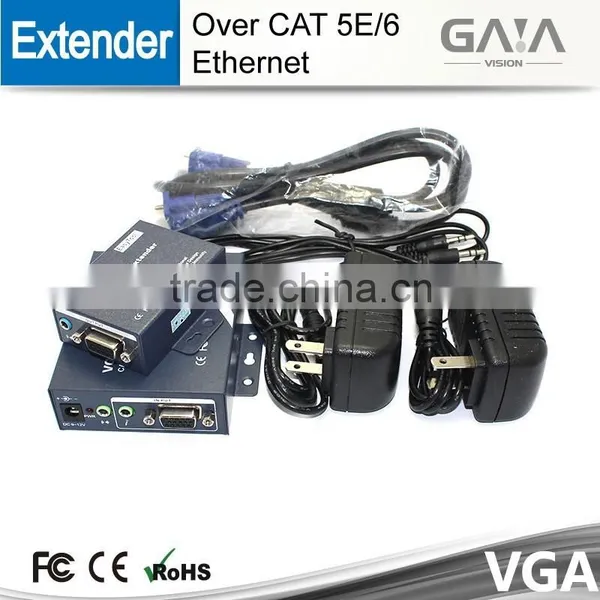

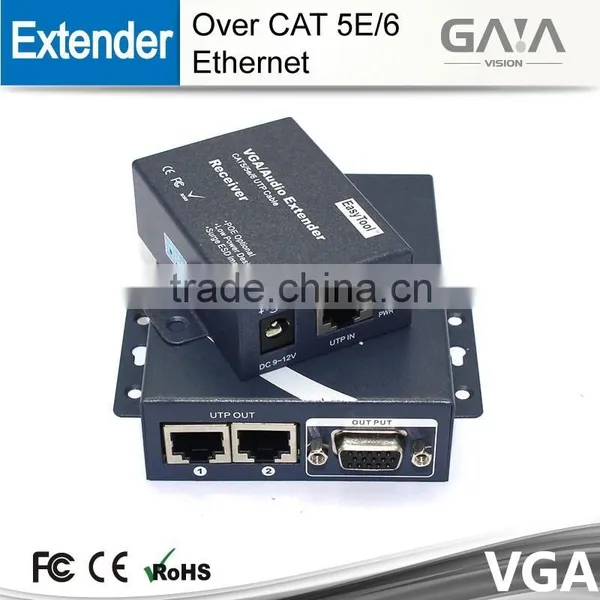

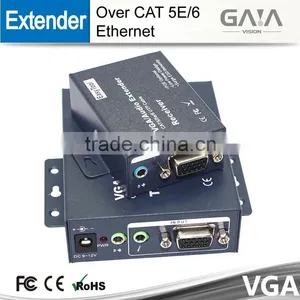

The CAT5-Link TM mini VGA-Audio Extender and tiny VGA-Audio Remoter transmit VGA-Audio up to 100/1200 feet away from a computer using CAT5/5e/6 cable. The VGA-Audio extender consists of a local unit that connects to a computer and also supplies VGA video and stereo audio to a local monitor and speaker, and a remote unit that connects to a monitor and speaker. The mini VGA-Audio extender and tiny remoter uses +9V to +12VDC (500mA) external adaptor power, mini extender has mounting holes in metal case.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

VGA Audio CAT5/UTP/STP Extender

Host Connection

• Supports a PC, SUN, MAC or PC Switch.
• Female 15-pin HD connector for computer connection.
• Stereo audio support - 3.5mm stereo plug.

Local Access

• Crisp and clear 640X480 to 1920x1440 video resolutions.
• Female 15-pin HD and 3.5mm stereo connectors for local VGA monitor and speaker.
• Stereo audio input - 3.5mm stereo jack.

Power

• Single channel VGA Audio Sender:
• +9V to +12V DC/500mA via AC/DC adapter
• 3.5mm male stereo audio cable
• Power consumption: 2W

MTBF

• Single CH Mini Sender: 89,708 hrs

Cables

• CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Dimensions:

• WxDxH (mm): 95x97x28 (Mini Sender)
• Weight: 550g (Mini Sender)
• Mounting holes in metal case(Mini Sender)

Environmental

• Operating temperature: 32°F to 100°F (0°C to 38°C).
• Storage temperature: -20°F to 140°F (-30°C to 60°C).
• Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

Remote Unit

• Supports resolutions from 640X480 up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.
• Female 15-pin HD connector.
• One 3.5mm connector for audio output connection.
• Both Mini and Tiny VGA Remoter can support POE solution Video Quality and Adjustment
• ToolFreeTM - Mini VGA Audio Remoter,: video quality brightness, contractadjustment for different lengths of CAT5/5e/6 cable is done manually for video-audio remoter.
• EasyToolTM Tiny VGA Audio Remoter (30/60/100m): video quality and audio, no adjustment needed.

Power

• Mini VGA Audio Remoter (ToolFreeTM), Tiny VGA Audio Remoter (EasyToolTM) +9V to +12V via AC/DC adapter (Included).

• Power consumption: 1W (Tiny Receiver) 2W (1to 2/4 Receiver (Repeater))

• POE VGA Mini or Tiny Remoter (100m/300ft) : powered from local unit via CAT5/5e/6 cable, 300ft.

MTBF

• Single CH Mini Remoter: 81,625 hrs, Tiny Remoter: 81,214 hrs.

Dimensions:

• WxDxH (mm): 64x45x23 (Tiny Remoter)  95x97x28 (Mini Remoter)
• Weight: 300g/550g
• Mounting holes in metal case(Mini Remoter)

Audio Specification

• Stereo/Audio can be heard both locally and remotely.
• Frequency response: 20 Hz to 20 kHz, +/-1 dB.
• Signal-to-Noise Ratio (SNR): 76 dBA.
• Total Harmonic Distortion and Noise (THD+N): 0.017%.
• Stereo crosstalk: -70 dB.
• Input impedance: 10k Ohms.
• Line level 640ohm output; supports multimedia speakers.
• Maximum I/O levels: 3.1Vp-p (line level).

Electronics Specification

• Video Input :HDB-15 Female
• Video Ouput:HDB-15 Female (75ohm load)
• Video Input Signal: 0.5Vp-p - 1Vp-p Single End
• Video Ouput Signal: 0.5Vp-p -1Vp-P Single End (75ohm load)
• Video Transmission Distance: 100-1200ft (CAT5/5E/6 cable)
• Audio Input: 3.5mm Stereo Female Socket
• Audio Output: 3.5mm Stereo Female Socket
• Audio Input: 1Vp-p – 2Vp-p Single End
• Audio Output: 1Vp-p – 2Vp-P Single End(300/640 ohm load)
• Audio CMRR: -80dB @1kHz
• Video CMRR: -55dB @1MHz
• Audio Transmission Distance: 100-1200ft (CAT5/5E/6 cable)
• External Power Supply: +9V to +12V DC
