100m VGA Extender with Audio over CAT 5E/6 Ethernet - Gaia Vision
- 3000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- Dark Red Antique European antique desk lamp telephone for sale
- Antique European brown lamp telephone landline with home phones
- Antique European antique desk lamp home phones
- Antique gramophone gift music box player
- Classical turntable gramophone gift music box player
- Modern turntable gramophone gift music box player
Product Details
Brand Name: | Gaia Vision | Model Number: | VGA02TSR | Place of Origin: | Guangdong, China |
Product Description
Specifications
100m VGA Extender over CAT 5E/6 Ethernet:1, VGA extender 1x1 with audio
2, Support resolution max up to 1920x1200.
100M VGA Audio CAT5 Extender with Local and Adjustable Function
VGA Audio CAT5/UTP/STP Extender

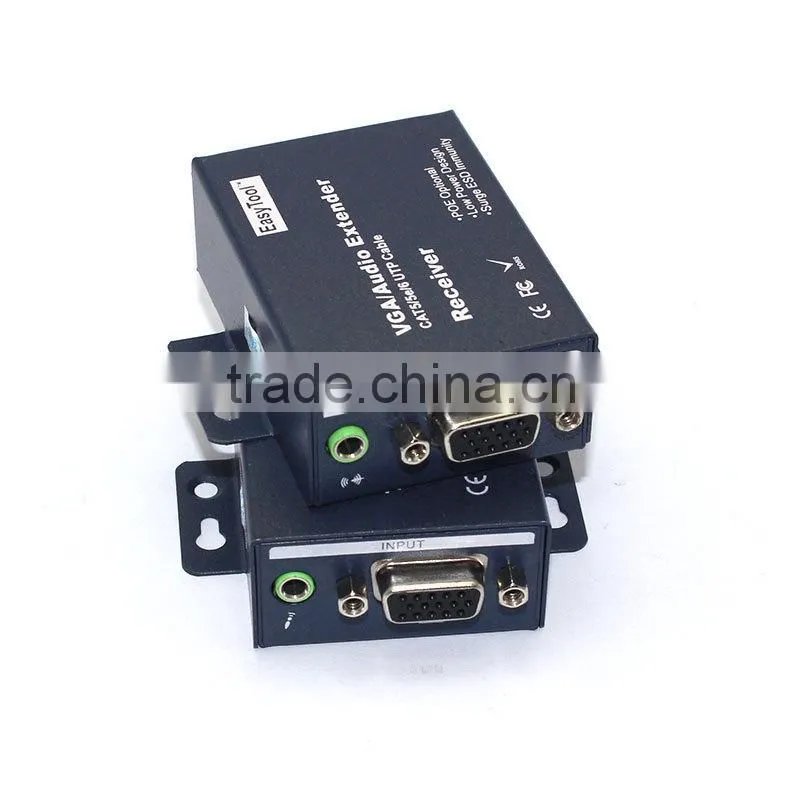

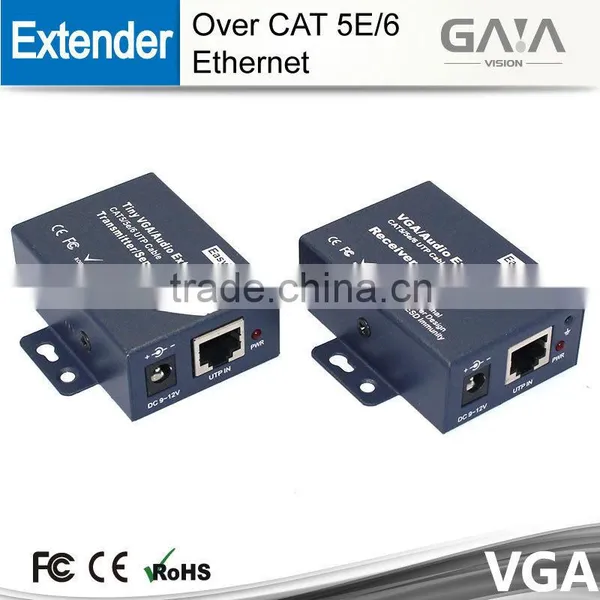

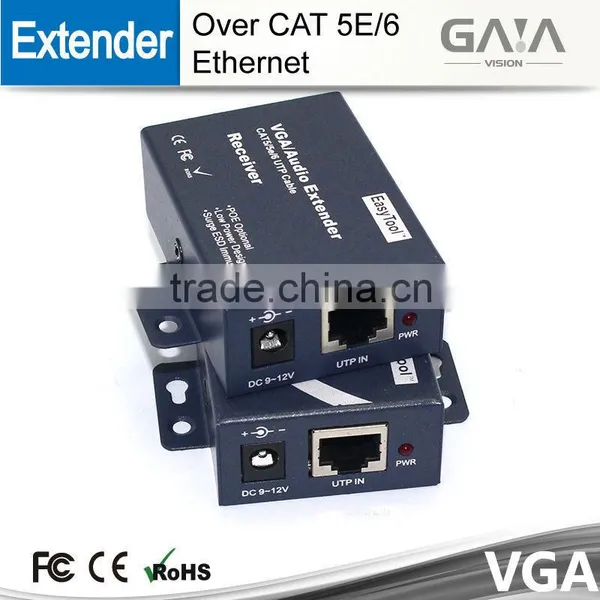

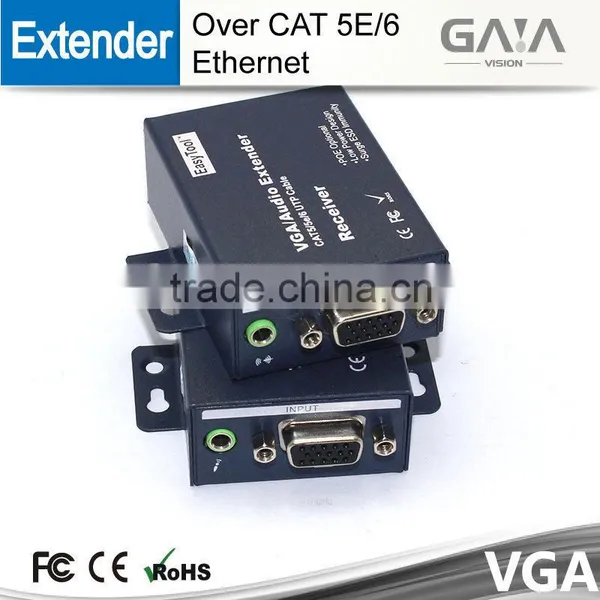

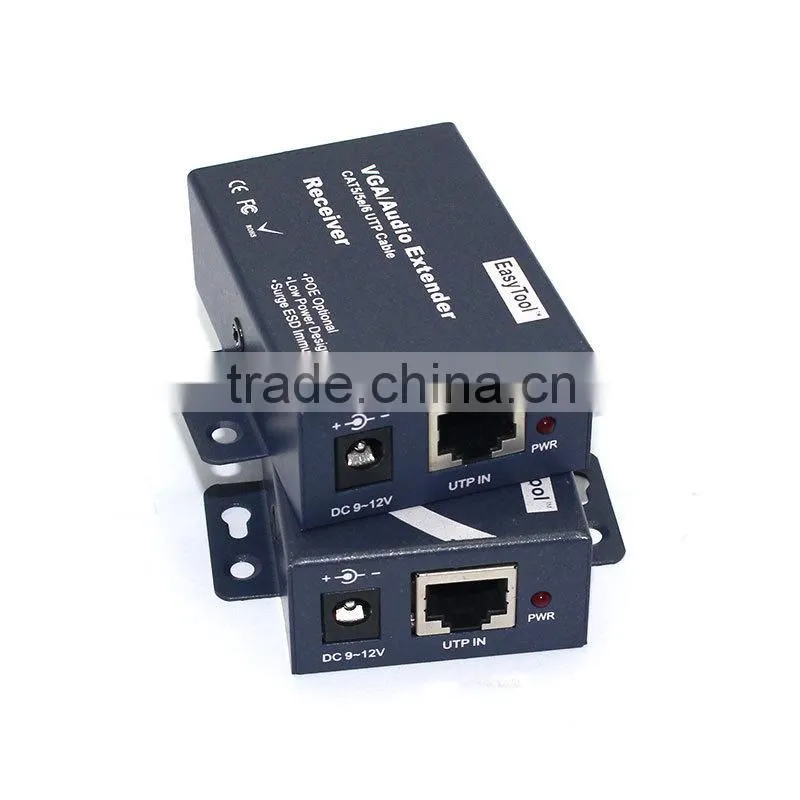

The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
· Ideal solution for digital signage applications.
· Supports local and remote VGA monitors.
· Supports resolutions to 1920x1440.
· Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
· Built-in lightning and ESD surge protection.
· Available with optional stereo audio or RS232 control.
· Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
· Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.
Specification:

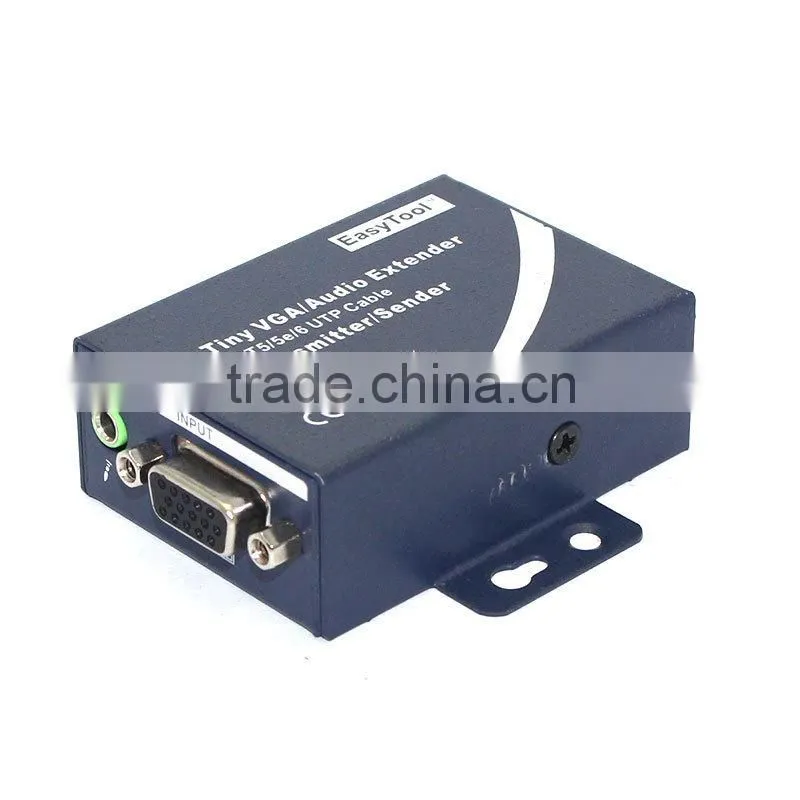

· Local Unit
- Host Connection
- Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- Male/Female 15-pin HD connector for computer connection.
- Optional RS232 support - female 9-pin D connector.
- Optional stereo audio support - 3.5mm stereo plug.
- Local Access
- Crisp and clear 1920x1440 video resolution.
- Female 15-pin HD connector for local VGA monitor.
- Optional RS232 support - male 9-pin D connector.
- Optional stereo audio support - 3.5mm stereo jack.

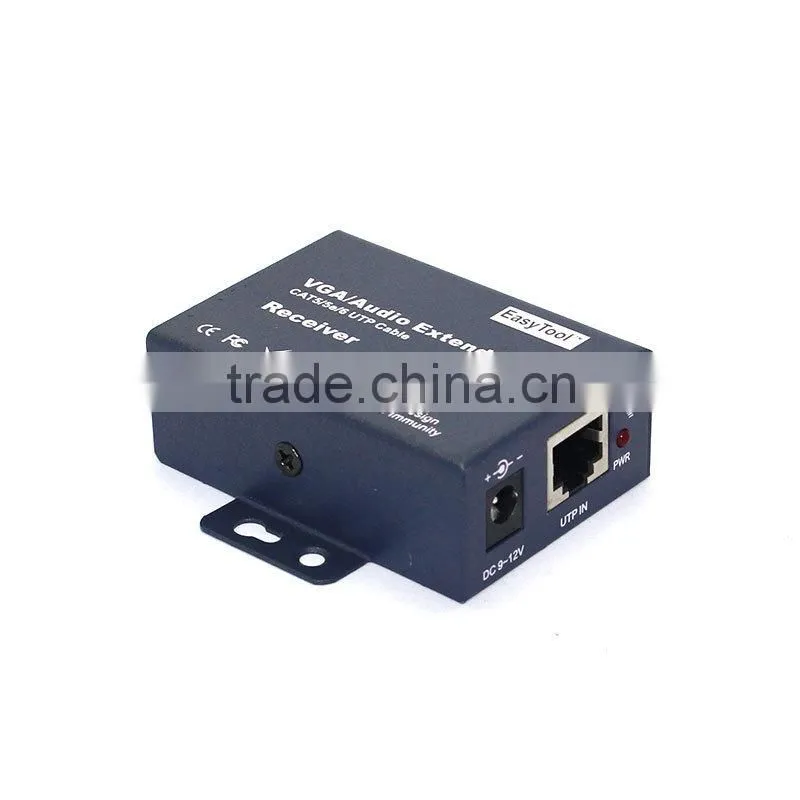

- Remote Unit
- Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
- Female 15-pin HD connector.
- Optional 3.5mm stereo audio connection.
- Optional male 9-pin D connector for RS232.
- Video Quality Adjustment
- Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video only extender, and automatically for audio/video or video/RS232 extender.
- Test Pattern for Cable Length
- Environmental
- Operating temperature: 32°F to 100°F (0°C to 38°C).
- Storage temperature: -20°F to 140°F (-30°C to 60°C).
- Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
- Dimensions WxDxH (mm): 95*97*28mm(Sender)
95*97*28mm(Receiver)
- Weight(g):0.9KG
- Power:
- 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
- Power Consumption: 6W (each - local and remote unit).
- Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.

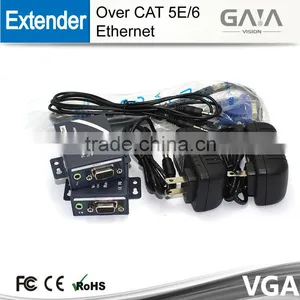

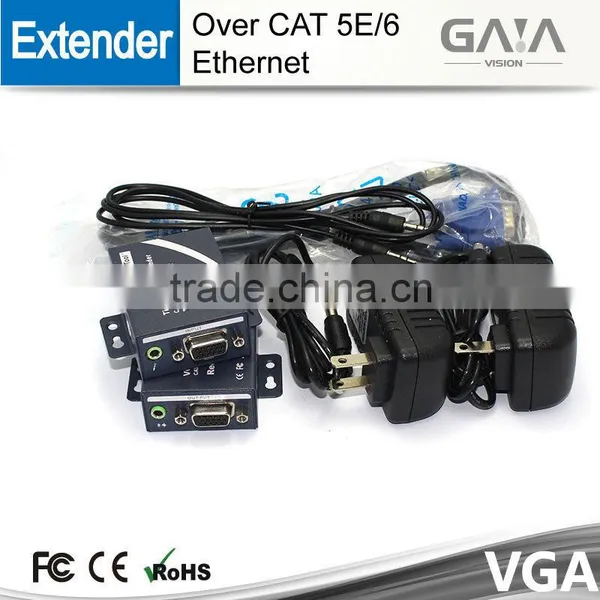

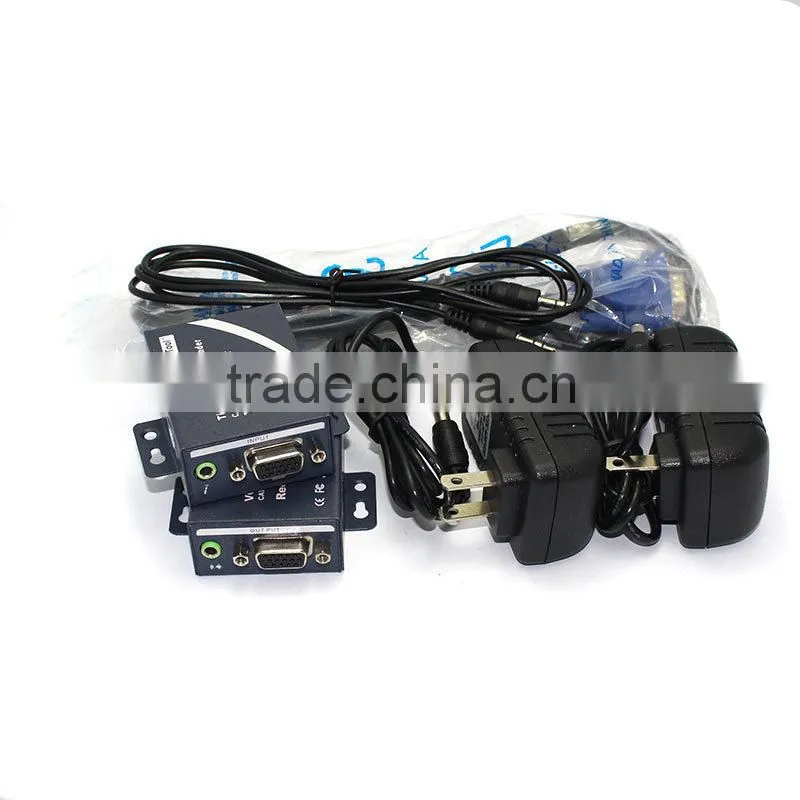

Package:
1. 1 pair 100m VGA extender(1xTransmitter,1xReceiver)
2. 1 pair power adapter
3. 1x VGA cable,1x Audio cable
4. 1xUser manual, 1xguarantee card.
