100m VGA Extender with Audio over CAT 5E/6 Ethernet

The HDMICAT30RX&TX Extender use double cat-5E or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

100M VGA Audio CAT5 Extender with Local and Adjustable Function

VGA Audio CAT5/UTP/STP Extender

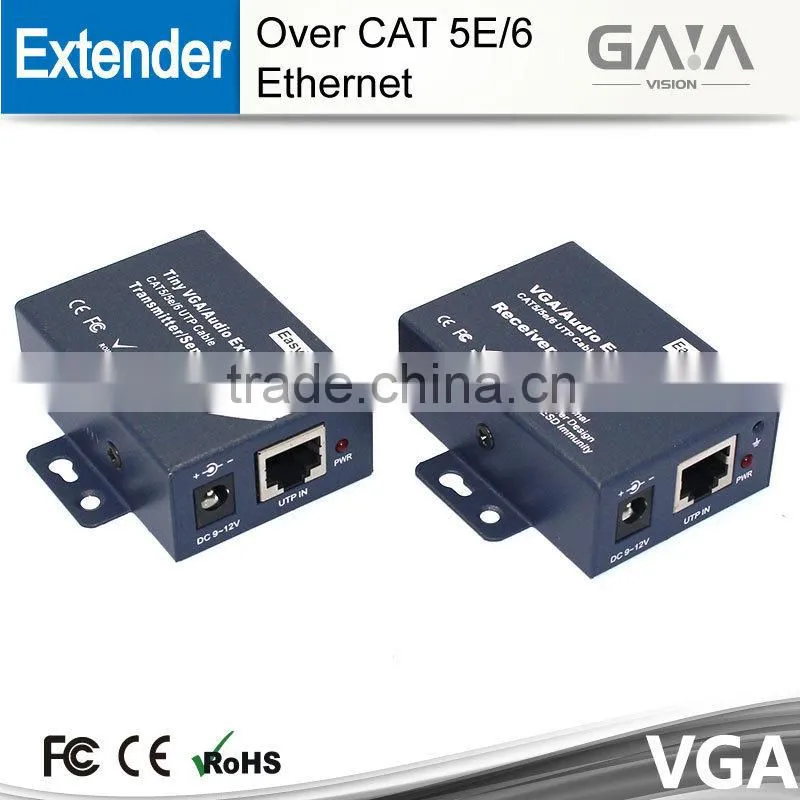

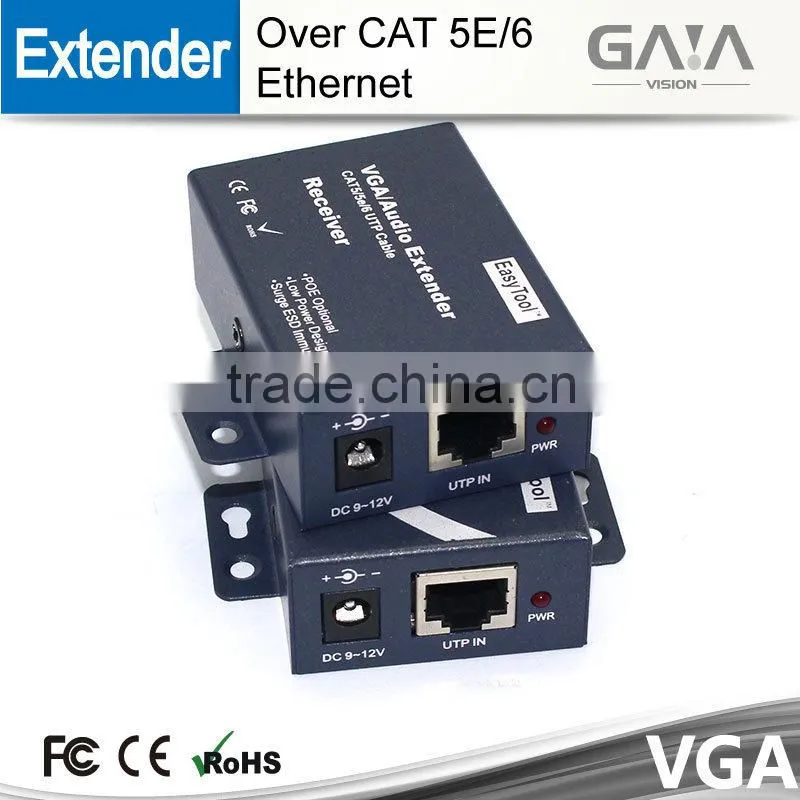

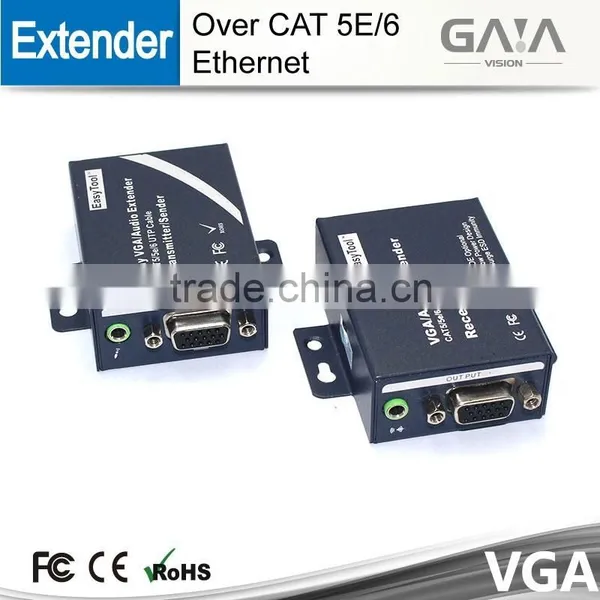

The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.

· Ideal solution for digital signage applications.

· Supports local and remote VGA monitors.

· Supports resolutions to 1920x1440.

· Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.

· Built-in lightning and ESD surge protection.

· Available with optional stereo audio or RS232 control.

· Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

· Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.

SPECIFICATIONS

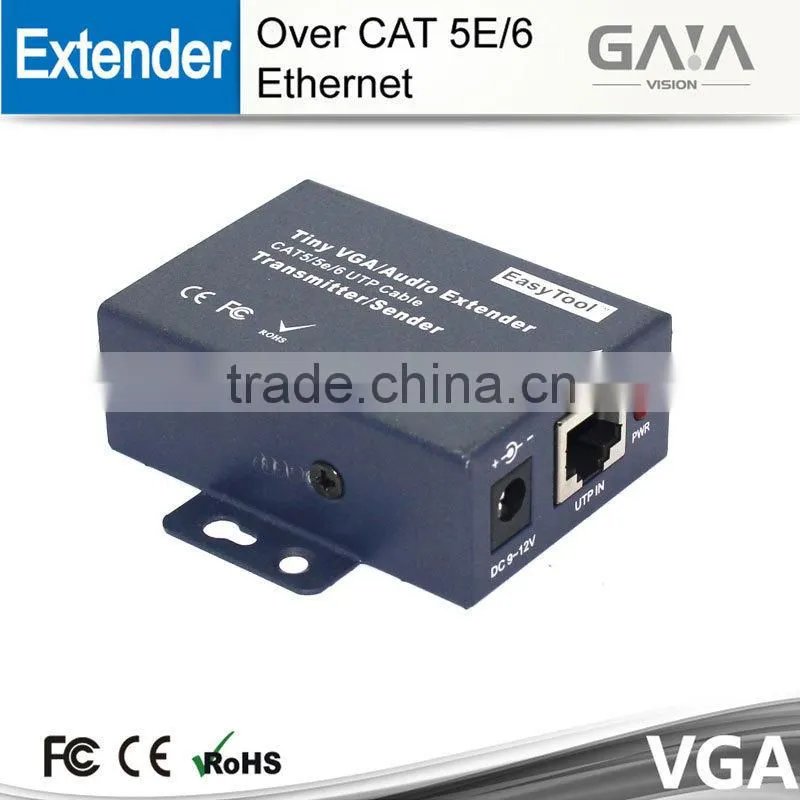

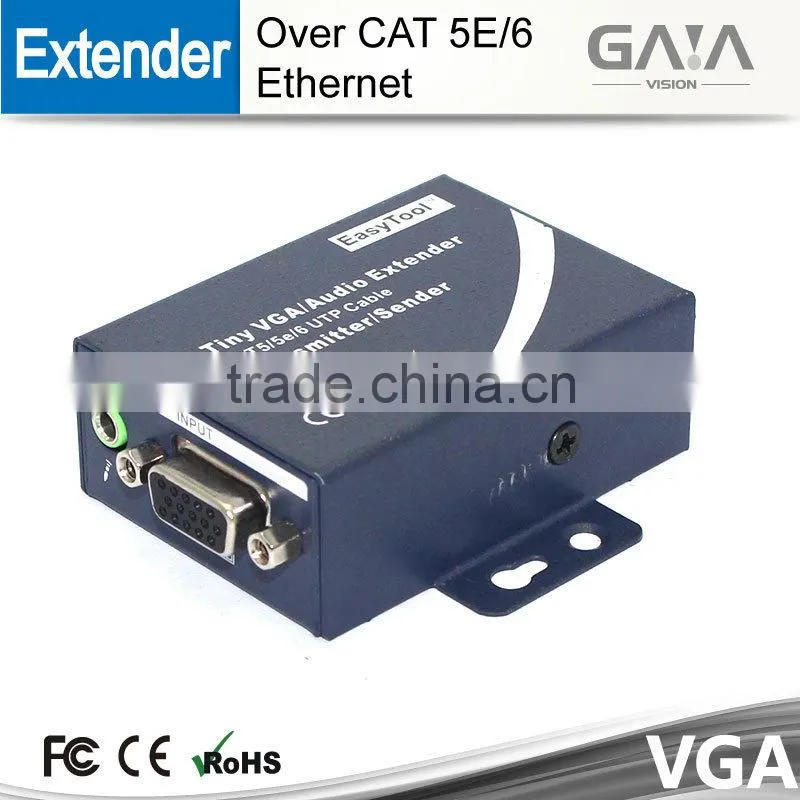

· Local Unit

- Host Connection

- Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.

- Male/Female 15-pin HD connector for computer connection.

- Optional RS232 support - female 9-pin D connector.

- Optional stereo audio support - 3.5mm stereo plug.

- Local Access

- Crisp and clear 1920x1440 video resolution.

- Female 15-pin HD connector for local VGA monitor.

- Optional RS232 support - male 9-pin D connector.

- Optional stereo audio support - 3.5mm stereo jack.

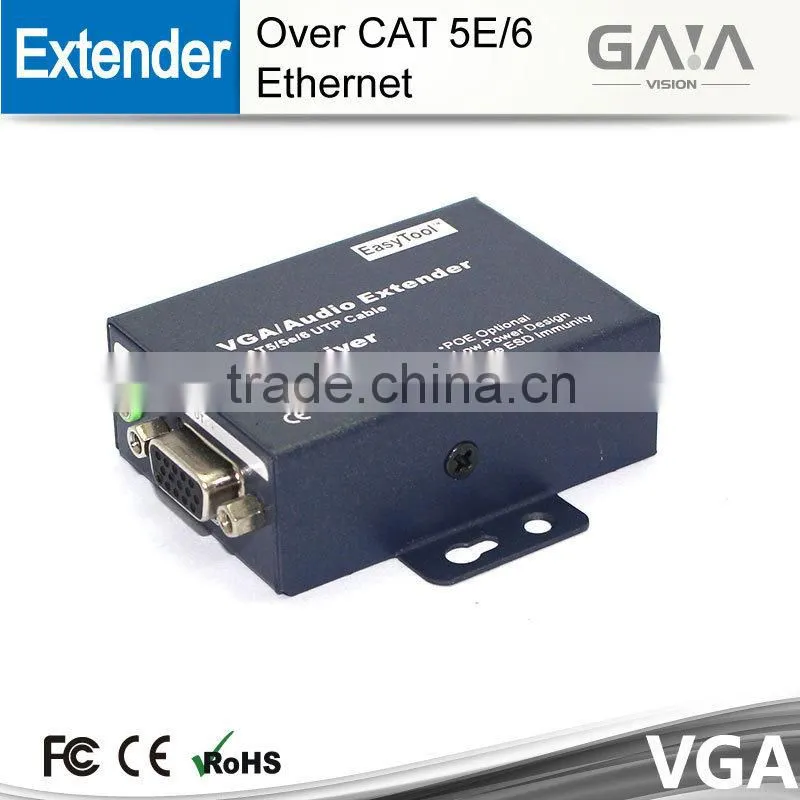

- Remote Unit

- Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.

- Female 15-pin HD connector.

- Optional 3.5mm stereo audio connection.

- Optional male 9-pin D connector for RS232.

- Video Quality Adjustment

- Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video only extender, and automatically for audio/video or video/RS232 extender.

- Test Pattern for Cable Length

- Environmental

- Operating temperature: 32°F to 100°F (0°C to 38°C).

- Storage temperature: -20°F to 140°F (-30°C to 60°C).

- Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

- Dimensions  WxDxH (mm): 95*97*28mm(Sender)

                                                         95*97*28mm(Receiver)

- Weight(g):0.9KG

- Power:

- 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).

- Power Consumption: 6W (each - local and remote unit).

- Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.

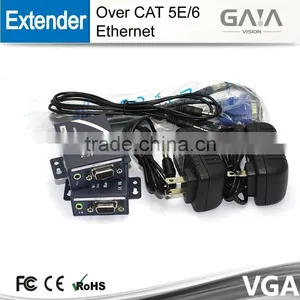

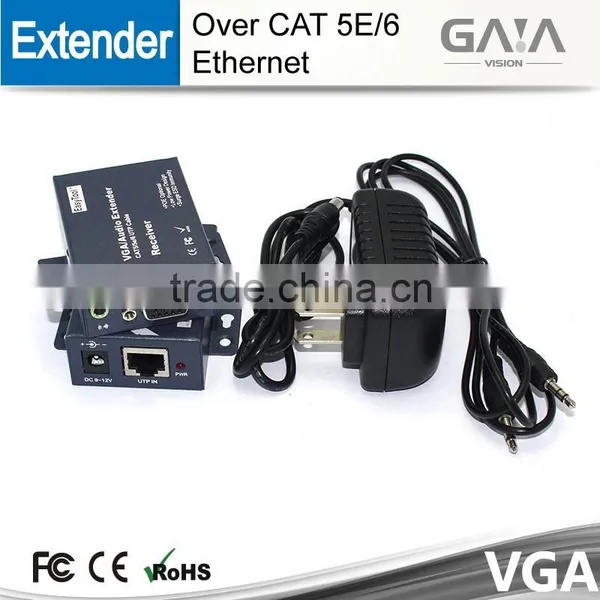

Package:

1. 1 pair 100m VGA extender(1xTransmitter,1xReceiver)

2. 1 pair power adapter

3. 1x VGA cable,1x Audio cable

4. 1xUser manual, 1xguarantee card.

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.

Shenzhen Gaia Vision Technology Co., Ltd. is specialized research and development production audio & video signal equipment, a provider of innovative audio, video and computer signal processing solutions for commercial and professional consumer in Shenzhen.
