Waste Motor Rotor Recycling Machine
Brief Introduction
The equipment adopts a harmless way to recycle waste motor rotor, applying dry-type crusher, high-intensity magnetic roller, and air separator to crush and separate waste motor rotor, to deal with waste motor rotor that is difficult to be dismantled by human by special equipment to get renewable resources. The whole process is conducted under negative pressure.
The conveyor conveys the waste motor rotor selected by human into the crusher. Hard material, such as big shaft, bearings, and gear, are forbidden to mix the waste motor rotor. The crushed mixed material is conveyed to high-intensity magnetic roller to separate iron and ferrous metal (mixed material). The mixed material is conveyed to the grinder to grinder further to get smaller material. Then the mixture is conveyed to air separator to separate copper and non-metal. The crushing and separating process is equipped with pulse dedusting system, so the problem of dust emission is solved.

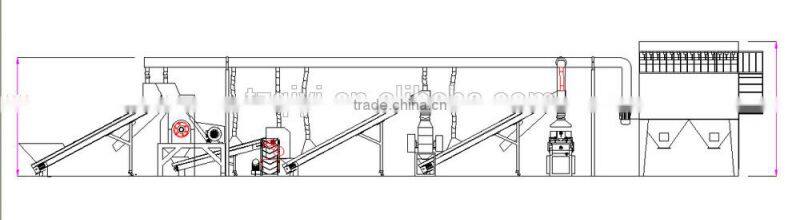

Craft Diagram
Specifications
Overall dimension (mm) |
24000*6500*5000 |
Feeding dimension (mm) |
100mm |
Processing capacity |
800-1200KG/H |
Separation rate |
97% |
Dedusting rate |
99% |
Total power |
134.8KW |

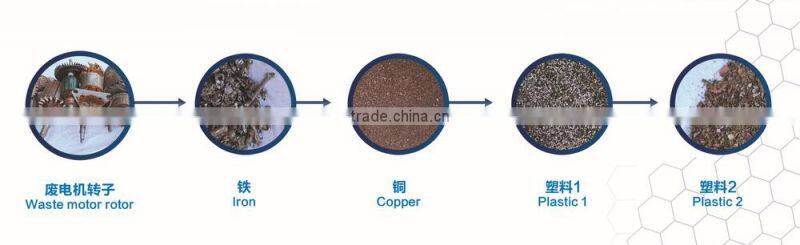

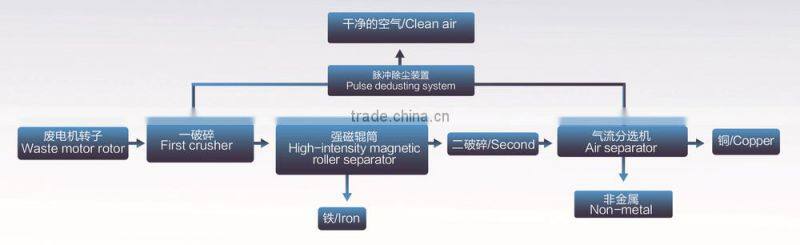

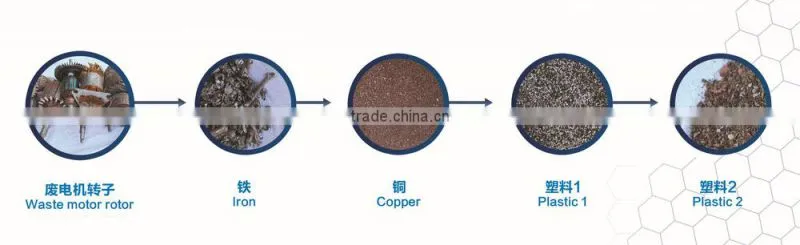

Flowing Chart

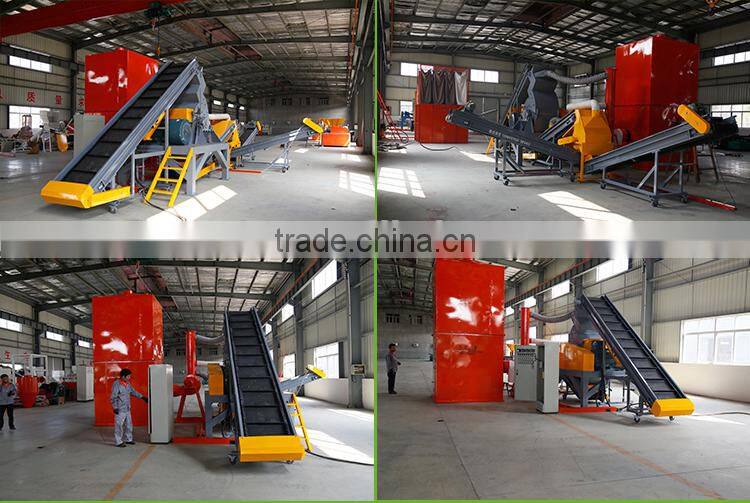

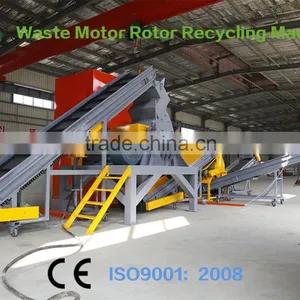

Product Photos
1) Lifelong Maintenance and considerate technical support.
2) Any problem before or after, you could find and talk with us anytime anywhere.
3) Technicians can be sent to abroad, door to door service.
4) Vedio/CD of test running and installation, Users’ Manual.
5) Complete parts& tools in box sent with machine.
Our products include: cable recycling machine, wire stripping machine, waste motor recycling machine, waste radiator recycling machine, pcb recycling machine, single shaft shredder, double shaft shredder, etc. Among them, cable recycling machine is our main product.
FAQ
1) Are you a factory or trade company?
We are professional dismantling machine manufacturer with own factory for 10 years, from a pure wire stripping machine producer, water-type copper wire recycling machine producer, to an experienced dry-type copper wire recycling machine and other environmental protection equipment producer.
2) How can I trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b.Assessed by third party, national patents for all equipment, also CE, ISO.
c.Welcome to inspect anytime. We are near Shanghai airport.
d.About the machine, we do much better. Raw material, motor, outlook, overall design, stable ,smooth
3) How about the testing running & installation?
Before delivery, we have finished the test over 3 times.
If the machine you buy is of integral design, it doesn’t need installation at all. If it’s of parted design, we can send our technicians to your country to install and adjust.
4) Any warranty?
Under the proper usage, one year for whole machine except delicate parts.
5) Is your price competitive?
Only good-quality machine we supply. Surely we will give you best factory price based on superior product and service.
If you have any interest in this machine, please don't hesitate to contact me.
