SYBWM1-1400S Single Axis Servo Motor Robot
US$ 3,000 - 8,000
/ Set
2 Sets(Min. Order)
- Qingdao / Beijing/ Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Vertical Travel(mm) | 1400-1450mm | |
| Horizonal Travel(mm) | 2000mm | Application | Other, Pick and put | |
| Place of Origin | Shandong, China | Brand Name | SHENYU | |
| Model Number | SYBWM1-1400S | Power(W) | 1300 | |
| Certification | CE,SGS | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SYBWM1-1400S single axis servo motor robot:
Features:
1)Traverse is mounted steel structure,high quality linear rail,driven by AC servo motor,high quality synchronous belt to move the axis at high speed and strength with precise positioning;
2)Single beam structre on crosswise,high quality aluminum alloy material and linear rail on main body.Driven by AC servo motor,high quality gear wheel and rack to move the axis at high speed and strength,light weight,low noise anf with precise positioning;
3)Both main arm and auxiliary arm have a two-stage multi-speed mechanism.The principal body is comprised of high-quality profiled aluminum alloy beam,high-quality linear guide,driven by high-quality cylinder and designed with special gas circuits,Therefore,it realizes lower speed outside the mold ang high speed inside the mold;
3)Both main arm and auxiliary arm have a two-stage multi-speed mechanism.The principal body is comprised of high-quality profiled aluminum alloy beam,high-quality linear guide,driven by high-quality cylinder and designed with special gas circuits,Therefore,it realizes lower speed outside the mold ang high speed inside the mold;
4)The single axis servo sidling fulfills multi-point parking.The servomotor realizes crosswise moving ang position adjustment,facilitating the adjustment ang making the operations easy.Under PLC control,the robot features strong interference resistance and modularized design ang stores more than 20 modes.It is simple and easy to understand the manual bo`s interface.
Specifications:
| Model | Unit | SYBWM1-1000S | SYBWM1-1200S | SYBWM1-1400S |
| Type | Telescopic type | |||
| Moulding machine size | ton | 350-450 | 450-650 | 450-650 |
| Vertical stroke | mm | P:1000 | P:1200. | P:1400 |
| D:1050 | D:1250 | D:1450 | ||
| Crosswise stroke | mm | P:415 | P:415 | P:415 |
| D:240 | D:240 | D:240 | ||
| Traverse stroke | mm | 1600 | 1800 | 2000 |
| Side angle pose | ° | 90 | ||
| Max load(Includes gripper) | Kg | 6 | 6 | 6 |
| Minimun take time | Sec | 1.5 | 1.6 | 1.6 |
| Dry cycle time(withou gripper) | Sec | 12 | 13 | 14 |
| Drive mode | Rampage - servo motor; Stubbs, arm - Pressure | |||
| Working air preesure | Kgf/cm² | 6 | ||
| Air consumption | Nl/cycle | 35 | 39 | 43 |
| Power consumption | KW | 1.3 | 1.3 | 1.3 |
| Power | AC200±10%(50/60Hz) | |||
Machine size can be customized.
Our factory:

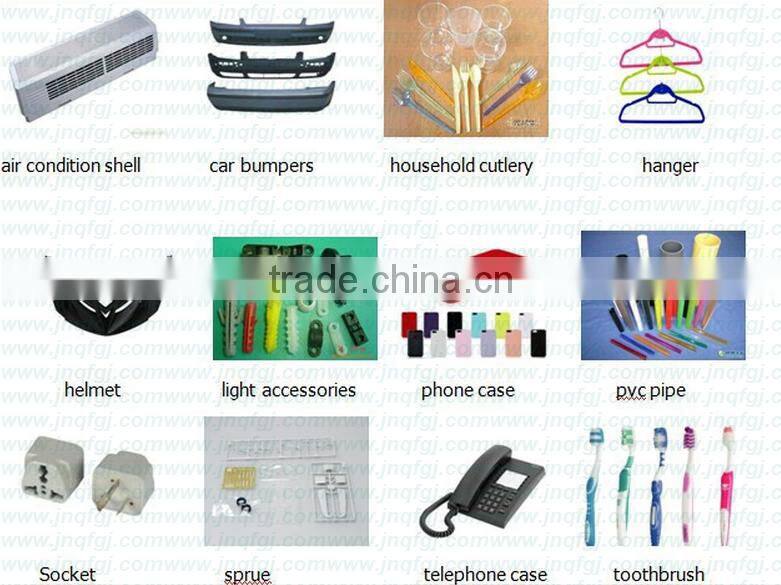

Robot arm has been widely applied to household appliances, computer and peripherals products, photoelectric, cosmetic, automobile, clocks and watches, precision gear, PET bottle embryo, beach chair, audio-visual music, light guide, communication electronic, mobile phones, medical supplies, medicine packaging, food packaging, etc.
To know more information about our machine, please contact us directly:
Contact Us
- Jinan Qifan International Trade Co., Ltd.
- Contact nameAlan Chang Chat Now
- Phone86-531-87566090
- Address4-1-1703, Yingyueqingshuiwan, Tianqiao District
