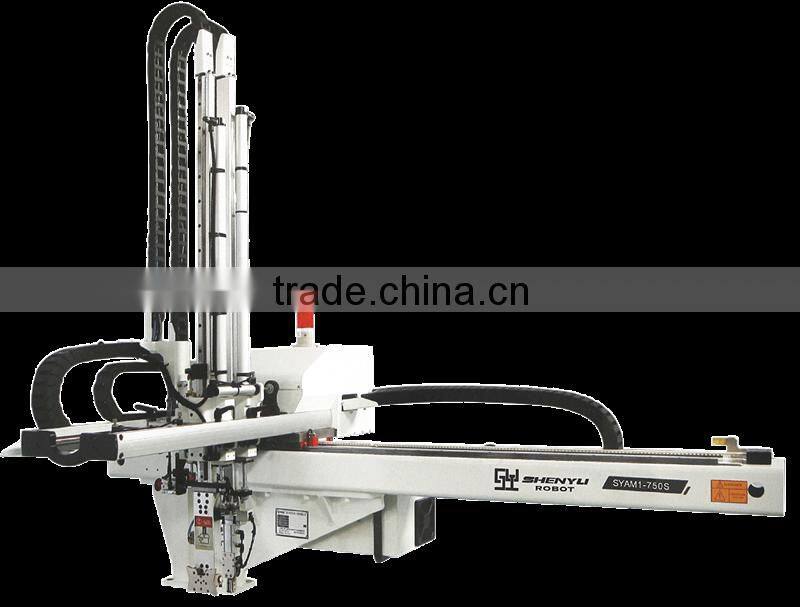

SYAM1-850S Robot Arm Side Entry

SYAM1-850S Robot Arm Side Entry thumbnail-1
SYAM1-850S Robot Arm Side Entry photo-1
US$ 3,000 - 8,000 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Vertical Travel(mm):
850-900mm
Horizonal Travel(mm):
1200
Contact Supplier Request Quote Chat Now
Jinan Qifan International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao / Beijing/ Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Vertical Travel(mm) 850-900mm
Horizonal Travel(mm) 1200
Application Other, Pick and put
Place of Origin Shandong, China
Brand Name SHENYU
Model Number SYAM1-850S
Power(W) 750w
Certification CE,SGS
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

SYAM1-850S CNC Robot arm side entry:



Features:

1)Traverse is mounted steel structure,high quality linear rail,driven by AC servo motor,high quality synchronous belt to move the axis at high speed and strength with precise positioning;
2)A single beam structure is configured for the crosswise part.It's principal body is comprised of high-quality profied aluminum alloy beam and high-quality linear guide,driven by high-quality cylinder and designed with special gas circuits.Therefore,it realizes lower speed outside the mold and high speed inside the mold;
3)Both main arm and auxiliary arm have a two-stage multi-speed mechanism.The principal body is comprised of high-quality profiled aluminum alloy beam,high quality linear guide,driven by high-quality cylinder and desigend with special gas circuits.Therefore,it realize lower speed outside the mold and high speed inside the mold.



Specifications:



Model

Unit

SYAM1-650S

SYAM1-750S

SYAM1-850S

Type



Single stage

Moulding machine size

ton

50-180

100-250

200-300

Vertical stroke

mm

P:650.

P:750

P:850

D:700

D:800

D:900

Crosswise stroke

mm

P:150

P:150

P:150

D:80

D:80

D:80

Traverse stroke

mm

1200

1200

1200

Side angle pose

°

90

Max load(Includes gripper)

Kg

5

5

5

Minimun take time

Sec

4

4.

4

Dry cycle time(withou gripper)

Sec

14.5

14.5

14.5

Drive mode



Rampage - servo motor; Stubbs, arm - Pressure

Working air preesure

Kgf/cm²

6

Air consumption

NL/cycle

19

20

22

Power consumption

KW

0.75

0.75

0.75

Working voltage:



AC200±10%(50/60HZ)



Machine size can be customized as your request.



Machine warranty and after-sale service:

1. Machine warranty is 12 months, broken parts free change during the time.

2. 24 hours technical support by email or calling.

3. Friendly English user manual in video and book.



Our factory:

SYAM1-850S robot arm side entry

SYAM1-850S robot arm side entry

SYAM1-850S robot arm side entry

SYAM1-850S robot arm side entry

SYAM1-850S robot arm side entry



Model H LM Y1 Y Y2 Z W X1min X1max X2min X2maxx
SYAM1-650S 1300 1800 85 650 100 1200 155 220 700 100 450
SYAM1-750S 1400 1800 85 750 100 1200 1565 220 700 100 450
SYAM1-850S 1500 1800 85 850 100 1200 1565 220 700 100 450



SYAM1-850S robot arm side entry



 SYAM1-850S robot arm side entry

 SYAM1-850S robot arm side entry



To know more informaiton about our machine, please feel free to contact us:

SYAM1-850S robot arm side entry
