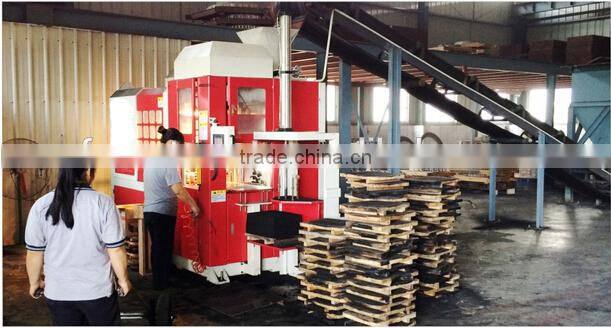

2015 new design high effiency automatic jolt squeeze moulding machine
Feature:
- 1. Full automatic molding machine can replace the traditional vibration-compression molding machine.
- 2. Can put sand core in it.Use Medium plate mold,aluminum mold,iron mold.
- 3. Can match the conveyor line,high effiency .
- 4. All kind of sand can use,no matter dry sand or wet sand.
- 5. Only can use double open mold.
- 6. Can change another mold,change time is shortly,only 1-2min.
- 7. At least save 10 worker compare with traditionnal vibration-compression molding machine.
nical parameter:
Type |
Z424 |
Z425 |
Z426 |
Sand core size(L*W) |
350*450 |
420*520 |
510*610 |
Height(mm) |
(up)150*150(down) |
(up)150*150(down) |
(up)180*180(down) |
Moulding way |
Airflow add sand+Extrusion |
Airflow add sand+Extrusion |
Airflow add sand+Extrusion |
Molding speed(MAX) |
100mold/hour Not contain put sand core |
100mold/hour Not contain put sand core |
100mold/hour Not contain put sand core |
Squeeze the surface pressure(MAX) |
-0.6Mpa(2 kind transformation way) |
-0.6Mpa(2 kind transformation way) |
-0.6Mpa(2 kind transformation way) |
Drive Mode |
Pneumatic/Hydraumatic |
Pneumatic/Hydraumatic |
Pneumatic/Hydraumatic |
Air consumption |
1.0m²(normal/mold) |
1.1m²(normal/mold) |
1.2m²(normal/mold) |
Action of air pressure |
0.56±0.04Mpa |
0.56±0.04Mpa |
0.56±0.04Mpa |
Power Supply |
AC220-380V(operation DC24V) |
AC220-380V(operation DC24V) |
AC220-380V(operation DC24V) |
Sand mould weight(MAX) |
71KG |
75KG |
180KG |
Motor power |
7.5kw |
7.5kw |
7.5kw |
Over size(mm) |
2795(L)*1650(W)*2550(H) |
2795(L)*1650(W)*2550(H) |
2795(L)*1650(W)*2550(H) |
