Home > Products > Melting Furnace > Copper Melting Furnace
Copper Melting Furnace
- 0 per Month
- Jiangmen
- T/T
Product Details
Condition: | New | Type: | Other, Induction Furnace, Induction Melting Furnace | Usage: | Melting Furnace |
Place of Origin: | Guangdong, China | Brand Name: | XINXING | Model Number: | KGPS-GW series |
Product Description
Copper Melting Furnace
Machine Features
1. Turn on and turn off the smelter easily, and power failure will not affect the service life of electric furnace.
2. Adopt constant power to control the circuit, maintain constant power while melting, and keep faster melting rate.
3. Set up over voltage, over current and water deficient protector, and run safely.
4. The motherboard adopts CAD technology, integrated circuit board, low-fault-rate, easy-manipulating, effortless maintenance.
5. Zero voltage starts up softly, high initial power, don´t impact on the electric network.
6. Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, zinc, steel, iron, stainless steel etc..
Technical Parameters:
model |
rated capacitykg |
input voltageV |
rated powerkw |
rated frequencyHz |
melt timemin/stove |
consume electricity (kw.h/t) |
consume water (M³/h) |
matched transformer (KVA) |
GW-0.15 | 150 | 380 | 100 | 1000 | 85 | 800 | 3 | 150 |
GW-025 | 250 | 380 | 160 | 1000 | 85 | 800 | 3 | 180 |
GW-0.5 | 500 | 380 | 250 | 1000 | 80 | 750 | 5 | 250 |
GW-1.0 | 1000 | 380 | 500 | 1000 | 75 | 750 | 8 | 500 |
GW-1.5 | 1500 | 380 | 750 | 1000 | 75 | 720 | 10 | 800 |
GW-2.0 | 2000 | 380/660 | 1000 | 500 | 75 | 700 | 12 | 1000 |
GW-3.0 | 3000 | 660 | 1500 | 500 | 75 | 700 | 16 | 1500 |

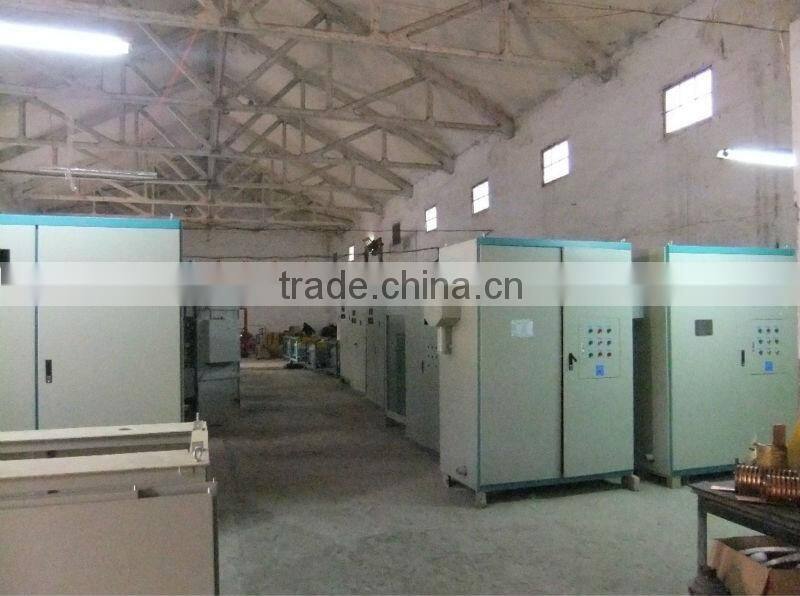

Factory production details:
Contact Us
- Xinxing Casting Technology Development Department
- Contact nameKitty Ke
- Phone86-750-2732025
- AddressNo. 41-43, Minle Road, Second Industrial Park, Shuikou Town, Kaiping
