Wax Injection Machine Casting Machine
Machine features:
1. This machine is applied in investment casting industry to shape many kinds of medium and small scale wax patterns of complicated shape, high quality and great precision;
2. Model MMY11-2-10 adopts PLC electric control and has strong adaptability to environments and low malfunction ratio;
3.It can well coordinate different wax injection pressures to improve the surface quality of wax pattern to the highest extend.
Main Technical Parameter:
|
Name
|

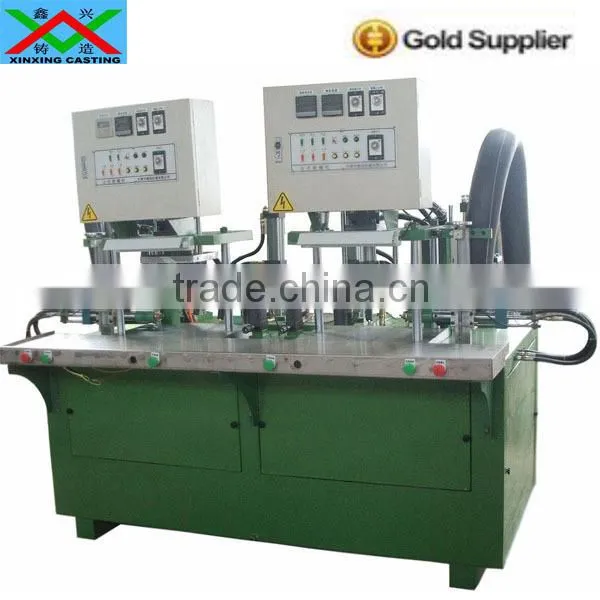

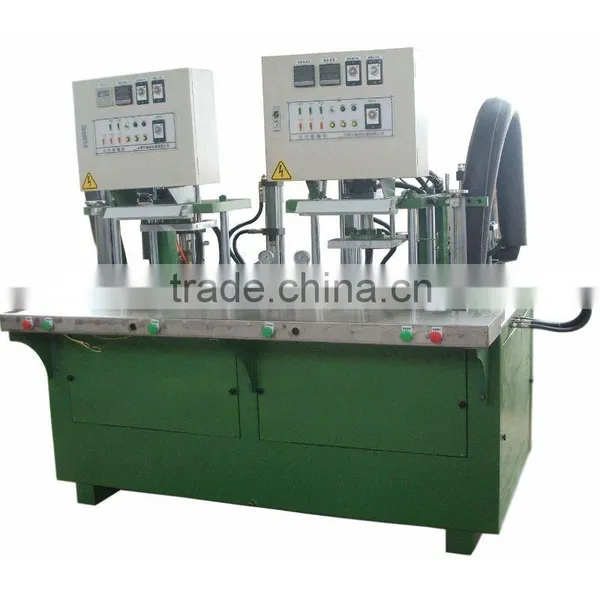

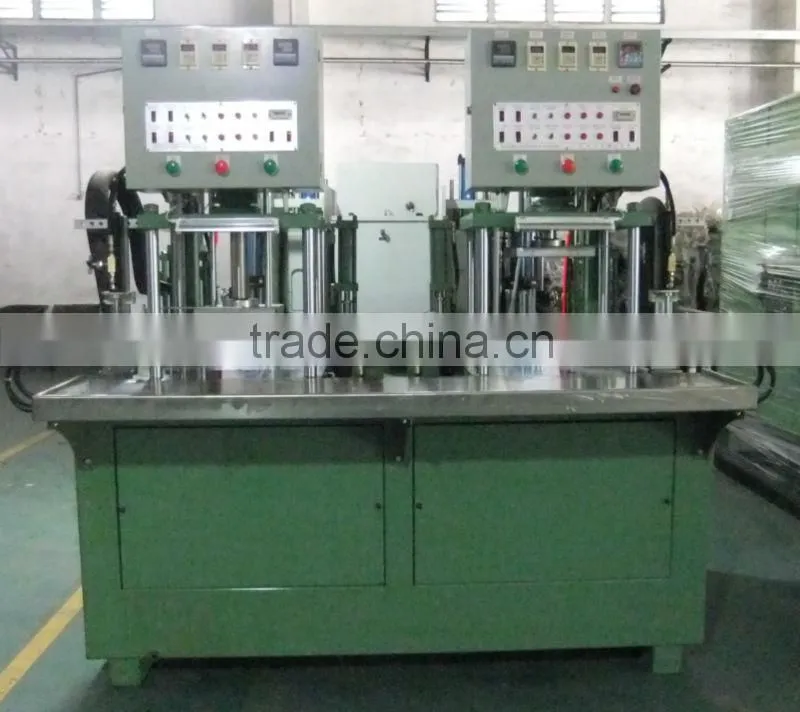

Double site no replacement cylinder hydraulic wax injector machine |
|
Model |
MMY6.3-2-8 |
MMY6.3-2-10 |
Rated pressure,Mpa |
6.3 |
6.3 |
Power, V |
380VAC |
380VAC |
Installed power, KW |
5.5 |
14.5 |
Mold closing force, T |
8 |
10 |
Temperature control range,0C |
30-80 |
30-80 |
System pressure, MPa |
7.0 |
14.0 |
Wax injection pressure, MPa |
2-6.3 |
2-11 |
Wax injection TMPE, |
3090 |
3090 |
Wax cylinder volume, L |
80 |
80 |
Platen speed close, mm/S |
34 |
42 |
Injection wax speed, L/S |
0-0.3 |
0-0.3 |
Injection wax time, S |
0-99 (can adjust) |
0-99 (can adjust) |
Wax injection quantity per time, L |
0-2.4 |
0-2.4 |
Work Area Size(L*W*H), mm |
500*400*300 |
520*400*360 |
Contour Size(L*W*H), mm |
2000*800*1600 |
2350*1270*1800 |
Weight, KG |
1500 |
1700 |
(Further information, pls contact me)
We provide the whole investment casting process equipment,
include moulding design,making,teach casting
method and technical support also hot-sell and with a high
reputation in Vietnam,Malaysia,Iran,Dubai,Philippines etc.
The specification of the machine can be customized, for more information, just feel free to contact me, thanks a lot.
