Double Station Wax Injection Machine,injection moulding metal

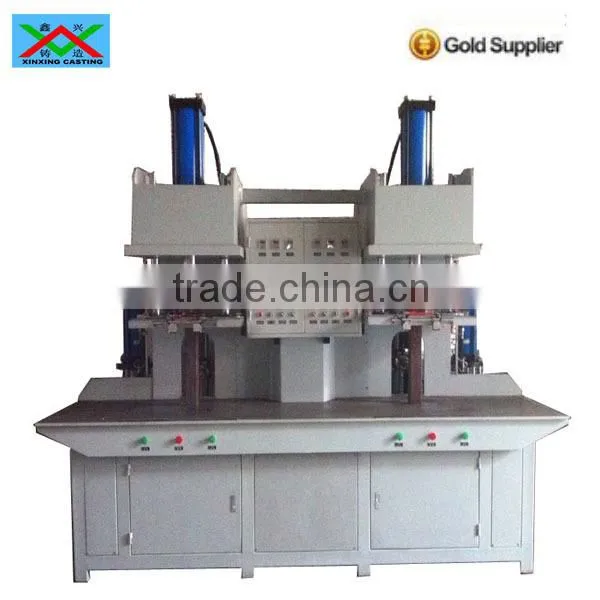

Double Station Wax Injection Machine
Double Station Wax Injection Machine
1 ,structural features:
Wax Injection Machine
(1)The molten wax and wax supply system around the barrel section and a hydraulic
(2)station as a whole, compact structure.
(3)Large operation space, radio Tsui lifting, moving back and forth,
random adjustment positioning.
(4)Novel nozzle with protective system.
(5)Two station can simultaneously work.
(6)Ectrical control system to ensure that the equipment selection of PLC degree,
convenient operation.
2. basic configuration:
a).Hydraulic station, motor, pump, valve stack
b).Program control PLC
c).The hydraulic cylinder, the seal assembly
d).For hot water circulating pump
Basic parameters:
Wax Injection Machine
Equipment model |
QD-DMZJ20T |
Clamping Force (Max) |
Fmax=20T |
The largest wax injection pressure |
0~5.3Mpa |
The single biggest wax injection quantity of single cylinder |
3.6L |
The wax cylinder volume |
160L |
Installed power |
18KW |
Power using |
~380V/220V/50HZ |
Maximum mold using space |
900×750×530 |
Maximum mold height of clamping cylinder |
600mm |
Minmum height between combined template and bench height |
50mm |
Mold platen area |
700×550 |
After injection nozzle distance clamp center minimum distance |
40mm |
Nozzle telescopic stroke from left to the right |
170mm |
Nozzle distance on board the minimum stroke |
30mm |
The nozzle is adjusted up and down stroke |
30—450mm |
Height of working table |
3200mm×820mm |
Nozzle head curve |
|
Table effective use area |
1.4 |
Hydraulic tank filler volume ( 46# anti-wear hydraulic oil ) |
120kg |
Wax storage gas volume ( 320# oil ) |
60kg |
Lost wax insulation medium |
water |
Pressure wax cylinder insulation medium |
water |
Water circulation tool |
Hot water pump
|
Template cooling medium |
6.5--8℃ ice water |
External source |
0.4—0.6Mpa |
External pipe |
12PU air pipe |
Temperature control |
AI508intelligent instrument |
Counting function |
yes |
Lost wax pattern |
hydraulic pressure |
Ice water interface |
1/2″PEX-al-PEX |
Water interface |
12PU air pipe and 1/2″PEX-al-PEX |
Dead weight of equipment |
8T |
Appearance size |
3200*2200*2220mm |
The investment casting (Lost wax casting )Method can any complicated structure,
precision product and high production product.
The products material can be stainless steel,copper,iron,steel,Ti alloy etc.
Finish products feature:high precision and good surface quality also good
mechanical properties.
We provide the whole investment casting process equipment,
include moulding design,making,teach casting
method and technical support also hot-sell and with a high
reputation in Vietnam,Malaysia,Iran,Dubai,Philippines etc.
1, One year warranty service.
2, Sending professional engineer to installation,
debugging and training.
3, Provide video for teaching, installation instruction, and other
relevant technical documents.
4, We have more than 20 years experienced casting engineer to
solve any your problem.
Here is our engineer installation and debugging in Vietnam.
Double Station Wax Injection Machine
