OSD Control Keys 6.4" Open Frame Lcd Monitor

OSD Control Keys 6.4" Open Frame Lcd Monitor thumbnail-1
OSD Control Keys 6.4" Open Frame Lcd Monitor thumbnail-2
OSD Control Keys 6.4" Open Frame Lcd Monitor thumbnail-3
OSD Control Keys 6.4" Open Frame Lcd Monitor thumbnail-4
OSD Control Keys 6.4" Open Frame Lcd Monitor thumbnail-5
OSD Control Keys 6.4" Open Frame Lcd Monitor thumbnail-6
OSD Control Keys 6.4" Open Frame Lcd Monitor photo-1
OSD Control Keys 6.4" Open Frame Lcd Monitor photo-2
OSD Control Keys 6.4" Open Frame Lcd Monitor photo-3
OSD Control Keys 6.4" Open Frame Lcd Monitor photo-4
OSD Control Keys 6.4" Open Frame Lcd Monitor photo-5
OSD Control Keys 6.4" Open Frame Lcd Monitor photo-6
US$ 260 - 290 MOQ: 1 Carton
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, panel pc
Screen Size:
Other, 6.4 inch
Contact Supplier Request Quote Chat Now
Shenzhen Pontron Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SheKou ChiWan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, panel pc
Screen Size Other, 6.4 inch
Response Time Other, 40ms, 40ms
Brightness 400cd/m
Interface Type D-Sub, DVI
Contrast Ratio 400:1
Resolution Other, 640*480, 640*480
Widescreen Yes
Panel Type TFT
Pixel Pitch 0.2025*0.203
Brand Name OEM
Model Number OPM-O6
Place of Origin Guangdong, China

                                   OSD control keys 6.4" Open Frame lcd Monitor





  • 6.4" VGA TFT LCD Panel support 640*480 pixels
  • Open frame structure with strengthen glass
  • Rugged construction design
  • Input signal : VGA + Audio
  • 400 cd/m2 brightness
  • OSD control keys to optimize the display
  • Build in 2x 2 Watts stereo speaker
  • Panel mounting with clip

Optional:

  • Video input (Composite )
  • DC power input ( 8 -30V dc input )
  • Touch Screen

Specifications:

LCD Panel

Display Type: 6.4" VGA TFT LCD
Screen resolution (Pixels): 640*480
Brightness: 400 nits
Contrast Ratio: 400: 1
Pixel Size: 0.2025*0.203
Maximun Color: 262K
Viewing angle ( L/R ,U/D ): 50/50 ,15/35
Response Time: 40 ms
Power Consumption: 4.8Watts
MTBF: 20,000 hrs.

Signal input

VGA ( 15 pin D-sub connector ) + Audio input ( audio jack )

Protect glass

3 mm strengthen glass

OSD

Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall

Touch Screen ( optional )

Internal USB or RS-232 interface controller
Type: Analog resistive type : 25VDC ≥ 20MΩ
Resolution: continuous
Light transmission: 80% or more
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 35 Million
Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux

Signal connectivity ( optional )

AV input (RCA)

DC power input ( optional )

Wide range DC 8V-30V input

Power Supply

Input: 100~240VAC,50/60Hz
Output: DC12V@ 4A /48W ,external ac adapter

Construction

Heavy duty steel

Environment

Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity: 10% to 95%@ 40°C , on-condensing
Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G
Shock: 30G peak acceleration (11 msec. duration)

Safety

CE/FCC/Rohs

Dimension W x H x D ( mm )

Dimensions :225x167x56mm
Packing Dimension:360x180x 300mm

Weight ( kgs )

NET weight: 2.3KG
Gross weight: 2.8KG

Ordering information:

OPM- 06

6.4" Industrial Open Frame Monitor, with VGA input

OPM-06T

6.4" Industrial Open Frame Monitor, with VGA input, with Touch screen and USB/ RS232 controller

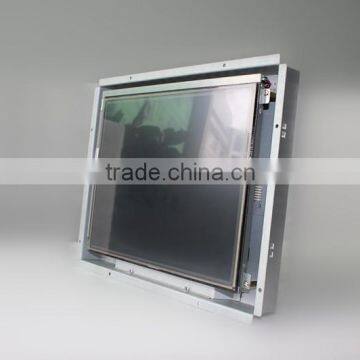

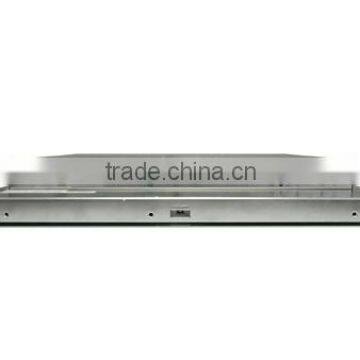

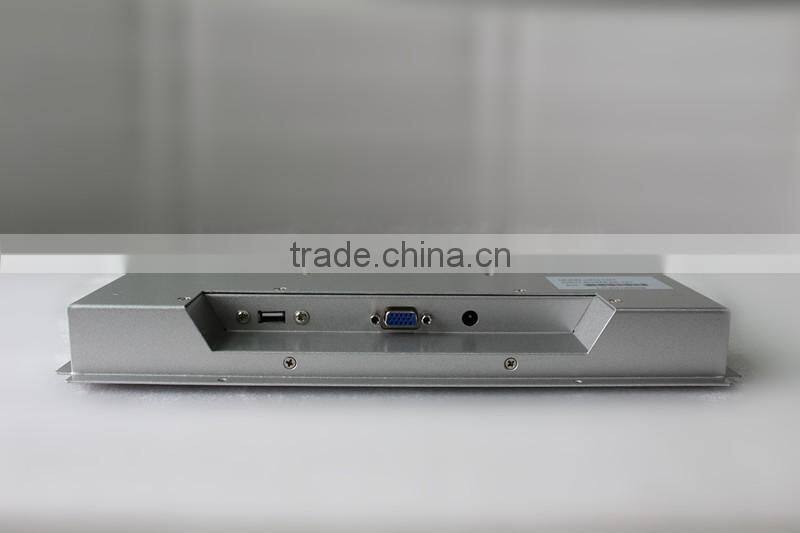

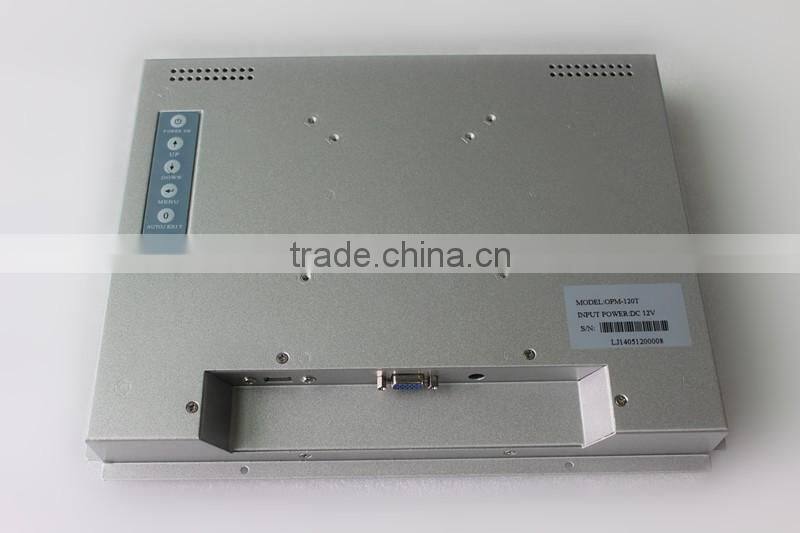

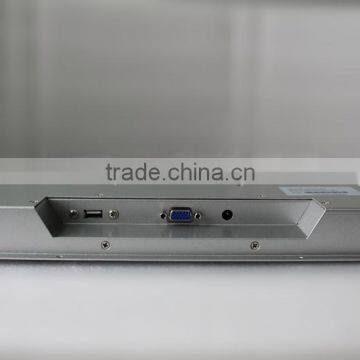

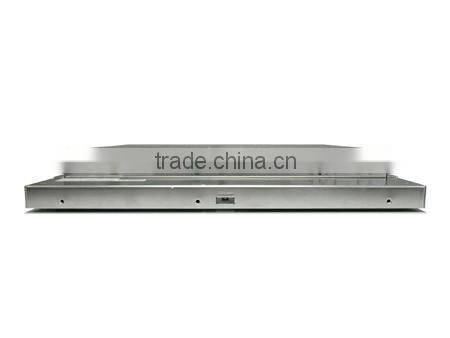

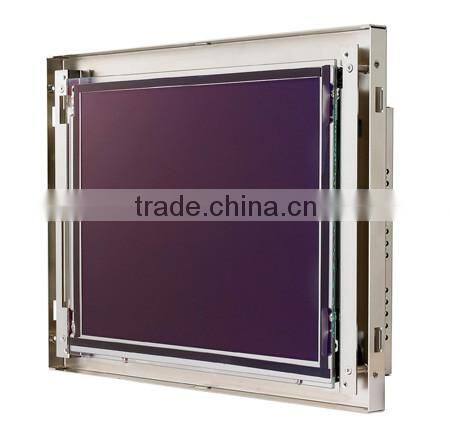

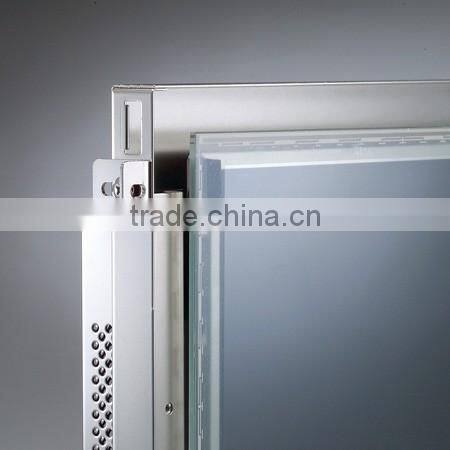

Product pictures:
