Window Operation System Lcd 10.4" industrial flat panel monitor
Product Main Features:
- 10.4" SVGA TFT LCD Panel support 800x600 pixels
- 6mm Aluminum front bezel with strengthen glass
- Rugged construction design
- Input signal : VGA (15 Pin D-sub)
- 400 cd/m2 brightness
- OSD control keys to optimize the display
- AC 100-240V wide range external ac adapter
- NEMA4 / IP 65 compliant front panel (Optional)
Product Introductions:
- IPM-104 is industrial grad LCD monitor with 10.4’’ FTF LCD screen, with high brightness of 400cd/m2, resolution of 800X600. Al-alloy front panel with rugged design, metal case.
- There are two way of the installation Panel mounting with clip and Meet standard VESA hole ( 75x75 and 100x100 mm ), support desk top stand / wall mount / swing arm mounting.
- It is a cost-effective industrial-grade display, and can be widely used in telecommunications, electricity, multimedia, defense, industrial automation equipment, manufacturing and other fields.
Product Specifications:
| LCD Panel | Display Type:10.4" SVGA TFT LCD Resolution:800*600 lor:262,144 colors Luminance:400cd/m2 View Angel:110°(H),80°(V) Pixel Pitch:97 x 0.297 Contrast Ratio:400 : 1 Response Time:5 ms Power Consumption:4 W LED MTBF:50,000hrs |
|---|---|
| Signal input | VGA ( 15 pin D-sub connector ) |
| Protect glass | 3 mm strengthen glass |
| OSD | Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall |
| Touch Screen ( optional ) | Internal USB or RS-232 interface controller Type: Analog resistive type : 25VDC ≥ 20MΩ Resolution: continuous Light transmission: 80% or more Power consumption:≤5V @1mA Surface hardness:3H Operating force:≤100g Life expectancy:35 Million Operation system:Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux |
| Power Supply | Input: 100~240VAC,50/60Hz Output: DC12V@ 4A /48W ,external ac adapter |
| Construction | Heavy duty steel and aluminum front panel |
| Environment | Operating temperature: 32 °F~113 °F (0 °C to 45 °C) Storage temperature: -4 °F~140 °F (-20 °C to 60 °C) Storage humidity: 10% to 95%@ 40°C , on-condensing Vibration: 10 ~ 150Hz, 0.15mm 10 cycles 1G Shock: 30G peak acceleration (11 msec. duration) |
| Safety | CE/FCC/Rohs |
| Dimension W x H x D ( mm ) | Dimensions: 314 x 220 x 42.8mm Packing Dimension:425x375x150mm |
| Weight( kgs ) | NET weight: 3.54KG Gross weight: 4.63KG |
Ordering Information:
| IPM-104 | 10.4" Industrial Flat Panel Monitor, with VGA input |
| IPM-104 | 10.4" Industrial Flat Panel Monitor, with VGA input, with Touch screen. |

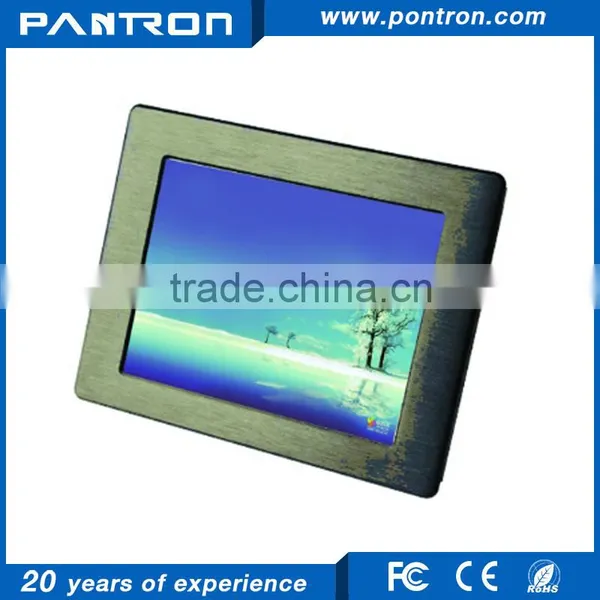

Product Pictures:
More Products:
Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.
Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.
We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.
In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.
PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.
Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).
Delivery time: Within 1day after order and samples are confirmed.
