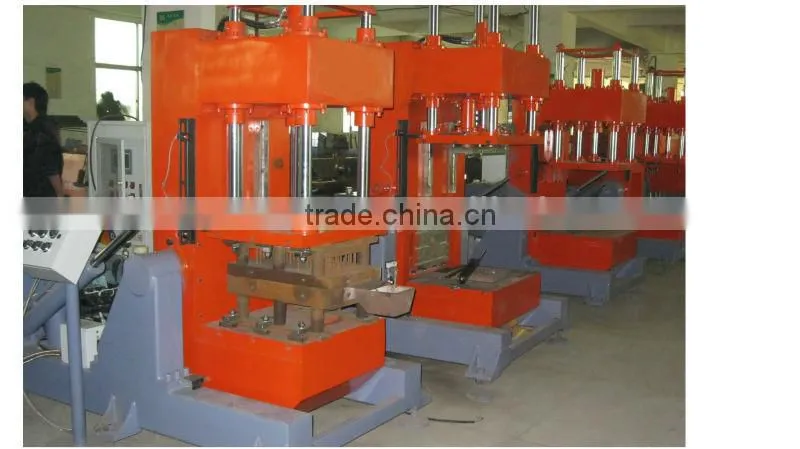

High Efficiency Aluminium/zinc/brass Die Casting Machine Price Aluminium Gravity Casting Machine

Name: High Efficiency Aluminium/zinc/brass Die Casting Machine Price Aluminium Gravity Casting Machine
Brand: Xinxing
SKU: 102511099

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

Xinxing

Xinxing Casting Technology Development Department

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiangmen port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name Xinxing

Voltage 380V,440V

Power(W) Depend

Dimension(L*W*H) different as per different model

Weight different as per different model

Certification ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

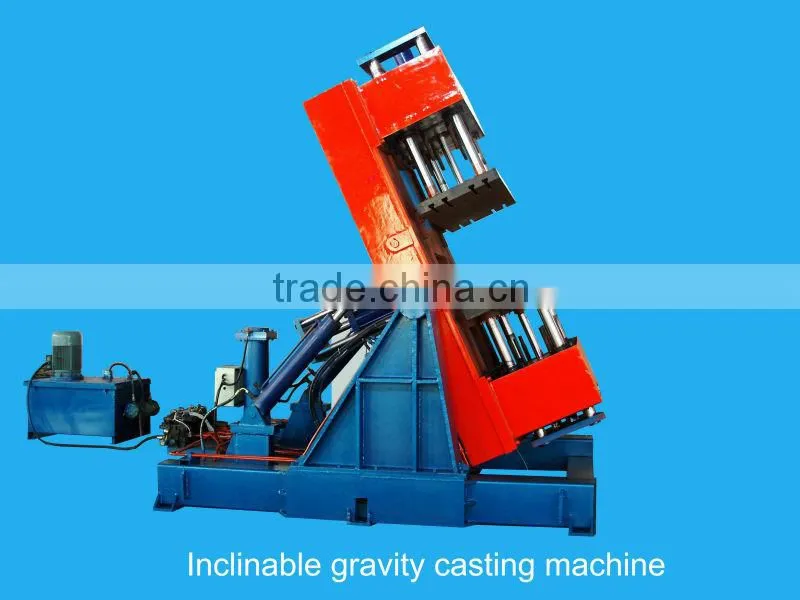

Inclinable dia casting machine

Advantages

Parameter:

Main parameter	ZJQ-650S/640S	ZJQ-750S/850S	ZJQ-1080S	ZJQ-1660S
Mold template(mm)	600500/600400	700500/800500	1000*800	1600*600
Left&right mold minimum closing distance(mm)	280	350/600	600	600
Clamping cylinder diameter/bar diameter(mm)	Φ100/55	Φ125/70	Φ125/70	Φ160/80
Right clamping mold cylinder stroke(mm)	300/250	300/600	600	550
Left clamping mold cylinder stroke(mm)	300/250	300/600	300	350
Max. clamp force (KN)	65	100	120	200
Max. open force (KN)	90	120	100	160
Max. bottom core pulling force (KN)	65	100	100	120
Bottom core pulling stroke (KN)	150	150	100	250
Mold pre-heating way	Electric heating
Mold heating max. power(KW)	30	45	60	60
Hydraulic station rated power(KW)	7.5	7.5	11	15
Hydraulic station system pressure grade(MPa)	16
Hydraulic station working pressure (MPa)	12
Working platform tilting angle	0-90°
Working platform tilting speed	4°/S≤V≤10°/S
Power source	AC 380V 50Hz
Mold temperature control	Digital display temperature control, any setting
Operating mode	Manual/Single recycle automatic/full automatic
