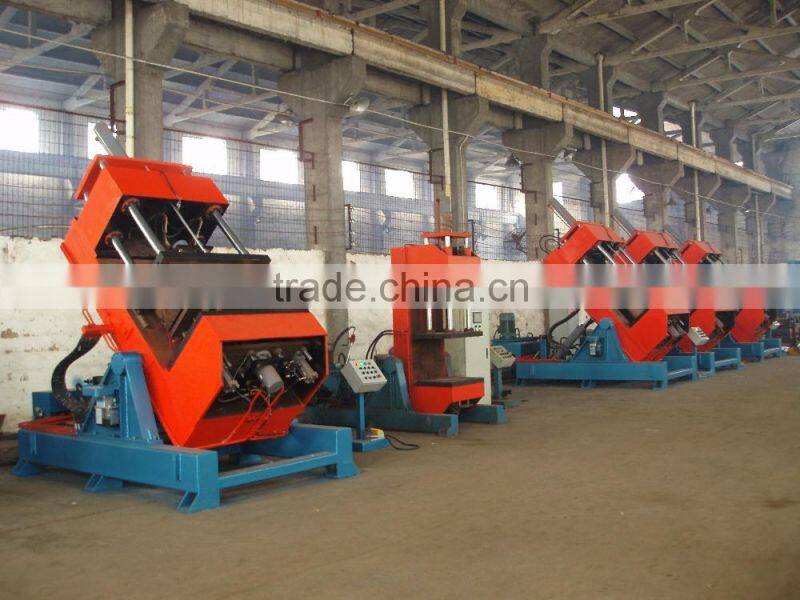

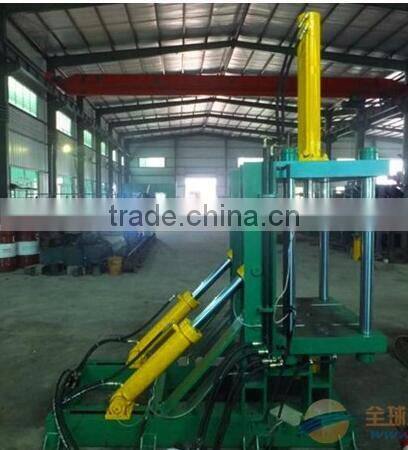

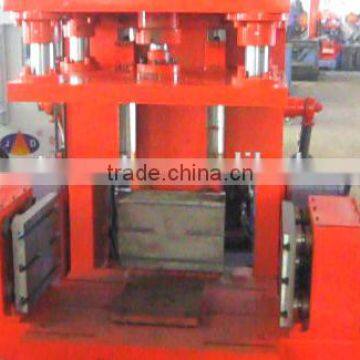

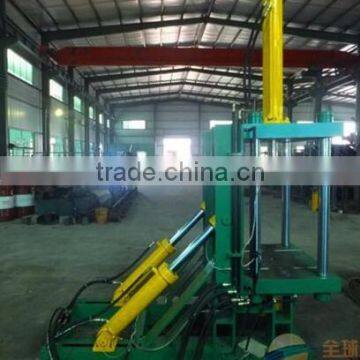

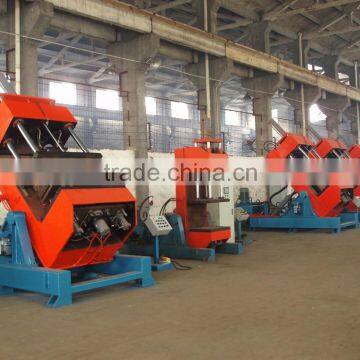

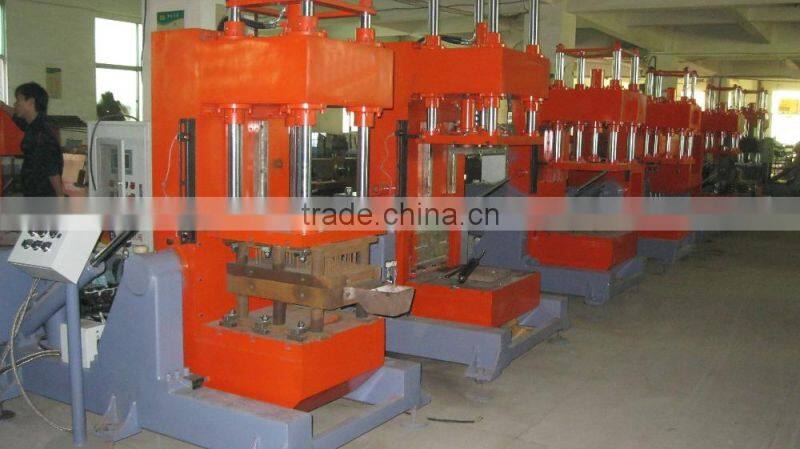

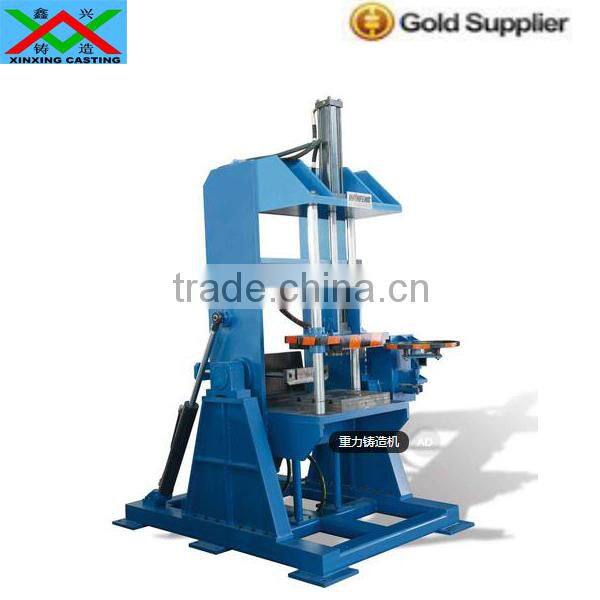

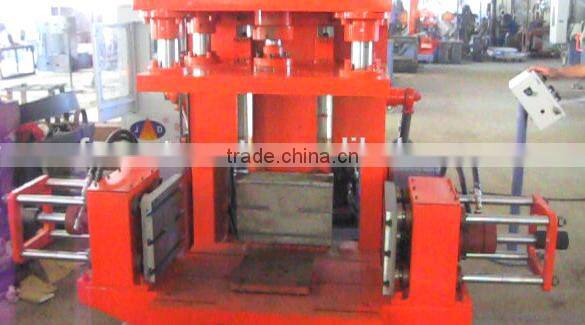

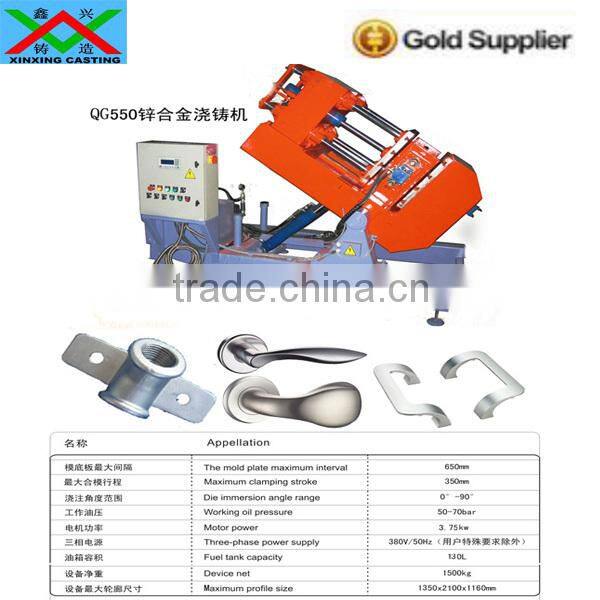

Gravity casting machine
Main technical parameters:
Size of the mold (W * H) |
600×500m |
Max. core pulling strength |
65KN |
Opening mould stroke of right moving mould board |
250mm |
Worktable tilting angle |
can set up any angle |
Opening mould stroke of left moving mould board |
250mm |
Worktable tilting speed |
4°/S≤V≤ 8°/S |
Max. clamping force |
90KN |
Power source |
AC3 380V 50HZ |
Max. opening force |
65KN |
Hydraulic station rated power |
7.5KW |
Min. distance between the left & right mould board |
300 ~280mm |
Pressure grate of hydraulic system |
16Mpa |
Cylinder / rod dia of the left & right mould-clamping cylinder |
φ100mm/φ55mm |
Working pressure of hydraulic system |
12Mpa |
Ejecting core cylinder stroke |
200mm |
Heating power |
16Kw |
Cylinder / rod dia of ejecting core cylinder |
φ100mm/φ55mm |
|
|
1, One year warranty service.
2, Sending professional engineer to installation,
debugging and training.
3, Provide video for teaching, installation instruction, and other
relevant technical documents.
4, We have more than 20 years experienced casting engineer to
solve any your problem.
