XD12038A/C 120mm Both Ratation ac Centrifugal Fan

XD12038A/C 120mm Both Ratation ac Centrifugal Fan thumbnail-1
XD12038A/C 120mm Both Ratation ac Centrifugal Fan photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Deqing Xinda Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Mounting Free Standing
Blade Material Plastic
Place of Origin Zhejiang, China
Brand Name Xinda
Model Number 12038A/C
Voltage 230V
Power 18W
Air Volume 135CFM
Speed 2600RPM
Certification CE, ROHS
After-sales Service Provided No overseas service provided

Specifications

1.Our fan passed a standard CE attestation
2.Passed the ROHS standard
3.We can make any model made according to your require

Product Description :

1.Housing:Aluminum  alloy
2.Size:120*120*38mm
3.Blade:PBT Engineering Plastics
I4.nsulation Resistance:10M Ω at 500VDC between lead and frame
5.Dielectric Strength:1 min at 1500V/50-60Hz,currentOperation Temperature:-20°C~80°C
6.Operation Humidity:20%~85%
7.Working Voltage:85V---125V for 110V and 190V---250V for 220V
8.Life at 25°C:Ball bearing 60000hr and sleeve bearing 30000hr
9.Packing:40PCS/CTN
10.Packing size:51*30*29cm
11.G.W:23kgs  N.W:22kgs
12.Lead:3 wire(red-blue-black)

XD12038AC

Freq
Hz

Voltage
VAC

Bearing
Style

Current
AMP

Power
Watts

uF/v

Speed
RPM

 Direction

Airflow
CFM

Pressure
mmH2O

Noise
dBA

Weight
P/N
XD12038A1HSL 50/60 230 S 0.09/0.08 21/18 0.47 2600/3000 CCW

155/170

 8.3/9.3  56/60 500g
XD12038A1HBL 50/60 230 B 0.09/0.08 21/18 2600/3000 CCW

155/170

 8.3/9.3  56/60
XD12038A2HSL 50/60 230 S 0.10/0.08 22/19 2600/3000 CCW

155/170

 8.3/9.3  56/60
S 0.09/0.07 21/18 2660/3090 CW

135/155

 7.6/8.5  63/68
XD12038A2HBL 50/60 230 B 0.09/0.08 22/19 2600/3000 CCW

155/170

 8.3/9.3  56/60
B 0.09/0.08 21/18 2660/3090 CW

135/155

 7.6/8.5   63/68
S Sleeve bearing, B Ball bearing For the terminal connect version, change L in the Model to T

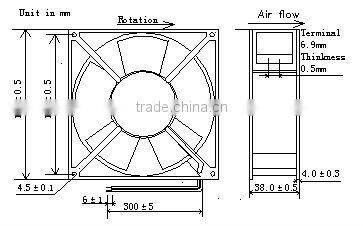

XD12038A/C 120mm both ratation ac centrifugal fan





Conversion Table of Airflow



CFM

m3/sec

m3/min

ft3/sec

2118

1

60

35.31

35.31

0.01666

1

0.5885

60

0.02832

1.69833

1

1

0.00047

0.02832

0.01666



Conversion Table of Air Pressure



mmH2O

inH2O

Pa=N/m

afm

1

0.03939

9.80665

0.00009

25.4

1

249

0.00246

0.10197

0.0040

1

0.00001

10332

407.1

101325

1
