Help CenterOffer M75 Series Rotor Motor
US$ 35 - 65
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
XINDAFAN
Model Number:
M75
Type:
Other, xindafan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai&Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Offer M68 Series Rotor MotorUS$ 30 - 60MOQ: 1000 Pieces -
Xinda8025AB 110v/220v ac Axial Cooling FanUS$ 2.1 - 2.7MOQ: 500 Pieces
-
XD12038A/C 120mm Both Ratation ac Centrifugal FanNegotiableMOQ: 1000 Pieces
-
XD8025-B AC Cooling FanUS$ 1.89 - 2.09MOQ: 200 Pieces
-
Offer 180*180*60 Xindafan Air Cooling FanUS$ 4.05 - 4.85MOQ: 480 Pieces
Brand Name
XINDAFAN
Model Number
M75
Type
Other, xindafan
Frequency
2800/3200
Output Power
98/120
Protect Feature
Totally Enclosed
Phase
Three-phase
Certification
Other, xindafan
AC Voltage
208-230 / 240 V
Place of Origin
China
Efficiency
IE 2
Specifications

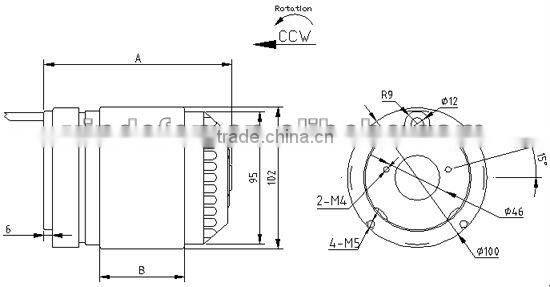

Offer M75 Series rotor motor1.long lifetime
2.Good material
Offer M75 Series rotor motor
Insulation Resistance: 10M Ω at 500VDC between lead and frame
Dielectric Strength: 1 min at 1500VAC/50-60HZ, current <5mA
Operation Temperature: -10°C~55°C
Operation Humidit: 20%~85%
Working Voltage:85V---125V for 110V and 190V---250V for 220V.
Life at 25°C: Ball bearing 40000hr
| Model | Hz |
VAC |
Phase | Bearing | AMP | Watts |
RPM |
A | B | Shaft Diameter |
μF/V |
| XDA350-M7535 E4 | 50/60 | 230 | 1 | B | 0.55/0.80 | 130/190 | 1400/1600 | 109 | 35 | Ø12.00 |
4/400 |
| XDA350-M7535 D4 | 50/60 | 380 | 3 | B | 0.32/0.45 | 130/190 | 1400/1600 | 109 | 35 | Ø12.00 |
-- |
| XDA350-M7535 E6 | 50/60 | 230 | 1 | B | 0.30/0.36 | 65/90 | 950/1100 | 109 | 35 | Ø12.00 |
2/400 |
| XDA350-M7535 D6 | 50/60 | 380 | 3 | B | 0.19/0.21 | 65/90 | 950/1100 | 109 | 35 | Ø12.00 |
-- |
| XDA400-M7548 E4 | 50/60 | 230 | 1 | B | 0.70/1.00 | 160/240 | 1400/1600 | 122 | 48 | Ø12.00 |
6/400 |
| XDA400-M7548 D4 | 50/60 | 380 | 3 | B | 0.40/0.45 | 160/240 | 1400/1600 | 122 | 48 | Ø12.00 |
-- |
| XDA400-M7548 E6 | 50/60 | 230 | 1 | B | 0.55/0.75 | 120/170 | 950/1100 | 122 | 48 | Ø12.00 |
3/400 |
| XDA400-M7548 D6 | 50/60 | 380 | 3 | B | 0.35/0.40 | 120/170 | 950/1100 | 122 | 48 | Ø12.00 |
-- |
| XDA450-M7561 E4 | 50/60 | 230 | 1 | B | 0.90/1.30 | 240/350 | 1400/1600 | 135 | 61 | Ø12.00 |
8/400 |
| XDA450-M7561 D4 | 50/60 | 380 | 3 | B | 0.45/0.55 | 240/350 | 1400/1600 | 135 | 61 | Ø12.00 |
-- |
| XDA450-M7561 E6 | 50/60 | 230 | 1 | B | 0.75/0.90 | 160/210 | 950/1100 | 135 | 61 | Ø12.00 |
4/400 |
| XDA450-M7561 D6 | 50/60 | 380 | 3 | B | 0.30/0.38 | 160/210 | 950/1100 | 135 | 61 | Ø12.00 |
-- |
| S: sleeve bearing B: ball bearing | |||||||||||
|
The data of regular product in picture is for your reference only, please refer to the data of actual product, we can make any model custom made.
