Offer XD3010 DC Mini Fan

Offer XD3010 DC Mini Fan thumbnail-1
Offer XD3010 DC Mini Fan photo-1
US$ 1.677 - 1.777 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
XINDAFAN
Model Number:
XD3010
Contact Supplier Request Quote Chat Now
Deqing Xinda Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name XINDAFAN
Model Number XD3010

Specifications

Offer XD3010 DC mini Fan
1.material:PBT Engineering Plastics;
2.size:30*30*10mm(mini);

Offer XD3010 DC mini Fan

1.Housing:PBT Engineering Plastics
2.Size:30*30*10mm
3.Blade:PBT Engineering Plastics
4.Insulating aterial centigrade:10MΩ at 500VDC between lead and frame
5.Insulation Resistance:500VAC/min ,current<5mA
6.Working temperature:-20°C~80°C
7.Working humidity:20%~85%
8.Working pressure:Rated Voltage ±15%
9.Normal temperature working time: ball bearing hour's five,oil bearing hour's three.
10.Packing:500PCS/CTN
11.MEAS:25*25*20cm
12.G.W:6kgs    N.W:5kgs

Model
XD3010DC

Voltage
VDC

Bearing
Style

Current
AMP

Power
Watts

Speed
RPM

Airflow
CFM

Pressure
mmH2O

Noise
dBA

Weight

P/N

XD3010D05HS

 5 S 0.10 0.50 7200 3.1 3.10 21.5 9g

XD3010D05MS

 5 S 0.08 0.40 6200 2.8 2.4

20.0

XD3010D05LS

 5 S 0.06 0.30 5300 2.4 1.7 18.5

XD3010D05HB

 5 B 0.10 0.50 7800 3.3 3.3

22.5

XD3010D05MB

 5 B 0.08 0.40 6800 3.0 2.6 20.5

XD3010D05LB

 5 B 0.06 0.30 5900 2.6 1.8

18.9

XD3010D12HS

 12 S 0.09 1.08 7200 3.1 3.10 21.5

XD3010D12MS

 12 S 0.08 0.96 6200 2.8 2.4 20.0

XD3010D12LS

 12 S 0.07 0.84 5300 2.4 1.7 18.5

XD3010D12HB

 12 B 0.09 1.08 7800 3.3 3.3 22.5

XD3010D12MB

 12 B 0.08 0.96 6800 3.0 2.6 20.5

XD3010D12LB

 12 B 0.07 0.84 5900 2.6 1.8 18.9
S Sleeve bearing B Ball bearing

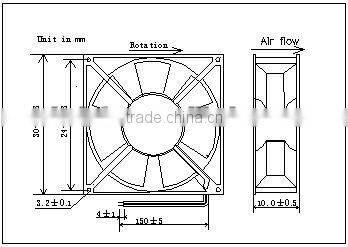

Offer XD3010 DC mini Fan

Conversion Table of Airflow

CFM

m3/sec

m3/min

ft3/sec

2118

1

60

35.31

35.31

0.01666

1

0.5885

60

0.02832

1.69833

1

1

0.00047

0.02832

0.01666

Conversion Table of Air Pressure

mmH2O

inH2O

Pa=N/m

afm

1

0.03939

9.80665

0.00009

25.4

1

249

0.00246

0.10197

0.0040

1

0.00001

10332

407.1

101325

1


The data of regular product in picture is for your reference only, please refer to the data of actual product, we can make any model custom made.
