Offer XD5015 DC Fan Cooler

Offer XD5015 DC Fan Cooler thumbnail-1
Offer XD5015 DC Fan Cooler photo-1
US$ 0.46 - 0.56 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Blade Material:
Plastic
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Deqing Xinda Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type DC
Blade Material Plastic
Place of Origin Zhejiang, China
Brand Name XINDAFAN
Model Number XD5015DC
Voltage 12V
Power 1.44
Air Volume 6.6
Speed 7500
Certification ROHS

Specifications

Offer XD5015 DC fan cooler
1.materal:PBT Engineering Plastics

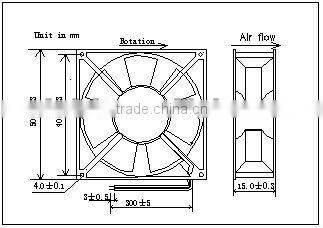

2.size:50*50*15
3.DC fan cooler

Offer XD5015 DC fan cooler

1.Housing:PBT Engineering Plastics
2.Size:50*50*15mm
3.Blade:PBT Engineering Plastics
4.Insulating aterial centigrade:10MΩ at 500VDC between lead and frame
5.Insulation Resistance:500VAC/min ,current<5mA
6.Working temperature:-20°C~80°C
7.Working humidity:20%~85%
8.Working pressure:Rated Voltage ±15%
9.Normal temperature working time: ball bearing hour's five, oil bearing hour's three.
10.Packing:400PCS/CTN
11.MEAS:30.5*30*29cm
12.G.W:8kgs    N.W:7kgs



Model
XD5015DC

Voltage
VDC

Bearing
Style

Current
AMP

Power
Watts

Speed
RPM

Airflow
CFM

Pressure
mmH2O

Noise
dBA

Weight

P/N

XD5015D12HS

 12 S 0.17 2.04 5000 14.7 4.0 30.9 27g

XD5015D12MS

 12 S 0.13 1.56 4500 13.1 3.2

29.3

XD5015D12LS

 12 S 0.10 1.20 3800 11.0 2.3 26.3

XD5015D12HB

 12 B 0.17 2.04 5200 15.0 4.1

31.3

XD5015D12MB

 12 B 0.13 1.56 4700 13.5 3.3 30.0

XD5015D12LB

 12 B 0.10 1.20 3900 11.6 2.4

27.3
S Sleeve bearing B Ball bearing





Offer XD5015 DC fan cooler

Conversion Table of Airflow

CFM

m3/sec

m3/min

ft3/sec

2118

1

60

35.31

35.31

0.01666

1

0.5885

60

0.02832

1.69833

1

1

0.00047

0.02832

0.01666

Conversion Table of Air Pressure

mmH2O

inH2O

Pa=N/m

afm

1

0.03939

9.80665

0.00009

25.4

1

249

0.00246

0.10197

0.0040

1

0.00001

10332

407.1

101325

1


The data of regular product in picture is for your reference only, please refer to the data of actual product, we can make any model custom made.
