Import Components Shell Core Shooter Machine

Import Components Shell Core Shooter Machine thumbnail-1

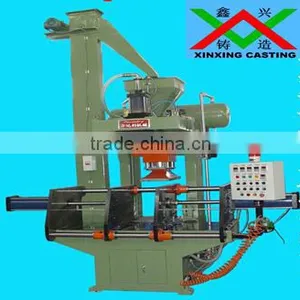

Import Components Shell Core Shooter Machine thumbnail-2
Import Components Shell Core Shooter Machine thumbnail-3
Import Components Shell Core Shooter Machine photo-1
Import Components Shell Core Shooter Machine photo-2

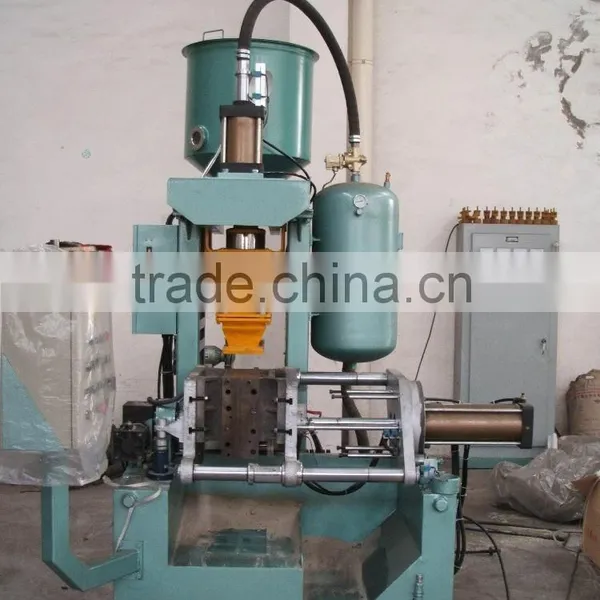

Import Components Shell Core Shooter Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Xinxing
Contact Supplier Request Quote Chat Now
Xinxing Casting Technology Development Department
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Xinxing
Model Number Z9606A
Voltage 380V/220V/440V
Power(W) 11.6KW
Weight 1.3T
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Core Shooting  Machine



1. Application:

This machine is mainly used to make the solid sand cores, vertical parted type, single action dies



2. Main technical parameter:

 Item  Parameters
  Suitable sand type: phenolic resin coated sand
  Max. pattern plate size                    650×600×(300+300mm)
  Max. mould size                            600×600mm
  Max. weight of sand core                   15Kg
  Cylinder diameter/rod diameter
  of mould closing cylinder  		 φ160/φ45 mm
  Stroke of mould closing cylinder           350mm
  Opening size of pattern plate              1300mm
  Heating method of the sand box             electric heating
  Max. heating power of the sand box         20KW
  Compressed air pressure                    0.5~0.6Mpa
  Total diameter of the inlet pipe      1 inch
  Total air consumption                      0.3 m3/ per sand shooting
  Power source   AC3 380V 50HZ
  Operation method                           Manual,single-cycle automatic
  Sand hopper capacity(Extra large type)       200 Kg
  Mould Temperature control             Digitaltemperature controller,
free setting

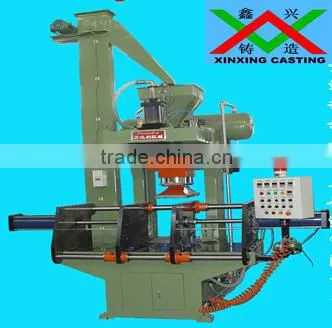

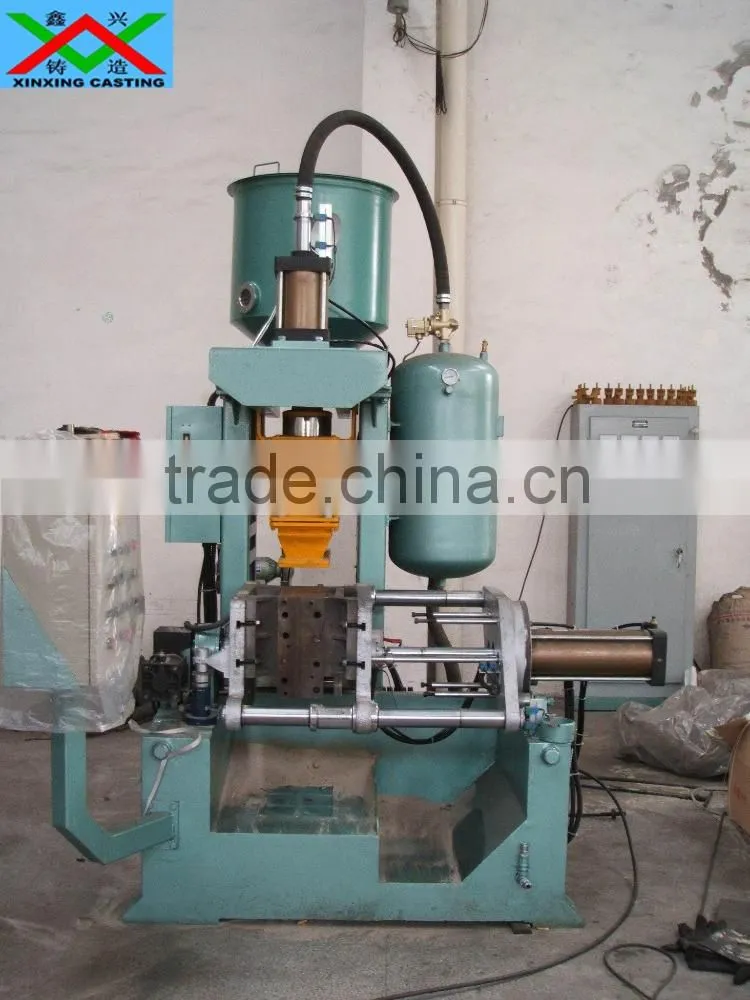

Import Components shell Core Shooter MachineImport Components shell Core Shooter Machine



Import Components shell Core Shooter Machine



Our client

Import Components shell Core Shooter Machine

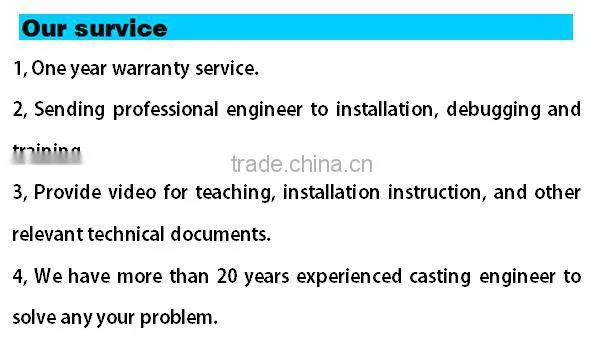

After-Sales Service

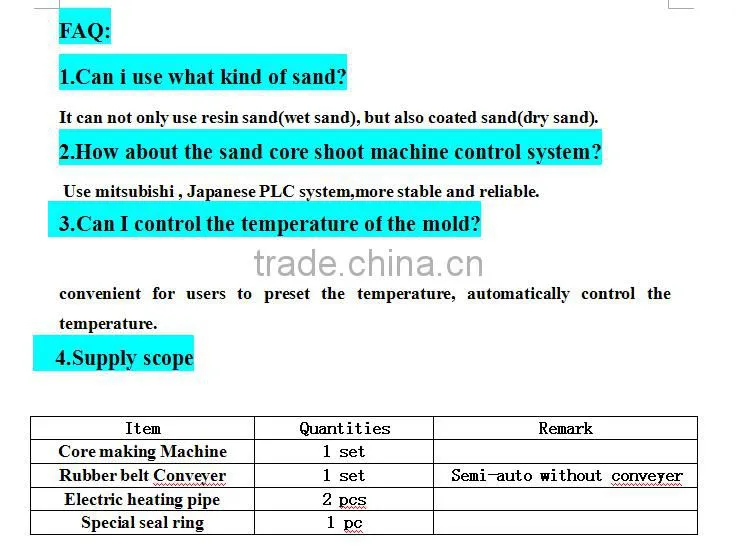

Import Components shell Core Shooter Machine





Import Components shell Core Shooter Machine
