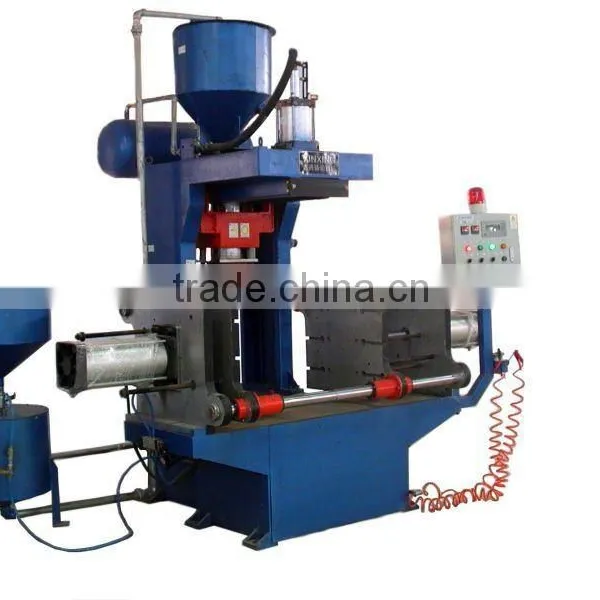

Semi-auto Core Making Machine
1. Application:
This machine is mainly used to make the sand cores for the sand casting industries.
2. Machine Feature:
1).Vertical assigning type, fetching core in level line, with catching core conveyor(semi-automatic without conveyor ).
2).Three kinds of functions as manual, single-cycle automatic, automatic circulation .
3).Import pneumatic, electric component, Japanese Mitsubishi PLC controls, high dependability.
4).The two-way air cylinder core, with bottom pulling core, suitable for making various sand core.
5).It is convenient to install mould, and can regulate from side to side, from head to foot.
6).The sand tube has vibration organizations, especially suitable for the bad mobility resin sand.
3. Main technical parameters:
Max mould size |
400×300×200(mm) |
Max close mould distance |
300mm |
Max sand core weight |
3kg |
Heating power |
6×2×0.8kw |
Periods circle |
30s |
Compressed air pressure |
0.4-0.8MPa |
Core-pulling process |
60mm |
Machine weight |
1800kg |
1, One year warranty service.
2, Sending professional engineer to installation,
debugging and training.
3, Provide video for teaching, installation instruction, and other
relevant technical documents.
4, We have more than 20 years experienced casting engineer to
solve any your problem.
