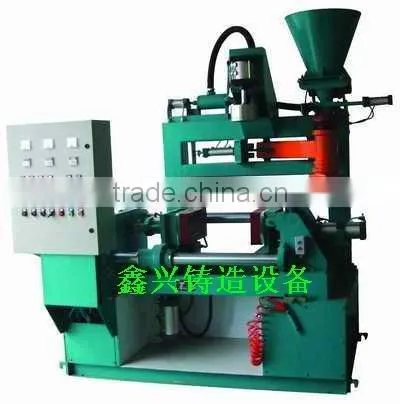

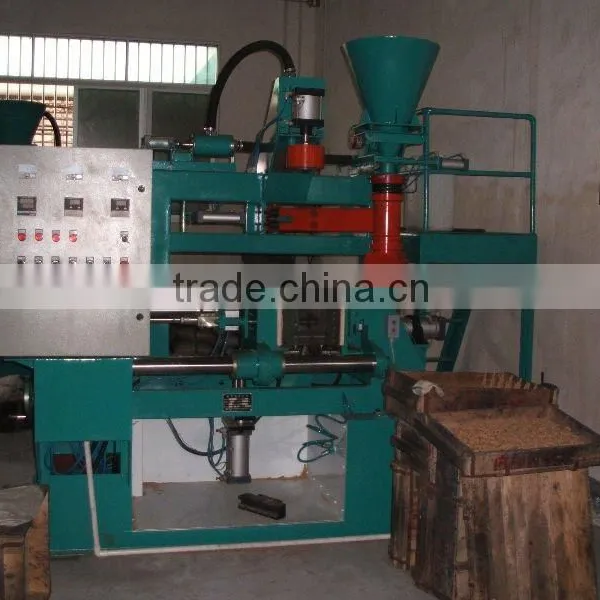

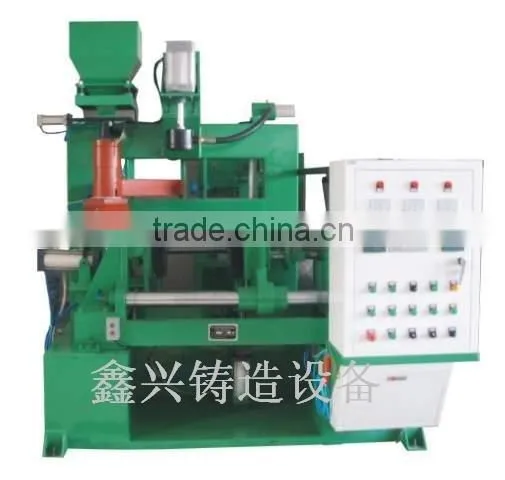

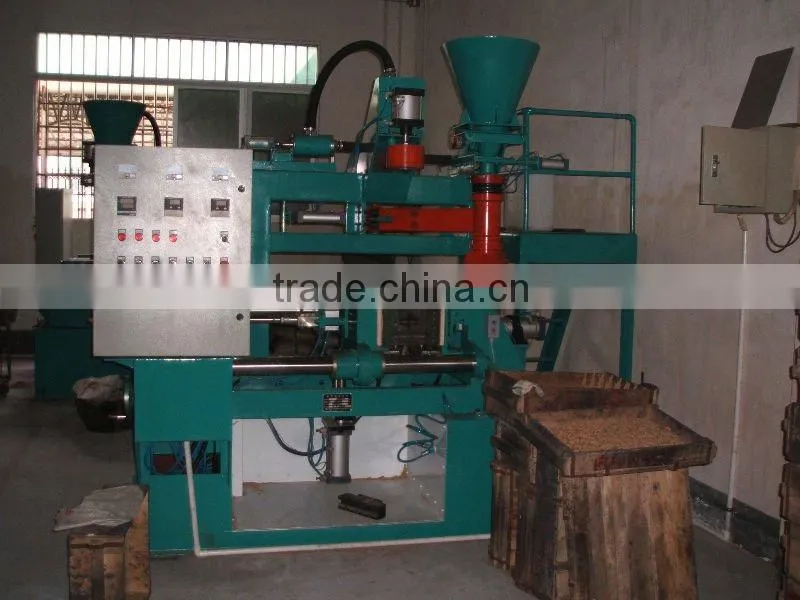

Durable Semi-auto Sand Core/shell Core Shooting Machine

Name: Durable Semi-auto Sand Core/shell Core Shooting Machine
Brand: Xinxing
SKU: 102507645
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Xinxing

Xinxing Casting Technology Development Department

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Jiangmen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name Xinxing

Model Number Z853C

Voltage 380V/220V/440V

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Semi-auto Core Shooter

1. Machine features:

1) Vertical parted type, catching core in level line, and with core conveyor(semi-automatic without conveyor ).

2) Three kinds of functions: manual, single-cycle automtic,automatic circulation .

3) Importing pneumatic, electric component, be controled by Japanese Mitsubishi PLC, high dependability.

4) Two-way air cylinder to eject core, and with bottom core pulling, suitable for making various kinds of sand core.

5) It’s convenient to install mould, and can regulate from side to side,from head to foot.

6) The sand storage hopper has vibration mechanism,especially suitable for the bad mobility resin sand.

2. Main technical parameters:

Max. mould size	350×300×200(mm)	Period circle	30s
Max. closing mould distance	300mm	Impetus (pneumatic)	0.4-0.8MPa
Max. sand core weight	3kg	Loose core stroke	60mm
Heating power	12×0.8KW	Machine weight	~1950kg
Heating plate size (L×H)	350×200(mm)	Max. core-box size(L,W,T)	350×300×200(mm)
Production rate	40~90pcs/hour	Shooting head press stroke	≤50(mm)
Mold opening stroke	≤300(mm)	Ejecting core cylinder stroke	≤30(mm)
Loosing core cylinder stroke	≤150(mm)	Sand storage hopper capacity	52kg
Vibrating motor power	0.15KW	Using compressed air pressure	Max:0.7 Mpa
Power supplies	3 phase AC,380V	External dimension of the machine(L×W×H)	2160×1310×2100(mm)
