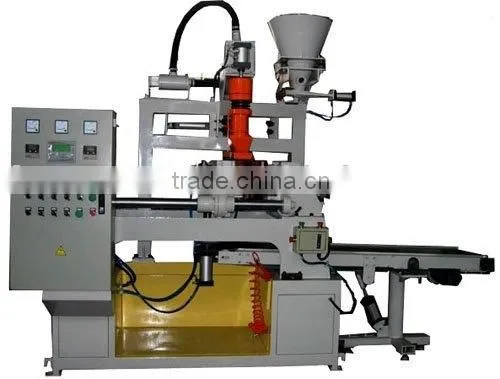

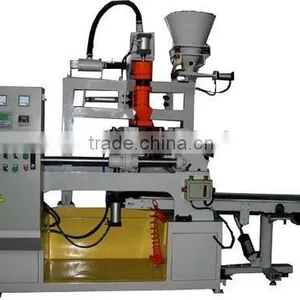

Full-auto Core shooter
1. Application:
This machine is mainly used to make the sand core & shell core for the sand casting industries.
2. Machine Feature:
1).Vertical assigning type, fetching core in level line, with catching core conveyor(semi-automatic without conveyor ).
2).Three kinds of functions as manual, single-cycle automatic, automatic circulation .
3).Import pneumatic, electric component, Japanese Mitsubishi PLC controls, high dependability.
4).The two-way air cylinder core, with bottom pulling core, suitable for making various sand core.
5).It is convenient to install mould, and can regulate from side to side, from head to foot.
6).The sand tube has vibration organizations, especially suitable for the bad mobility resin sand.
3. Main technical parameter:
Max. mould size |
350×300×200(mm) |
Max. close mould distance |
300mm |
Max. sand core weight |
3kg |
Heating power |
6×2×0.8kw |
Periods circle |
30s |
Impetus(pneumatic impetus) |
0.4-0.8MPa |
Core -pulling process |
60mm |
Machine weight |
1800kg |
Machine details:
1. Power control cabinet
2. Shooting head & mould template
3.Air cylinder
4. Sand hopper
5. Machine complete looking
6. Sand core samples which made for clients before
Our services:
1. Reply your inquriy and answer your questions at any time you need.
2. We have more than 20 years casting experience which can supply you the professional casting solution, help you to use low investment to get great profit.
3. The machines can be customized, manufactured by high quality material, durable.
4. We had sold these kind of machine to many countries such as Vietnam, Azerbaijan, Argentina,etc. Get good reputation.
