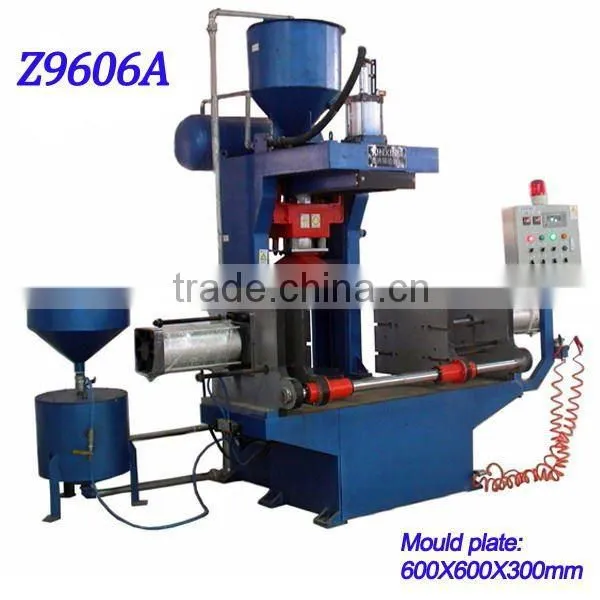

Sand Core Shooting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Xinxing
Model Number:
Z9606A
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z9606A Core Shooter With Big Size Low PriceNegotiableMOQ: 1 Set -
Manpower and Time Saving Full-auto Core ShooterNegotiableMOQ: 1 Set
-
Foundry Machine Auto Core/semi-automatic Shooter Machine With Removable ShooterNegotiableMOQ: 1 Set
-
Imported Component Full-automatic Core ShooterNegotiableMOQ: 1 Set
-
Full-automatic Sand Core Shooting MachineNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Xinxing
Model Number
Z9606A
Power(W)
380v/220v
Warranty
1 year
After-sales Service Provided
No overseas service provided
Sand Core Making Machine
Application:
This machine is mainly used to make the solid sand cores, vertical parted type, single action dies
Main technical parameter:
| Item | Parameters |
| Suitable sand type: | phenolic resin coated sand |
| Max. pattern plate size | 650×600×(300+300mm) |
| Max. mould size | 600×600mm |
| Max. weight of sand core | 15Kg |
| Cylinder diameter/rod diameter of mould closing cylinder |
φ160/φ45 mm |
| Stroke of mould closing cylinder | 350mm |
| Opening size of pattern plate | 1300mm |
| Heating method of the sand box | electric heating |
| Max. heating power of the sand box | 20KW |
| Compressed air pressure | 0.5~0.6Mpa |
| Total diameter of the inlet pipe | 1 inch |
| Total air consumption | 0.3 m3/ per sand shooting |
| Power source | AC3 380V 50HZ |
| Operation method | Manual,single-cycle automatic |
| Sand hopper capacity(Extra large type) | 200 Kg |
| Mould Temperature control | Digitaltemperature controller, free setting |
