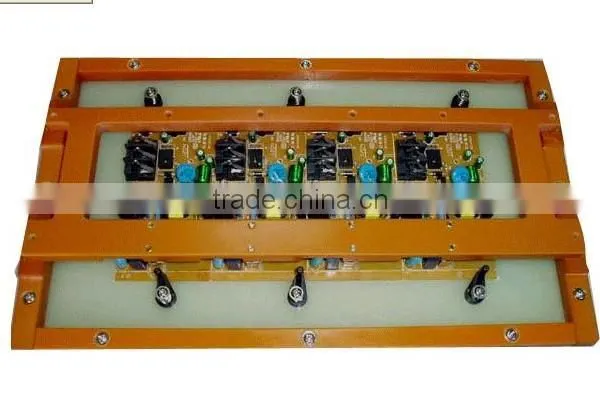

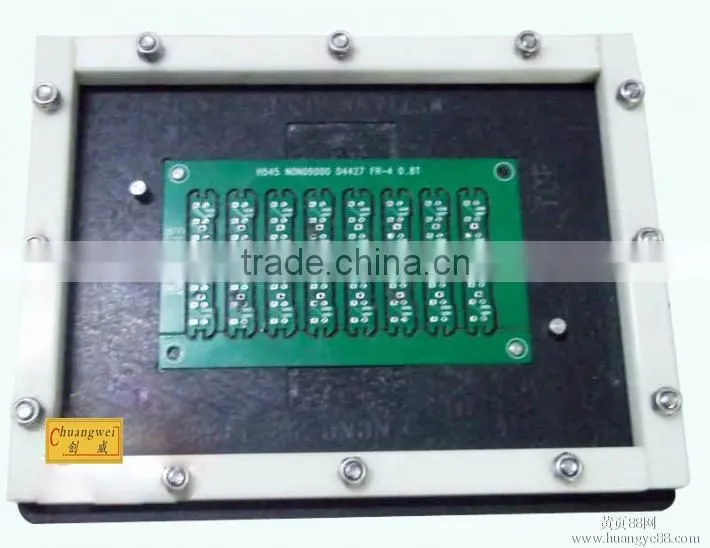

FUNCITIONAL FIXTURE FOR WAVE SOLDERING AND REFLOW SOLDERING

Description for the pallet :

Durostone is a glass fiber compound which designed to satisfy different needs on painting of PCB ,and its a heavyduty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. Durostone is manufactured by using Polyester, Vinylester, Epoxid- and modified Epoxy resins combined with glass fibers.

It can keep it’s mechanical strength,smoothness and original color when continuously used under the temperature of 280°c (max. working temperature below 385 degree 10~20sec). It’s applicable in ROHS applicance production line under high temperature continuously.this can improve PCB quality during the wave soldering to prevent pollution of gold_finger or contract hole caused by human contact.

Pallet  Material properties :

1)High mechanical strength

2)High temperature resistance( operating temperature up to 384 degree)

3)Good mechanical strength (low density)

4)Light weight

5)Low thermal conductivity
6) Less distortion

7)High mechanical strength.10)Long life

8)Superior dimensional stability.

9)Resistance to chemical corrosion

10)low water absorption

11)easy processing and excellent physical properties.

 Durostone properties:

1.PCBand eletronic industries including fixtures for insulation test,arry an irregular shape solder pallet

 2.Carry an irregular shape solder pallet

 3.Smoothly surface, good endurance, applicable for Teflon spray painting

 4. wave soldering

 5.reflow soldering

 6.SMT surface mounting technology,

 7.pass stove tray and clamps for flow conwection oven

 8.Prevent the deformation of the solder pallet during high temperature reflow soldering process

 9. Protect bottom side SMT components during the wave soldering process

 10Standardized the width of the production lines, eliminate the width adjustment of the production line.
