table top hot sale soldering for pcb fpc
- 200 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CHUANGWEI | Model Number: | CWPP-1A |
Product Description

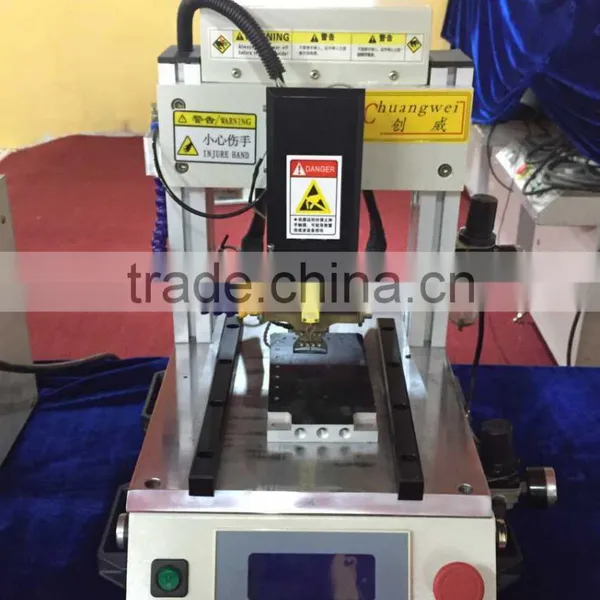

table top hot sale soldering for pcb fpc
table top hot sale soldering for pcb fpc
table top hot sale soldering for pcb fpc
Specifications for table top hot sale soldering for pcb fpc
Chuangwei pcb fpcHot Bar Soldering solder
1.use pulse heat with linear guide moving
2,apply to TAB,TCP,ACA and FPC,FFC,PCB etc.
Chuangwei table top hot sale soldering for pcb fpc
1.use pulse heat with linear guide moving
2,apply to TAB,TCP,ACA and FPC,FFC,PCB etc.
Chuangwei table top hot sale soldering for pcb fpc
Technology parameters
Model | CWPP-1A |
Max. Working Area | 200mm X 260mm |
Fixture | 1 set |
working air pressure | 0.45-0.7Mpa |
Temperature setting | 20-500°C |
Temperature precision | ±2°C |
hot-pressing time | 1-99 s |
force head pressure | 0.1-0.6 MPa |
pressure Precision | ±0.05 MPa |
Size | 620mm X 690mm X 570mm |
Weight | 90Kg |
momentary welding Power/ voltage | 2000W / 110V/220V |
Chuangwei table top hot sale soldering for pcb fpc :
1.Closed Loop PID temperature control with visible LED display
2.LCD display programmable pressure switch for precise force control
3.Each heating cycle is triggered by a real time pressure sensor
4.Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5.Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6.Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7.Parts registration is adjusted by micrometer and secured by vacuum
lock
8.Optional CCD system for fine pitch component
table top hot sale soldering for pcb fpc
certificate:
Contact Us
- Dongguan Chuangwei Electronic Equipment Manufactory
- Contact nameAlan Cao
- Phone86-769-89990229
- AddressNo.8 Kangxiang East Street,Yongtou Village,Changan Town,Dongguan City,Guangdong Province ,China Dongguan,Guangdong
