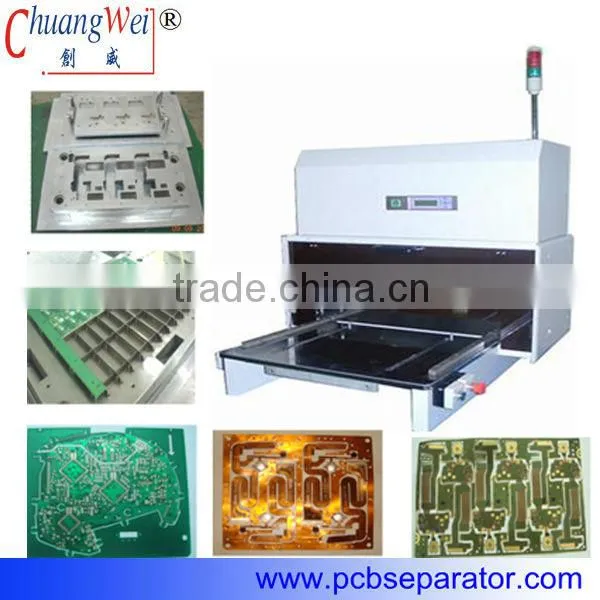

PCB punching tool
1.high degree of automation,high efficiency,simple operation
2.can replace multiple mold for production and mold changing easily
PCB punching tool specifications:
| Model | CWPL |
| Punch Contribute (T) | 8 |
| Working area (mm) | 460*320 |
| Voltage | 110/220V |
| Working air pressure | 0.5-0.7Mpa |
| Size (mm) | 930*880*1230 |
| Weight (kg) | 680 |
In addition:
| Model | CWPM |
| Punch Contribute (T) | 8 |
| Working area (mm) | 330*220 |
| Voltage | 110/220V |
| Working air pressure | 0.5-0.7Mpa |
| Size (mm) | 800x730x1230 |
| Weight (kg) | 580 |
PCB punching tool features:
1.high degree of automation, simple operation and safety
2.can replace a variety of mold, and mold changing easily
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer
4.make internal stress generated by PCB cutting to minimize and avoid stress cracking of tin
5.punching cutting semi-finished PCB, FPC with high efficiency

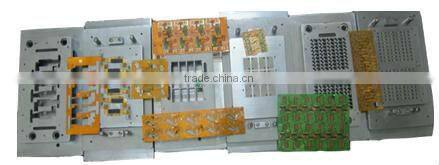

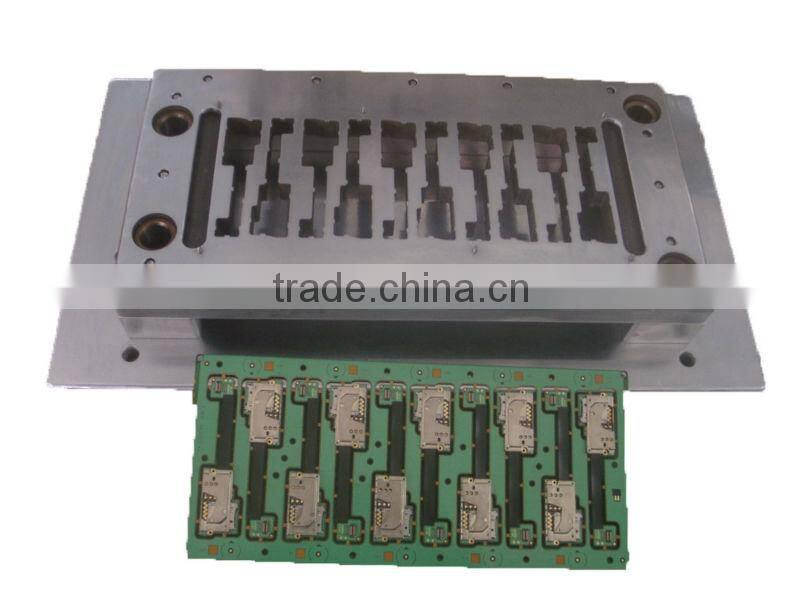

6.mold and die can be made according to customer's request
*** PCB punching tool operation video please see below: (CWPL)***
/watch?v=kROA6AKUYSw&feature=youtu.be
***Chuangwei PCB punching tool ***
***From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kind PCB cutting machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB cutting machine base your actual requires.
***PCB cutting machine mainly applies to cut various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB,Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.
***Chuangwei PCB punching tool ***
Products List:

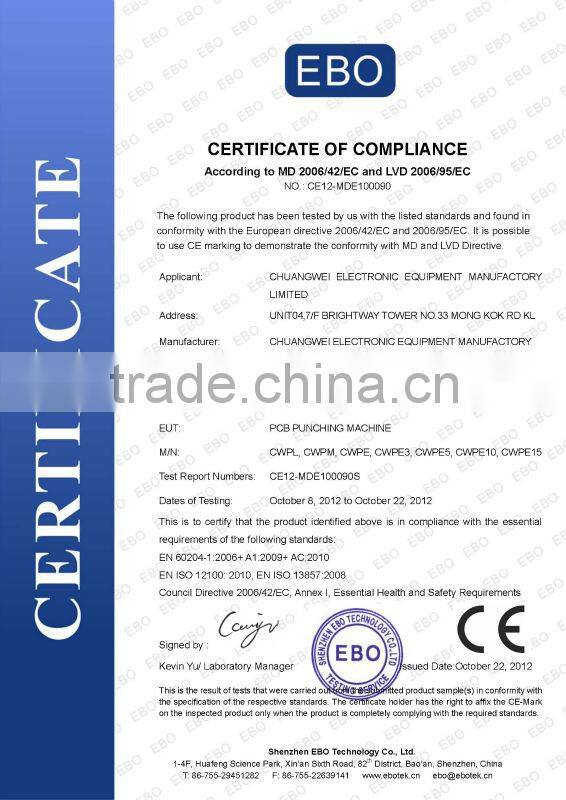

CE Certificate:
***Any interest please contact us freely.
***Chuangwei PCB punching tool***
