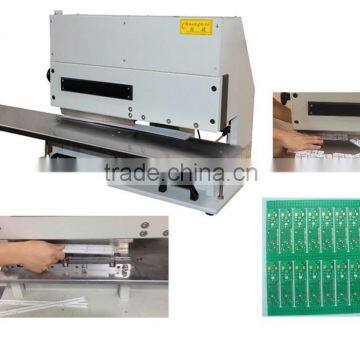

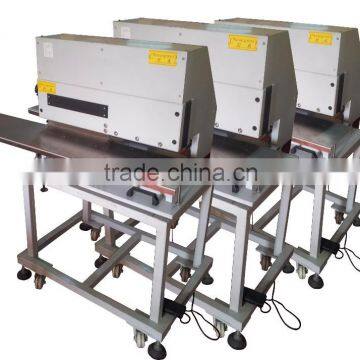

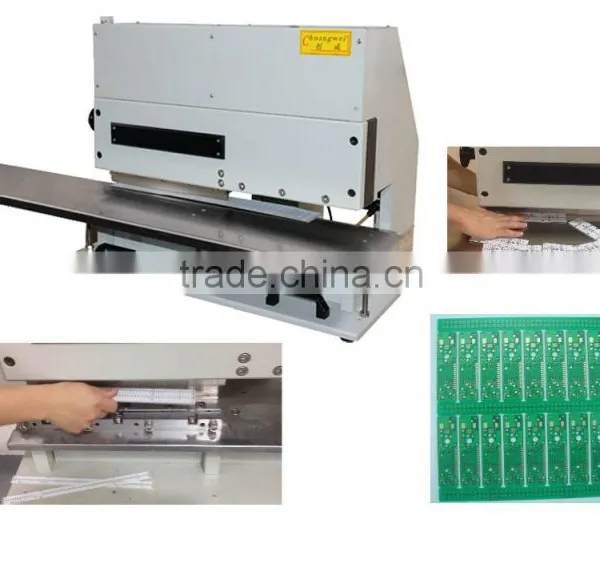

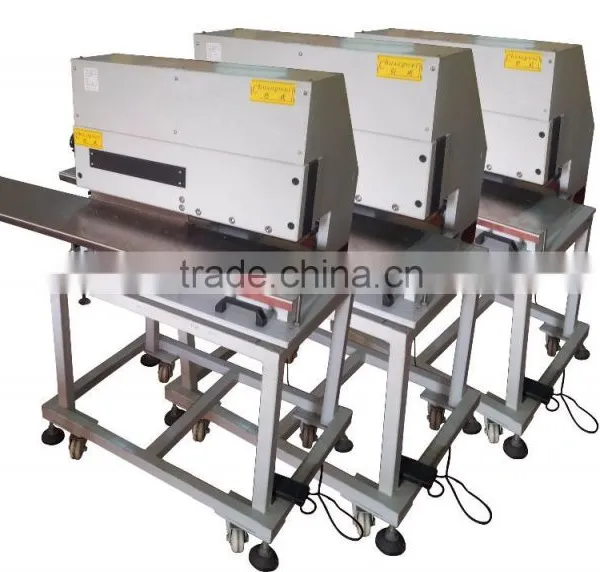

LED aluminium PCB depaneling machine CWVC-3
1.Max. PCB depaneling length is unlimted
2.Depaneling PCB without bending and tension stress
3.Safety use, easy operation
4.Depaneling process without vibrations
V-CUT PCB depaneling machine specifications:
| Model | CWVC-3 |
| Max. PCB depaneling length | unlimited |
| PCB depaneling thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB depaneling machine size | 780x500x620mm |
| PCB depaneling machine weight | 185Kg |
V-CUT PCB depaneling machine features:
1.The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.
3.Depaneling process without vibrations.
4.PCB depaneling control method is by pneumatic-driven and electromagnetic valve.
5.PCB control operation is that operator stamps the foot pedal to depanel PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust
Video for CWVC-3
/watch?v=313h1CQYz9w&feature=youtu.be
/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
/v_show/id_XNTkxMTU0MDAw.html
Company information :
From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB depaneling machine base your actual requires.
PCB depaneling machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
Any interest please contact us freely.
Chuangwei PCB depaneling machine
ChuangWei more related PCB depaneling machine:
ChuangWei PCB depaneling machine CE Certificate:
Any interest please contact us freely.
Chuangwei PCB depaneling machine
**************************************************
Contacts: Miss Cathy
TEl: 86-769-89990229
Mobile: 86-13430460768
Website:
Company: Dongguan Chuangwei Electronic Equipment Manufactory
***************************************************
