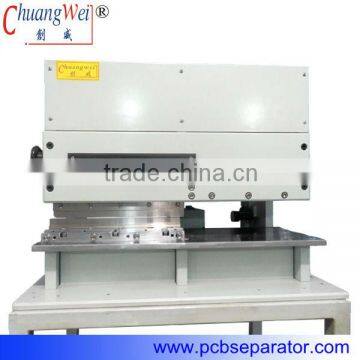

off-cut pcb separator machine for computer monitor pcb
1.Max. PCB depaneling length is unlimted
2.Depaneling PCB without bending and tension stress
3.Safety use, easy operation
4.Depaneling process without vibrations

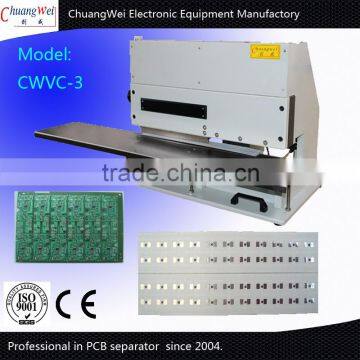

V-CUT PCB separator machine specifications:
| Model | CWVC-3 |
| Max. PCB depaneling length | unlimited |
| PCB depaneling thickness | 0.3-3.5mm |
| PCB depaneling speed | by operator skilled level |
| Voltage | 110/220V |
| PCB depaneling machine size | 780x500x620mm |
| PCB depaneling machine weight | 185Kg |
V-CUT PCB separator machine features:
1.The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.
3.Depaneling process without vibrations
4.PCB depaneling control method is by pneumatic-driven and electromagnetic valve
5.PCB control operation is that operator stamps the foot pedal to depanel PCB
6.Highest components near the v groove of PCB can be up to 50mm
7.Gap for insertion of PCB can be easy to adjust
V-CUT PCB separator machine operation video please see below: (CWVC-3)
/watch?v=313h1CQYz9w&feature=youtu.be
/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
Chuangwei PCB separator machine
From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB depaneling machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
Any interest please contact us freely.
Chuangwei PCB depaneling machine
Products List:
CE Certificate:
V-CUT PCB depaneling machine operation video please see below: (CWVC-3)
/watch?v=313h1CQYz9w&feature=youtu.be
/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
Any interest please contact us freely.
Chuangwei PCB depaneling machine
