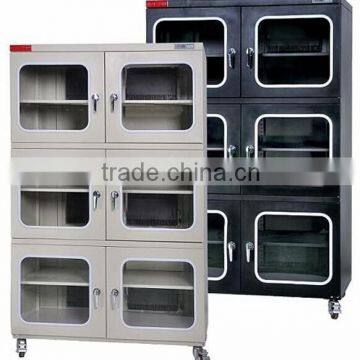

Dehumidifier dry box with 1-60%RH
CWDC-334 dry cabinet is equipped with a precise LED control, which has ±3%RH precision tolerance. It is especially designed with adjustable humidity control 1~50%RH to prevent any kinds of moisture damages. This cabinet is the perfect storage for SMT/BGA/PCB/LED components. The newly innovated design greatly increases dehumidifying system, it runs faster and much more powerful compare to those of traditional ones, it decreases the defective rate at production line at the same time.
Specifications: dry cabinet
Humidity Range: 1%~50%RH dry cabinet
External Dimension: W905×H1050×D475mm
Internal Dimension: W903×H869×D425mm
Capacity: 334L
Shelves: 3 shelves
Color: white
Voltage: 110V/230V (please advice your voltage when placing orders)
Display Precision Tolerance: ±1°C, ±3%RH
Cabinet Structure: 1mm thickness carbon steel
Doors/windows: Handles, airtight magnetic sealers and temper glass.
Wheels: 4 antistatic 3” wheels, 2 of them with brakes.
Power Consumption: Ave. 25Wh; Max. 145W
| Dry cabinet for Moisture Sensitive Materials | Best Storage Condition (%RH) |
| Cameras, Lens, Telescopes, Microscopes, Memory Cards, Films, Projector, Slides, Photographs, Documents, DVDs, Paintings, Antiques, Albums, Currency Collection, Optoelectronics Parts, Leather, Jewelry , etc. | 40~50%RH |
| Sensitive Electronic Instruments, Electronic Devices, Measuring Devices, Semiconductors, Capacitor, Battery, Sensors, Wafer, IC, PCB, etc. | 30~40%RH |
| Precious Machine, Medicine, Samples, Seeds, Pollen, Dried Flowers, Spices, Tea, Coffee, Snacks, Dried Food Products, etc. | 20~30%RH |
| Special Chemicals, Electronic Components, MSD, etc. | 1~15%RH |
2. Applications
SUPER DRY maintains preset internal humidity levels from <3~50%RH and is ideal for moisture-proof and anti-oxidation storage applications, offering protection from corrosion, mold and deterioration for such items as:
* All kinds of Integrated Circuits (IC), like Monolithic, BGA, QFP; PLCC, Bipolar etc.
* Silicon Wafers.
* Aerospace related Instruments and Tools.
* Optical Equipment and Machine Tools.
* Watches.
* PDP Inspection Equipment, Liquid Crystal Cleaning Equipment, LCD’s, TAC’s etc.
* LED’s and LD’s.
Detail Show
Humidity in the air may have negative effect on the operation of any precision instruments and equipment.Yunboshi dry cabinet can be used to store these instruments and equipments,such as:camera,optic lens, microscope,microbalance,and medical apparatus.It also can be used to store power.seeds,reagant,testing materials for best effect,Immediately dehumidify and dustless, fit to normal environmrnt and dustless room.
