Specifications
Fine Impact Crusher1.AAA grade reputable enterprise
2.Homogeneous granularity
3.Capacity:15-350 t/h
4.ISO 9001:2008, TUV
2013 Hot selling Fine Impact Crusher with 15-350t/h
1.Application------Fine Impact Crusher:
Impact crusher is always used to crush/fragment rock/ore and other raw material, such as iron/copper ore, limestone, calcium carbonate, talc, granite, basalt and so on, especially for stones with compressive strength more than 150Mpa.

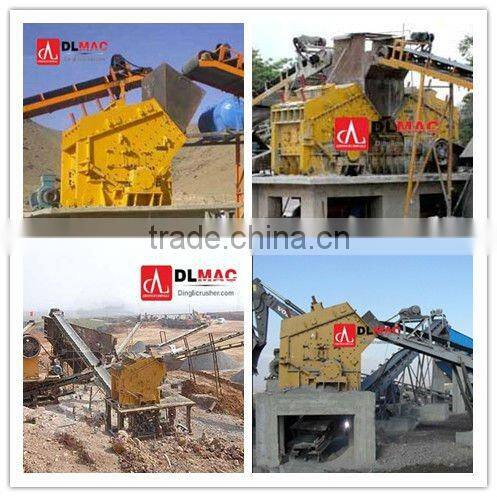

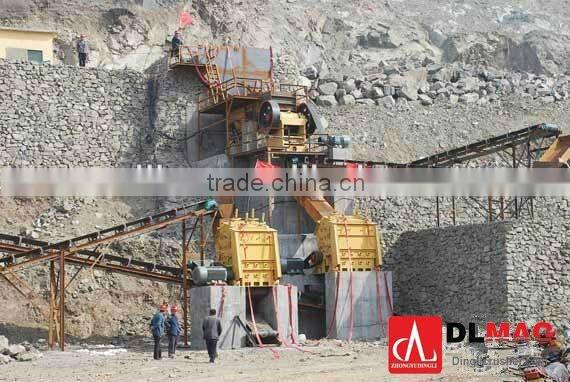

2. Project case------Fine Impact Crusher:
Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home
and abroad.
We have established cooperation relationship with many universities to update technology and meet various needs
from our customers.

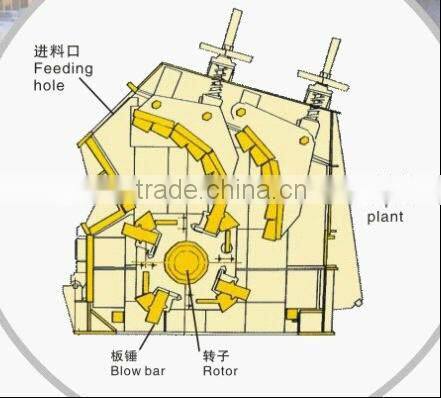

3.Working principle------Fine Impact Crusher:
1. During the operation ,driven by the motor ,the rotor will proceed a high speed and the materials will bump into the hammer plate installed on the rotors when the materials enter the impact cavity ,which will form the first crushing.
2. And then the materials will be thrown out to the impact plate and form the second bump and crushing .
3. Along with the materials’ falling down ,they will be repeatedly thrown out to the first ,second, and third impact plate ,which will form several bumps and crushing in the impact cavity ,thus achieving the required size and be discharged from the discharge opening .So that’s the complete crushing process.
4.Advantages------Fine Impact Crusher:
1. The impact crusher with Big feed head,high stave cavity,high adaptation material degree of hardness,big block,few product stone powder.
2. The impact board and the board hammer gap can be facilitatly adjusted, the controlment material granularity is active, the grain shape is good.
3. The structure of the impact crusher is compact, the machine rigidity is strong, the rotor has the big rotation inertia.
4. High chrome hammer is anti-impact, anti-attrition,the impulse is big.
5. No keying, the overhaul is convenient,the economy is reliable.
6. Entire stave funtion ,high productivity,slightly parts wears and tears,high combined earings.
5.Specification------Fine Impact Crusher:
| Types |
Rotor Diameters*length |
Feeding size(mm) |
Raw material size(mm) |
Capacity(t/h) |
Motor power (kw) |
Theoretical weight(t) |
Dimensions L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| PF-1007 | 1000×700 | 400×730 | 250 | 15-60 | 37-55 | 9.5 | 2330×1660×2300 |
| PF-1010 | 1000×1050 | 400×1080 | 300 | 50-90 | 55-75 | 14 | 2370×1700×2390 |
| PF-1210 | 1250×1050 | 400×1080 | 300 | 60-120 | 95-110 | 17 | 2580×2080×2750 |
| PF-1214 | 1250×1400 | 400×1430 | 300 | 130-180 | 132-170 | 22 | 2690×2360×2750 |
| PF-1315 | 1325×1500 | 860×1520 | 350 | 160-250 | 180-260 | 26 | 2890×2680×3090 |
| PF-1320 | 1320×2000 | 860×2030 | 500 | 160-350 | 300-375 | 30 | 2870×3350×3090 |
Note: The parameters of impact crusher are just for reference. These three are the common products, and we can produce the machine according to the special requirements of clients.
6.Service:
1. We can supply the professional installation technician and workers; we have more than 300 technician and workers ready to install the machines for you.
2. We can supply the professional training and even we can arrange workers to help you operate the machines.
