Specifications
Vertical Shaft Impact Crusher1.Mouth: <200mm
2.Production size: <5mm(more than 90%)
3.Capacity: 40-100t/h
4.ISO 9001:2008

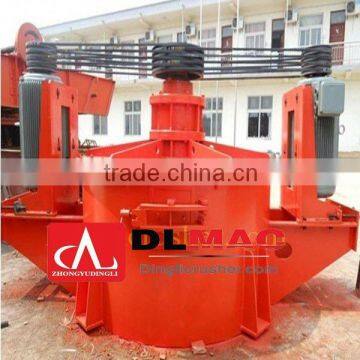

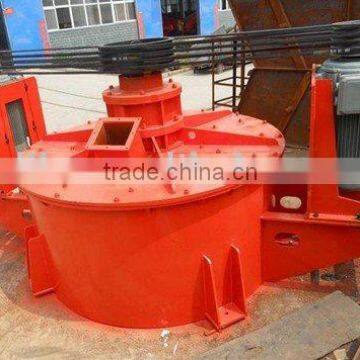

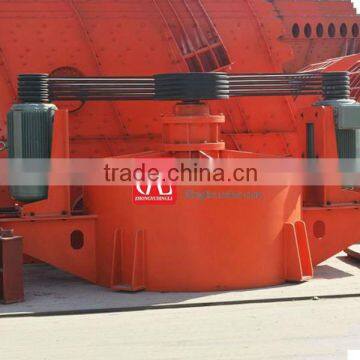

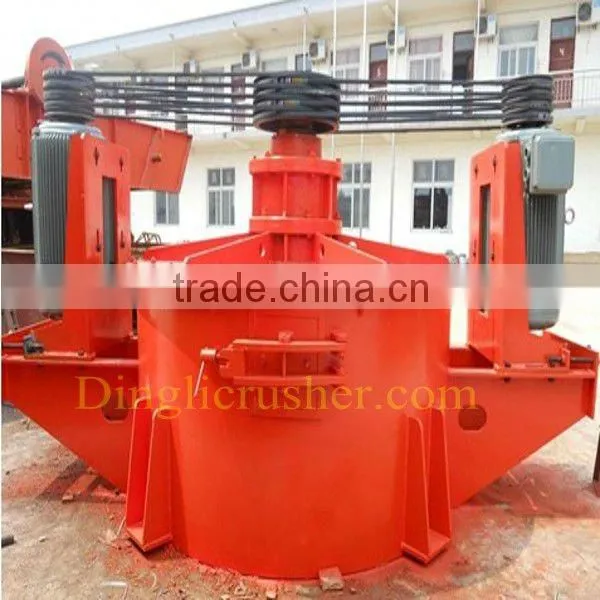

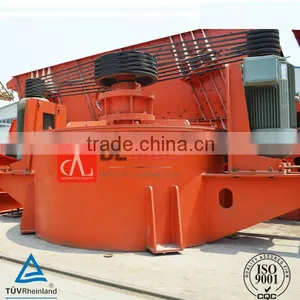

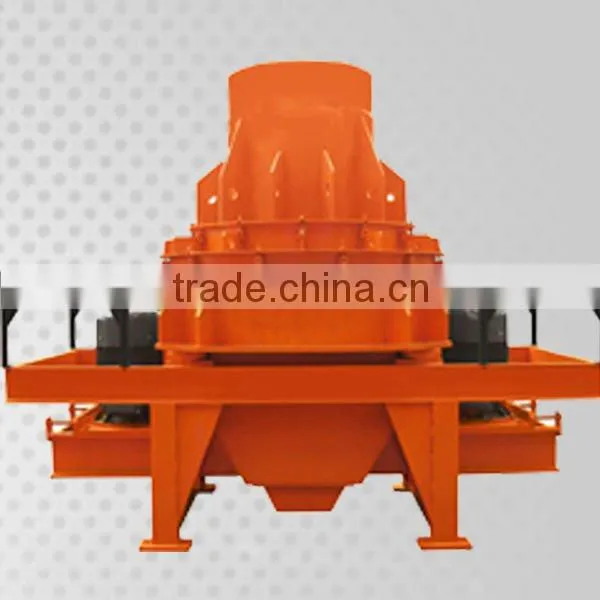

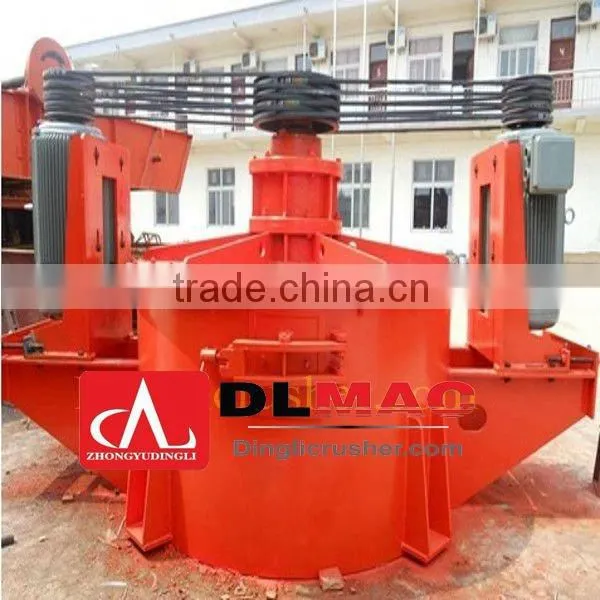

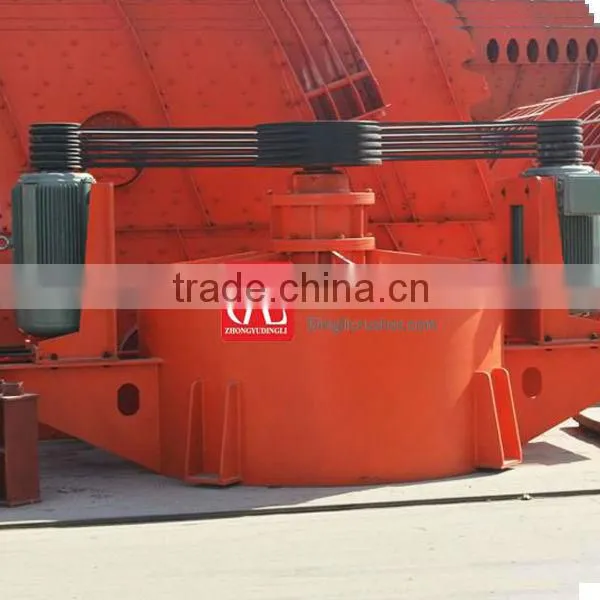

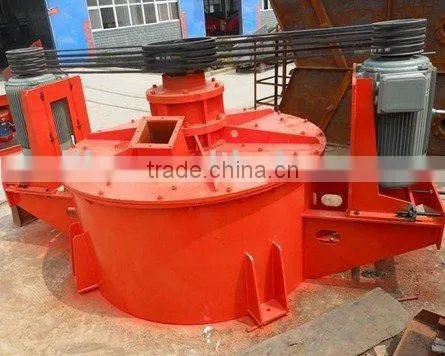

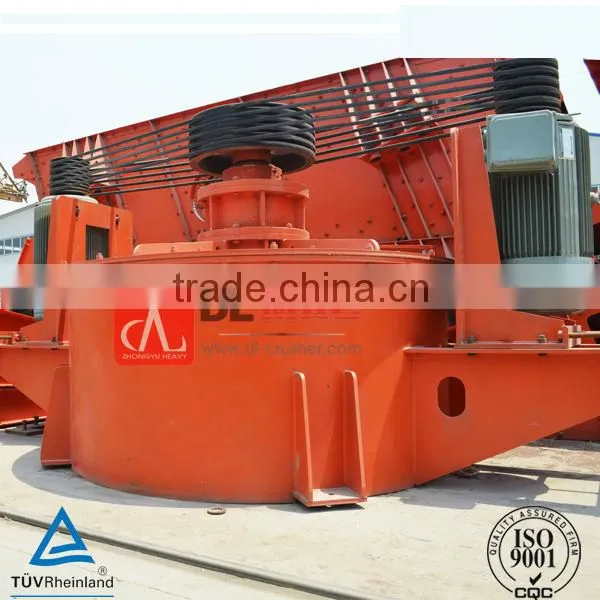

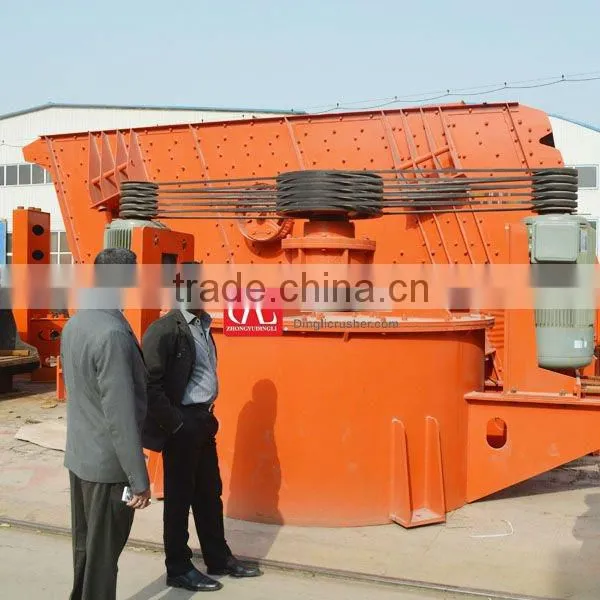

China New Design vertical shaft impact crusher from Dingli
1.Application of vertical shaft impact crusher:
Dingli Vertical Shaft Impact Crusher is widely used for making various mines, such as cement, fire-proof materials, aluminum soil, emery, glass raw materials, building sand, stone materials, and metallurgical slag.

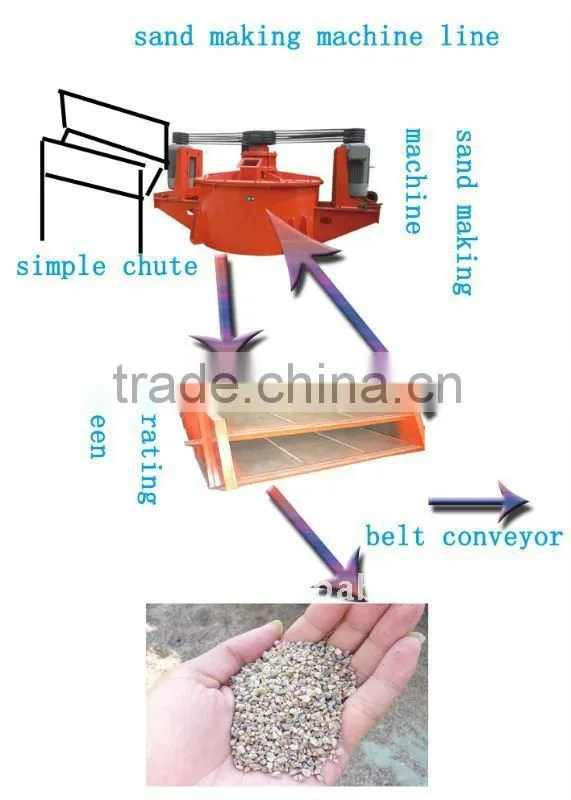

Sand making machine is especially efficient to crush harder and causticity materials, such as carborundum, emery, and magnesium sand.
2.Advantages of vertical shaft impact crusher:
1. Advanced double-pump oil lubrication system guarantee shaft bearing lower temperature increase, longer life time, more reliable operation.
2. Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increase productivity.
3. Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
4. Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
5. Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.
6. Special feed opening structure make it possible that center feeding and ring feeding comes together, in order to meet requirement of different stones. In addition, this equipment can not only crush stone, but also iron.
7. Shape of material-through device is better designed, which improve the utilization ratio.
3.Technical Parameter of vertical shaft impact crusher:
Model |
Rotor Diameter |
Rotor Speed |
Max Feed Size |
Output Size |
Capacity |
Motor Power |
Weight |
Overall Dimension |
(mm) |
(r/min) |
(mm) |
(mm) |
(T/h) |
(KW) |
(T) |
(mm) |
|
PLF2600 |
2600 |
300 |
200 |
5-8 |
40-100 |
2*(75-160) |
17 |
4560*1660*2820 |
ZSJ Sand Making Machine Specifications
Model |
Max Feed Size |
Power |
Output Size |
Capacity |
Weight |
Overall Dimension |
(mm) |
(KW) |
(mm) |
(T/h) |
(T) |
(mm) |
|
ZSJ0808 |
150 |
2*55 |
0-10 |
20-50 |
5.85 |
5500*1843*1600 |
4.About us
Xinxiang dingli mining equipment company established in 2003 and have over 20 years' experience in stone proccesing line
we major in jaw cusher, patented hammer crusher, cone crusher, impact crusher vibrating screen and feeder, drilling rig, impactor and so on
5. Service
1. We can supply the professional installation technician and workers; we have more than 300 technician and workers ready to install the machines for you.
2. We can supply the professional training and even we can arrange workers to help you operate the
machine.
