Specifications
impact crusher:1)capacity:15-350t/h
2)max feed size:250-500mm
3)even granularity for concrete
4)ISO9001,TUV Certified
Company introduction
Xinxiang dingli mining equipment company established in 2003 and have over 20 years' experience in stone processing line.
we major in jaw cusher, patented hammer crusher, cone crusher, impact crusher, vibrating screen and feeder, drilling rig, impactor and so on.

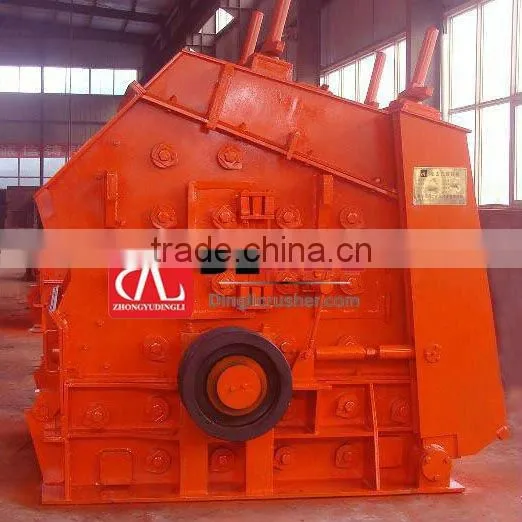

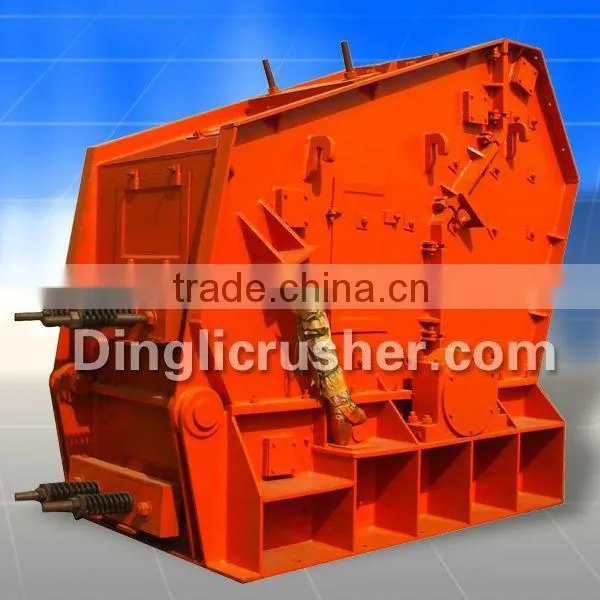

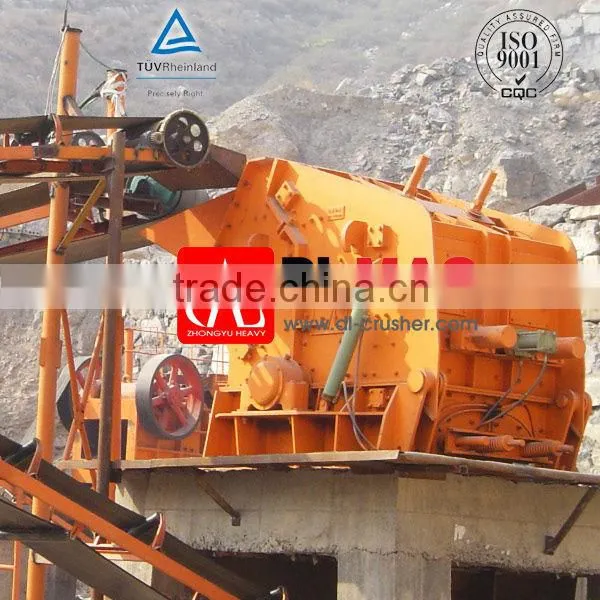

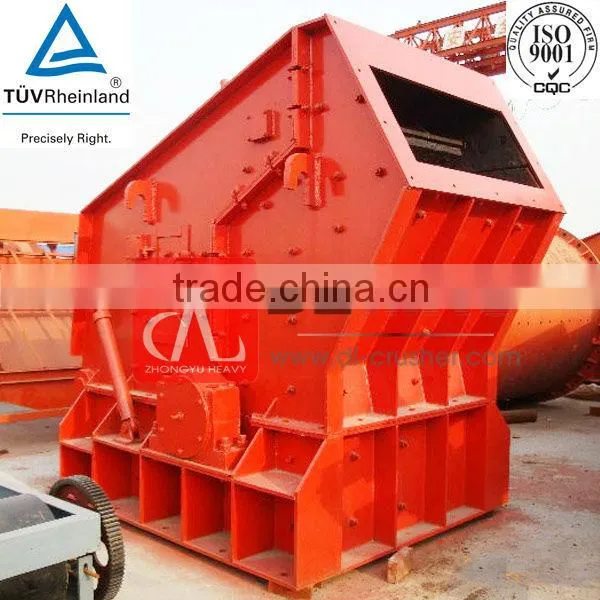

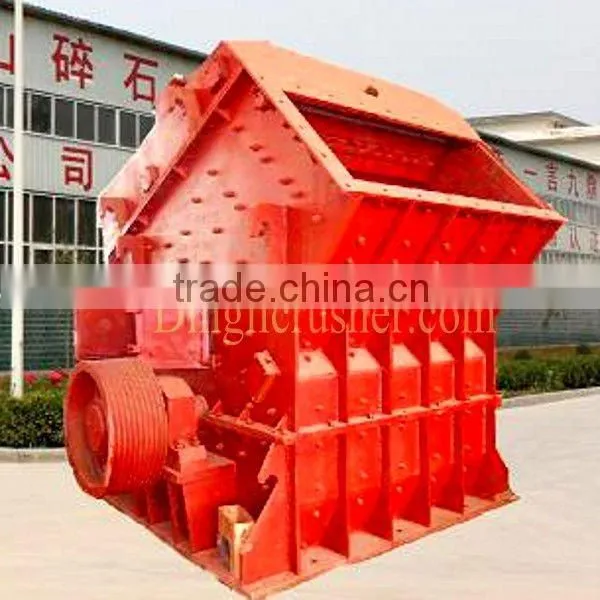

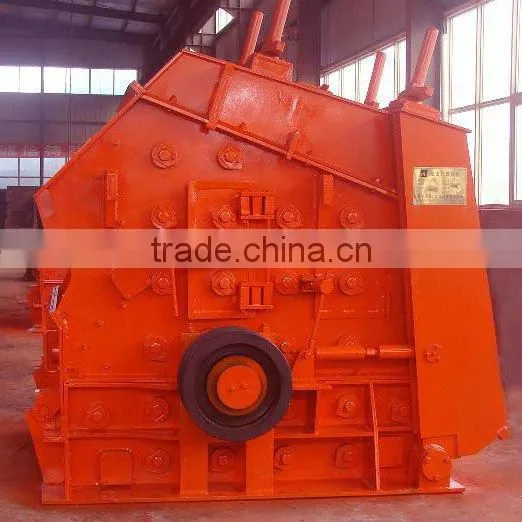

15-350t/h capacity China leading manufactrue impact crusher

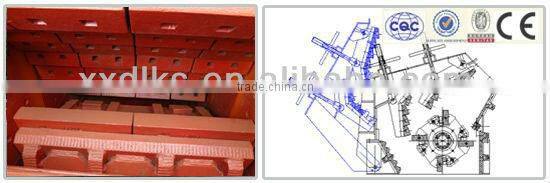

♥ Working Principle of impact crusher:
This impact crushes materials with impact force.
When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush.
Then the materials will be shot back to the blow bar again for the third crush.
This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine.
The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.

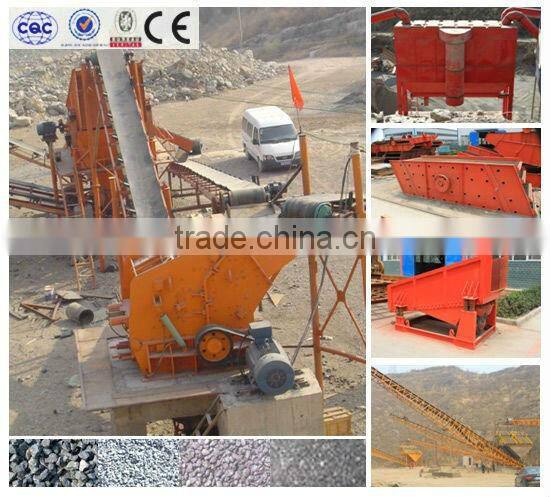

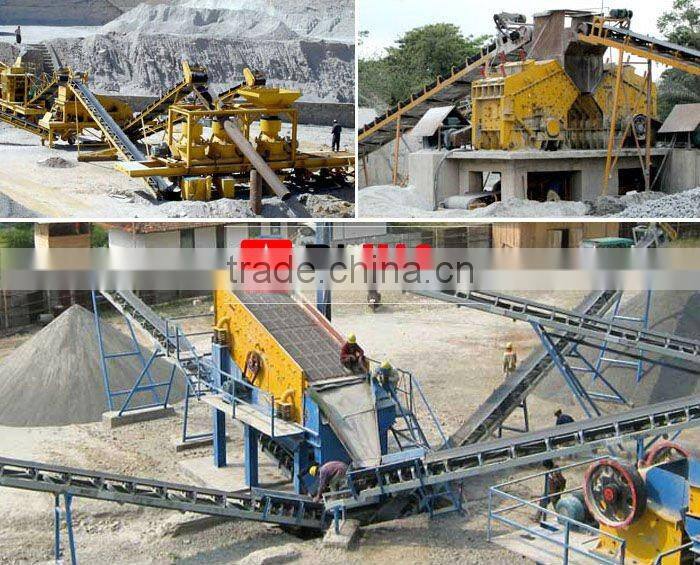

♥ Application of impact crusher:
1.The impact crusher is used for crushing various rocks, constructing railway, expressway roadbed
and dam area of power station, producing artificial dinas for the building industry, etc.
2.It is used to crush coarse, medium and fine stones whose compressive strength is no more than
300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite,
concrete, slag, cement block, etc.

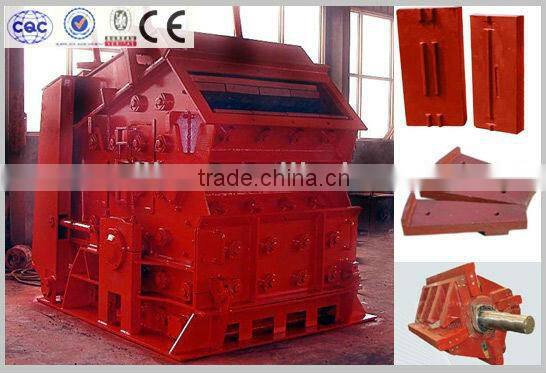

♥ Descriptions of impct crusher:
It is famous for its superior performance, steadily working and longer working life.
Subject to advance technology, results and customers’ feedbacks and abundant experience in the crushing industry, we design and produce PF series impact crushers with high efficiency and good performance.
It is always matched with jaw crusher or hammer crusher as the secondary procedure.
♥ Advantages of impact crusher:
1. The impact crusher with Big feed head,high stave cavity,high adaptation material degree of hardness,big block,few product stone powder.
2. The impact board and the board hammer gap can be facilitatly adjusted, the controlment material granularity is active, the grain shape is good.
3. The structure of the impact crusher is compact, the machine rigidity is strong, the rotor has the big rotation inertia.
4. High chrome hammer is anti-impact, anti-attrition,the impulse is big.
5. No keying, the overhaul is convenient,the economy is reliable.
6. Entire stave funtion ,high productivity,slightly parts wears and tears,high combined earings.
♥ Packaging & Delivery of impact crusher:
Packaging Detail: standard export
Delivery Detail: 25 days
♥ Technical Parameters of impact crusher:
| Types |
Rotor diameters*length |
Feeding size (mm) |
Raw material size(mm)
|
Capacity (t/h) |
Motor power (kw) |
Theretical weight(t) |
Dimensions L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| PF-1007 | 1000×700 | 400×730 | 250 | 15-60 | 37-55 | 9.5 | 2330×1660×2300 |
| PF-1010 | 1000×1050 | 400×1080 | 300 | 50-90 | 55-75 | 14 | 2370×1700×2390 |
| PF-1210 | 1250×1050 | 400×1080 | 300 | 60-120 | 95-110 | 17 | 2580×2080×2750 |
| PF-1214 | 1250×1400 | 400×1430 | 300 | 130-180 | 132-170 | 22 | 2690×2360×2750 |
| PF-1315 | 1325×1500 | 860×1520 | 350 | 160-250 | 180-260 | 26 | 2890×2680×3090 |
| PF-1320 | 1320×2000 | 860×2030 | 500 | 160-350 | 300-375 | 30 | 2870×3350×3090 |
Note: This specification is just for reference.
♥ Do not hesitate send us inquiry for more details about the impact crusher. ♥
