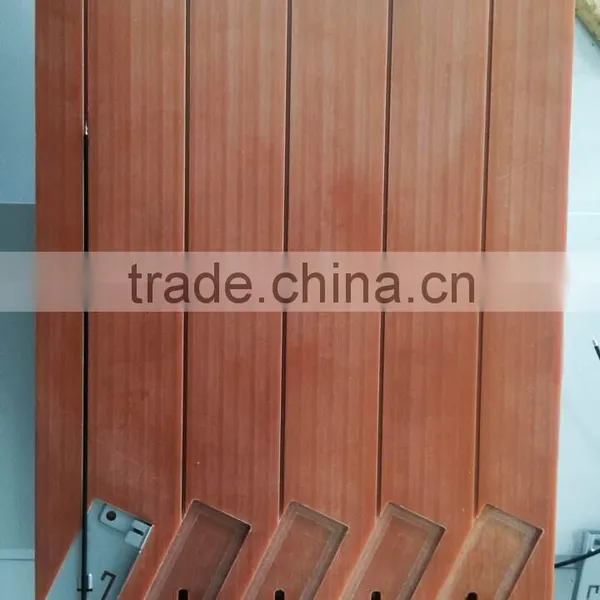

wave solder pallets conformal coated fixture

wave solder pallets conformal coated fixture

Features and Benefits

Wave solder pallets offer many advantages to the cost conscious Process Engineer. These advantages can usually pay back in a few weeks with cost savings and improved yields. By deploying a double reflow process, you can maximize your yields through the wave solder process.

Other advantages are:

1  Eliminate flooding by masking open areas and preventing board sag.
2  Reduce second hand load parts and hand soldering.
3  Save thousands of dollars in Kapton tape and the labor to add and remove.
4  The composite materials thermally protect bottom side SMD’s from shock.
5  Mask BGA vias from the wave ensuring reliable solder joints.
6   Lead Free grade optical material for higher temperatures

Specification for wave soldering pallets :

Our goal is to design and build a solution that will give you:

1. Highest yields with the largest process window possible.
2. Easy to use tooling that will survive your manufacturing environment.
3. Fastest delivery times possible.
