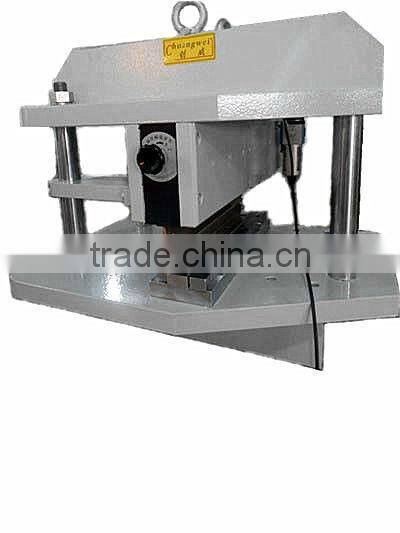

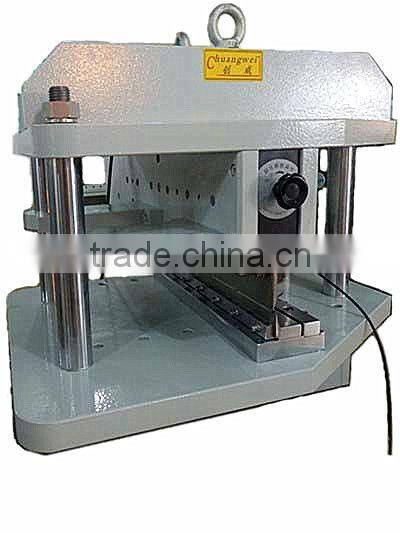

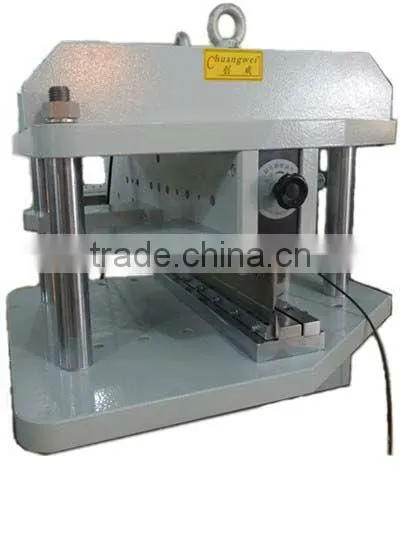

Help CenterV-cut Pcb Depaneling Machine Made in Dongguan
Related Products
-
FR4 Pcb Depaneling Machine With CE Certificate CWVC-1US$ 1,000 - 1,500MOQ: 1 Set -
600mm PCB Separator MachineUS$ 1 - 5,000MOQ: 1 Set
-
Pcb Separating Machine New Launch MachineUS$ 1 - 3MOQ: 1 Set
-
V-cut Pcb Depaneling Machine New ProductUS$ 1 - 3MOQ: 1 Set
-
CAB Separator Machine for PcbUS$ 1 - 5MOQ: 1 Set
Specification:
| Model | CWVC-450 |
| The Longest Minimize (mm) | Unlimited |
| PCB/Aluminum board Thickness (mm) | 0.1~6 |
| Power Supply (v) | 110/220 |
| Size (mm) | 900*760*750 |
| Contribute (Tone) | 20 |
| Weight (Kg) | 475 |
| Min. Order (Set) | 1 |
| Guarantee (Year) | 1 |
| Delivery (Day) | 1 |
| Ability (Set) | 1000 |
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board) and aluminum board
4. Mold make of SKD-11 steel, blade is SKD-9(From Japan), rigorous job!!!!
Feature:
Aluminum cutting (CWVC-450)
1. Cutting any length metal board easily.
2. Separates long boards directly, without turn direction .
3. Contribute up to 20 tone, separates boards up to 6.0mm thickness aluminumboard
4. Stable job, shears boards safely with parts as close as 1 mm to the
score line, including ceramic capacitors, stress less than 500.
5. Operator foolproof! Panels cannot be inserted into the
knives except on the score line
6. Handles high components up to 50mm
7. Bow waves that can occur with round knives are avoided
8. Easy adjusting of distance between knives
Our Advantage:
1. CWVC-1 Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker, we get Experts--15,each one got over 6 years experience, equipment quality will be satisfying.
6.We focus on good quality like people chasing the beauty
