pcb v-cut machine for Power Supply Industry
- 500 Set / Sets per Month
- SHENZHEN/HONGKONG
- T/T
- 2-Axis North-Seeking MEMS Gyro
- High Precision Navigation MEMS Gyroscope
- iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
- iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
- GT-RS368 resistance coil maxhine for coil with big in the middle small in both end heating and cooling companies
- High Performance Navigation Grade MEMS Gyroscope
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ChuangWei | Model Number: | CWVC-1SJ |
Product Description

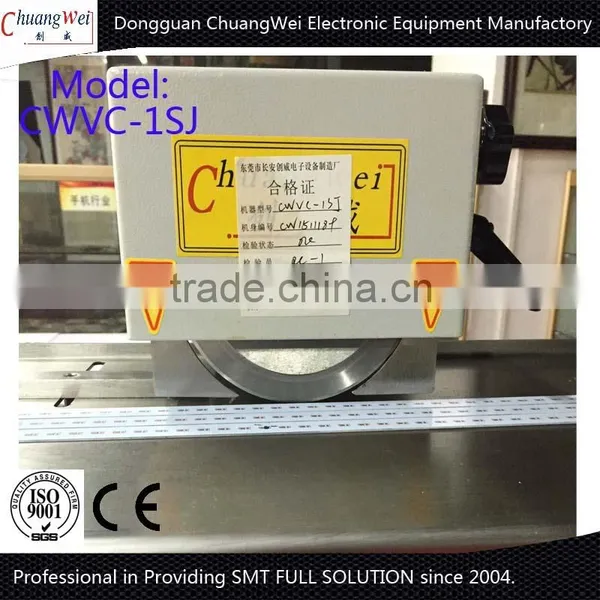

Chuangwei motor-driven V-CUT PCB depaneling machine
1.Max. PCB depaneling length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use
5.Staff allocated: one person hold PCB with both hands and feed between the circular blades for separation,fix position on pre-scored groove
Chuangwei motor-driven V-CUT PCB depaneling machine specifications:
Model | CWVC-1SJ |
Max. PCB depaneling length | unlimited |
PCB depaneling thickness | 1.0-3.5mm |
Blade amount | up and down 2 circular blades |
PCB depaneling mode | down circular blade with motor-driven |
PCB depaneling speed | 0~400mm/s |
Voltage and Power | 110/220V 60W |
Machine Size | 420X 280 X 400mm |
Machine Weight | 25Kg |
workbench | optional(can make different length according to your panel) |
Chuangwei motor-driven V-CUT PCB depaneling machine features :
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
*** PCB depaneling machine video please see below: ***
/watch?v=ssiEW4hqQxo
***Chuangwei PCB depaneling machine***
*From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
*You can depend on your company's condition and choose the most suitable one.
*Also We can manufacture PCB depaneling machine base your actual requires. (any shape,length,thickness of PCB,aluminiun PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
*Any interest please contact us freely.
***Chuangwei PCB depaneling machine***
pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine
seaworthy plywood case,safe, no need to fumigated (free):
pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine
Products List:
pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine pcb v-cut machine
CE Certificate:
***Chuangwei PCB depaneling machine***
*From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
*You can depend on your company's condition and choose the most suitable one.
*Also We can manufacture PCB depaneling machine base your actual requires. (any shape,length,thickness of PCB,aluminiun PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
*Any interest please contact us freely.
***Chuangwei PCB depaneling machine***
