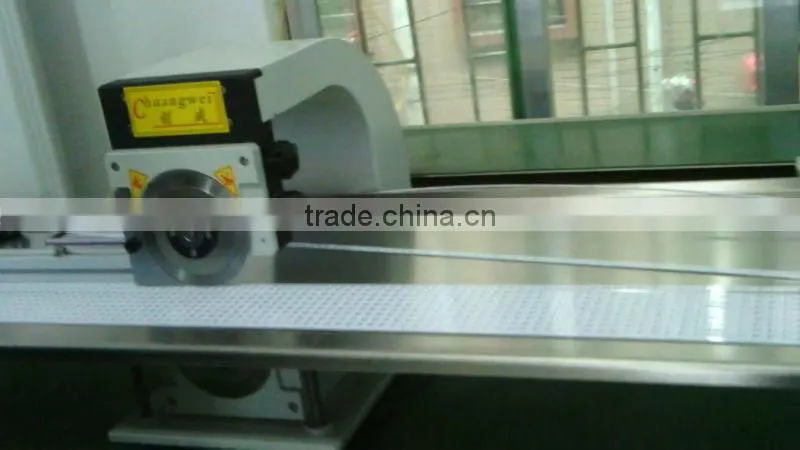

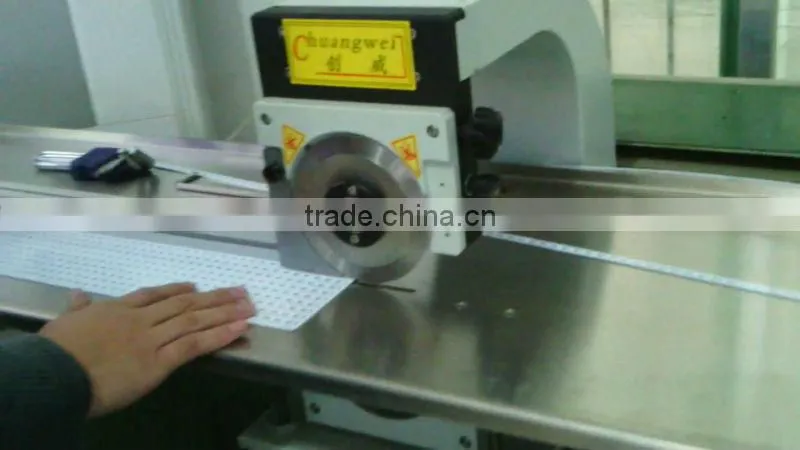

V-CUT PCB cutting machine
1.Max. PCB cutting length is unlimited
2.Price is very economical
3.Low bending stress,no vibration
4. Easy maintanance and operation
5. Blade can be re-grinded to use

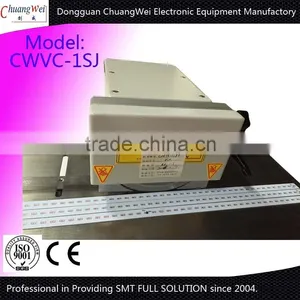

Chuangwei motor-driven V-CUT PCB separator specifications:
| Model | CWVC-1SJ |
| Max. PCB cutting length | unlimited |
| PCB cutting thickness | 1.0-3.5mm |
| Blade amount | upper and bottom 2 circular blades |
| PCB cutting operation mode | bottom circular blade with motor-driven |
| PCB cutting speed | 0~400mm/s |
| Voltage and Power | 110/220 V 60W |
| PCB cutting size | 420X 280 X 400mm |
| PCB cutting weight | 25Kg |
| Workbench | optional(can make different length according to your board) |

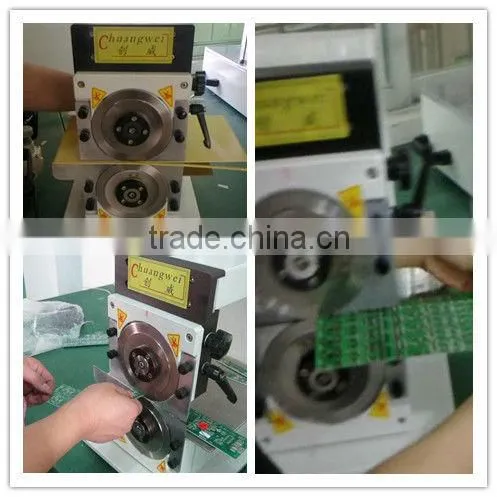

| Staff allocated | one person hold PCB and feed between the circular blades for separation,fix position on pre-scored V groove |

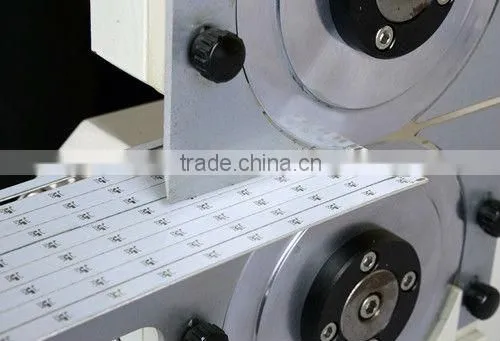

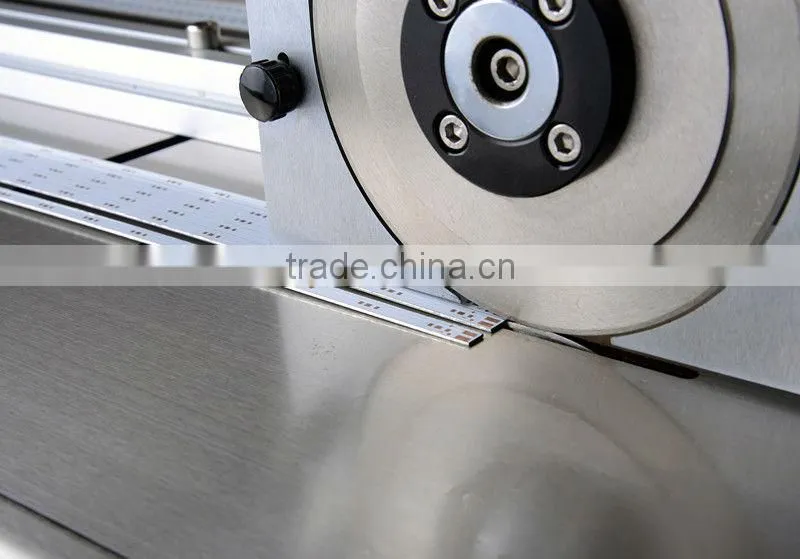

Chuangwei motor-driven V-CUT PCB cutting machine features :
1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.
*** V-CUT PCB cutting machine video please see below: (CWVC-1S) ***
/watch?v=ssiEW4hqQxo
/watch?v=fVAAbnoTiEE
/watch?v=6gicMqGBra8
***Chuangwei PCB cutting machine***
***From 2004 we started to development,manufacture,sale,service for PCB cutting machine, until now,we have produced different kinds machine about manual/motor-driven/pneumatic-driven/mold punching/milling cutter router.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB cutting machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)
***Any interest please contact us freely.
***Chuangwei PCB cutting machine***
seaworthy plywood case,safe, no need to fumigated (free):

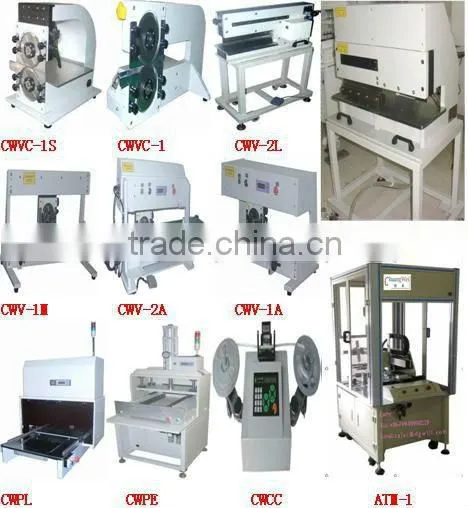

Products List:

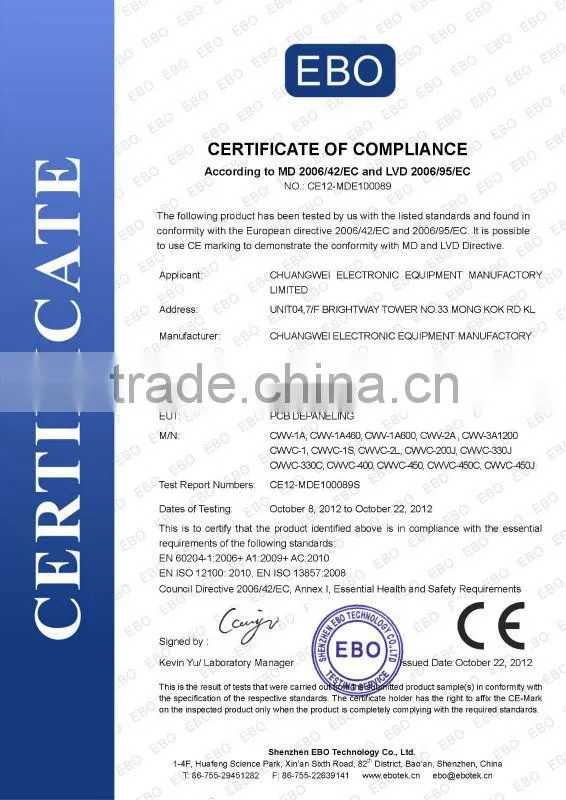

CE Certificate:
***Any interest please contact us freely.
***Chuangwei PCB cutting machine***
